3.11 External EMC filter
The external EMC filters for sizes 5 to 6 can be footprint or bookcase mounted as shown below.
3.11.1 Optional external EMC filters
Table 3-6 EMC filter cross reference
3.11.2 EMC filter ratings
Table 3-7 Optional external EMC filter details

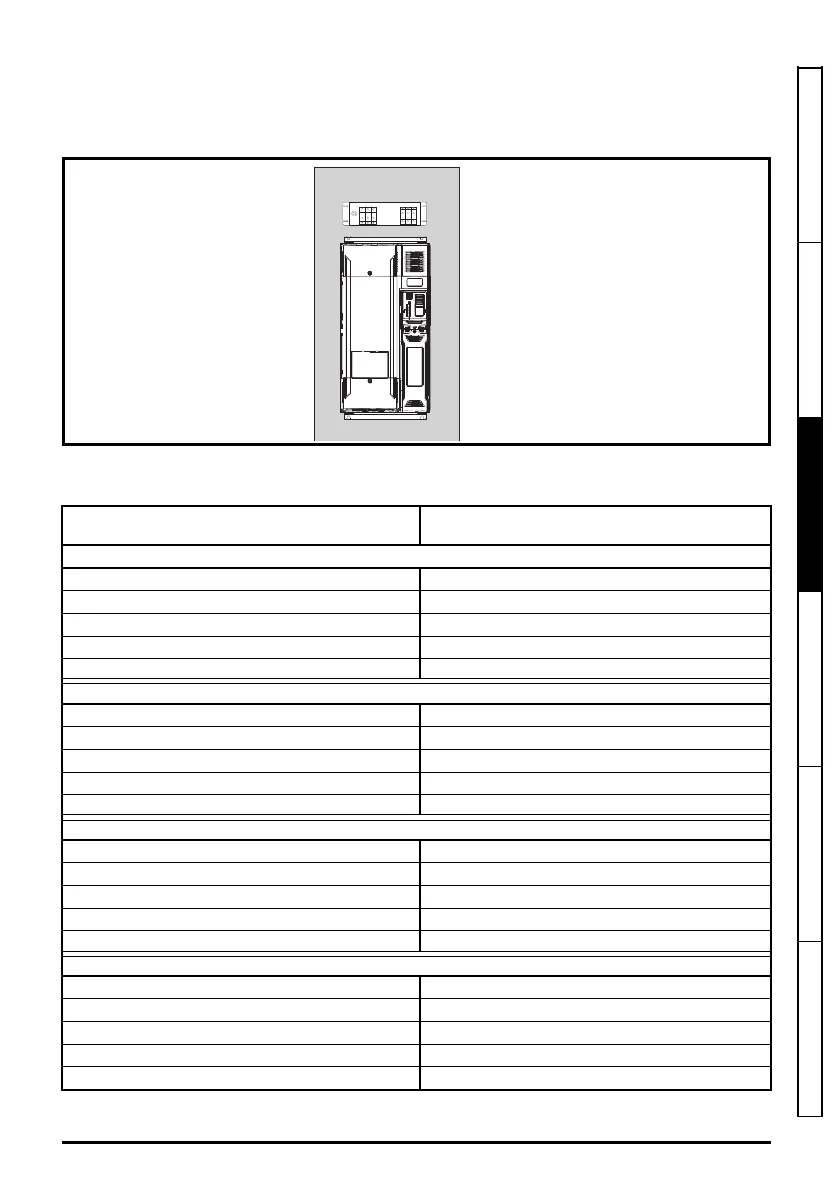

Figure 3-21 Footprint mounting the EMC filter
Figure 3-22 Bookcase mounting the EMC filter
Model CT part number
200 V
05200250 4200-0312
06200330 to 06200440 4200-2300
400 V
05400270 to 05400300 4200-0402
06400350 to 06400470 4200-4800
575 V
05500030 to 05500069 4200-0122
06500100 to 06500350 4200-3690
CT part
number
Maximum
continuous
current
Voltage
rating
IP
rating
Power dissipation
at rated current
Ground leakage
Discharge
resistors
Balanced
supply
phase-to-
phase and
phase-to-
ground
Worst
case@ 40 °C
(104 °F)
@ 50 °C
(122 °F)
IEC UL
@ 40 °C
(104 °F)
@ 50 °C
(122 °F)
AAVV WW mA mAM
4200-0312 31 28.5 250 300
20
20 17 2.0 80
1.68
4200-2300 55 51 250 300 41 35 4.2 69
4200-0402 40 36.8 528 600 47 40 18.7 197
4200-4800 63 58 528 600 54 46 11.2 183
4200-0122 12 11 760 600 9 9 15.2 285
4200-3690 42 39 760 600 45 39 12 234
