28 Unidrive M / HS Frame 7 to 10 Power Installation Guide
3.4.1 Drive dimensions

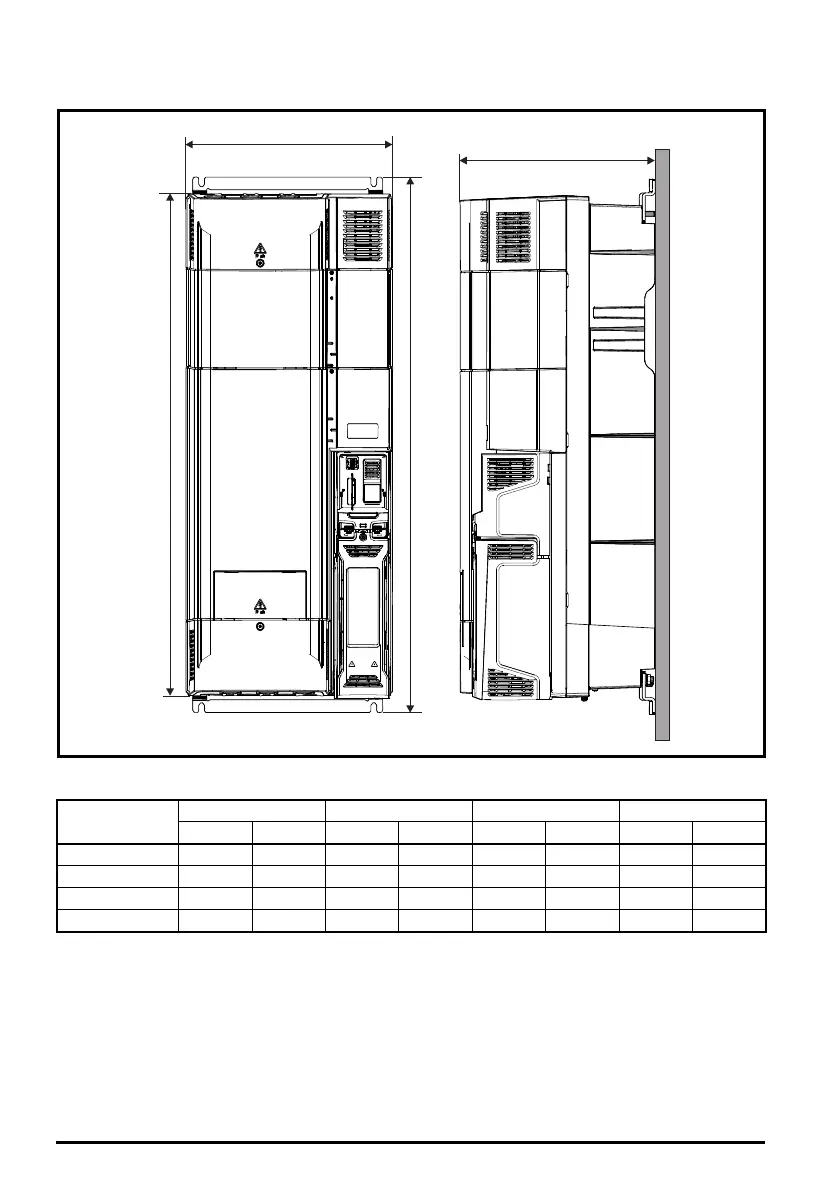

Figure 3-6 Drive dimensions (Unidrive M700 size 8 shown)
Size
H1 H2 W D
mm in mm in mm in mm in
7 557 21.93 508 20 270 10.63 280 11.02
8 804 31.65 753 29.65 310 12.21 290 11.42
9E and 10E 1069 42.09 1010 39.70 310 12.21 290 11.42
9A 1108 43.61 1049 41.30 310 12.21 290 11.42
W
D
H2
H1
