ID300/302 Integrated Motor Drive | Connections
27
4.5 Power Connections
• The motor must be connected to earth. Grounding must be performed in accordance with National
Electrical Code and local electrical codes.
• Duetolargeleakagecurrent,apermanentxedgroundconnectionmustbeprovidedtothe
systembyusinga10mm2(7AWG)atbraid.
• Checkthattheterminalblockhasbeenremovedfromitsxedholder(unplugged)beforemaking
any connections to avoid putting pressure on the card.

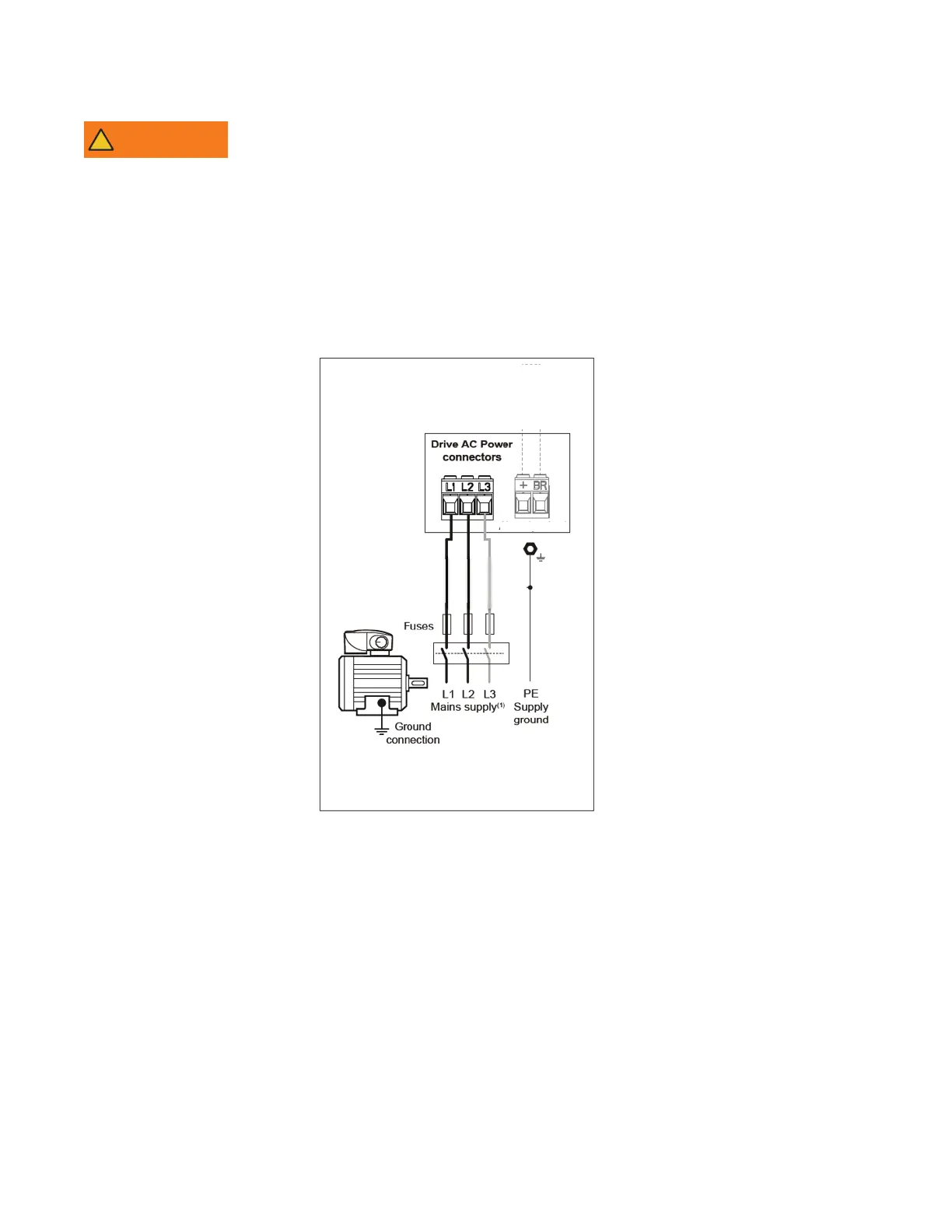

Standard Drive Power Connections
230V or 400V-3ph: Connect to L1, L2, L3
WARNING
!
