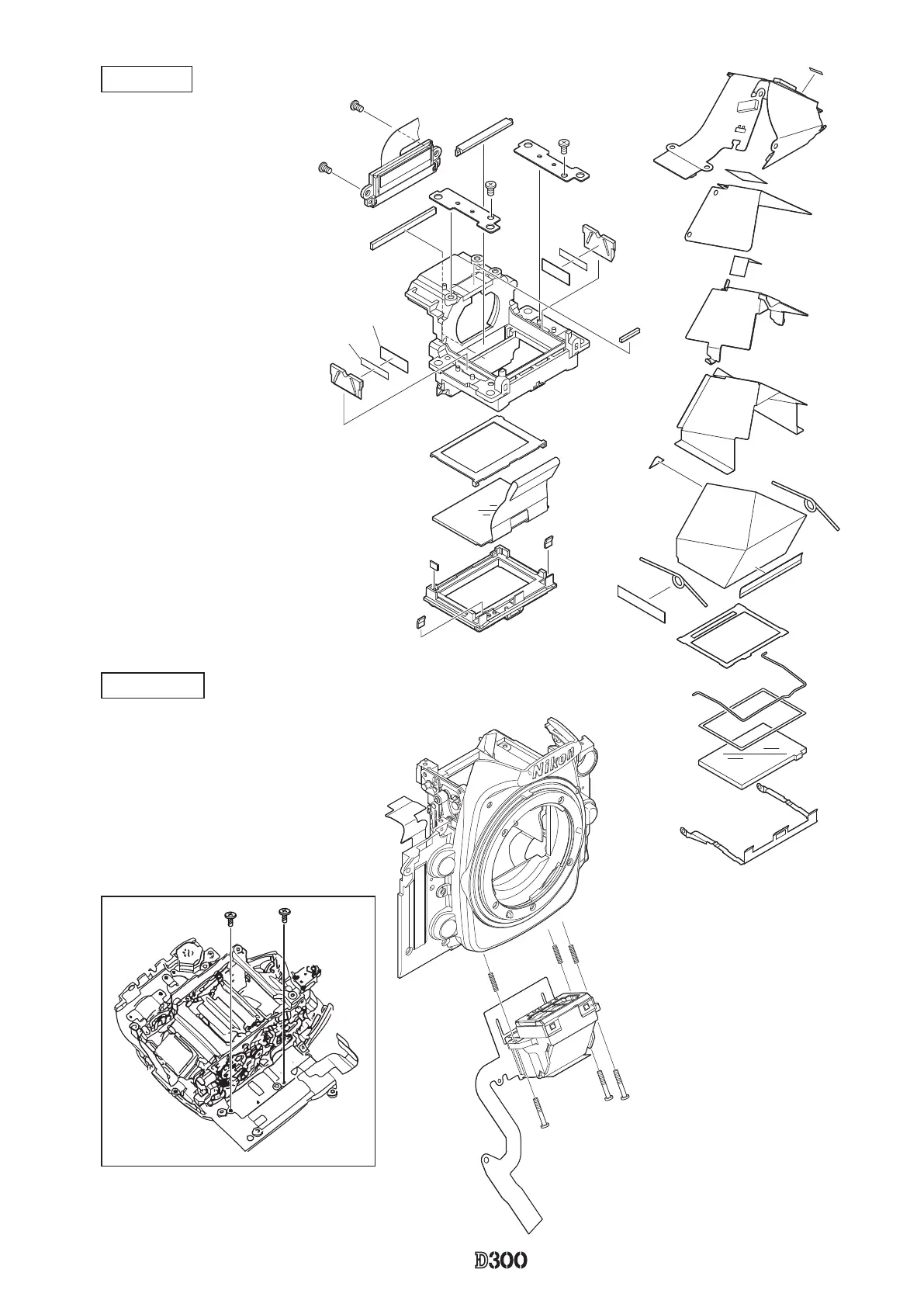

AF FPC unit

#293×3
#295×3
AF FPC unit
(#B1007)
・
Take out the two screws (#1507).
・
Disconnect the FPC of AF FPC unit
(#B1007) from the connector.
・
Take out the three screws (#295), andscrews (#295), and
remove [#B1007] and three springs#B1007] and three springs
(#293).
#1507×2
