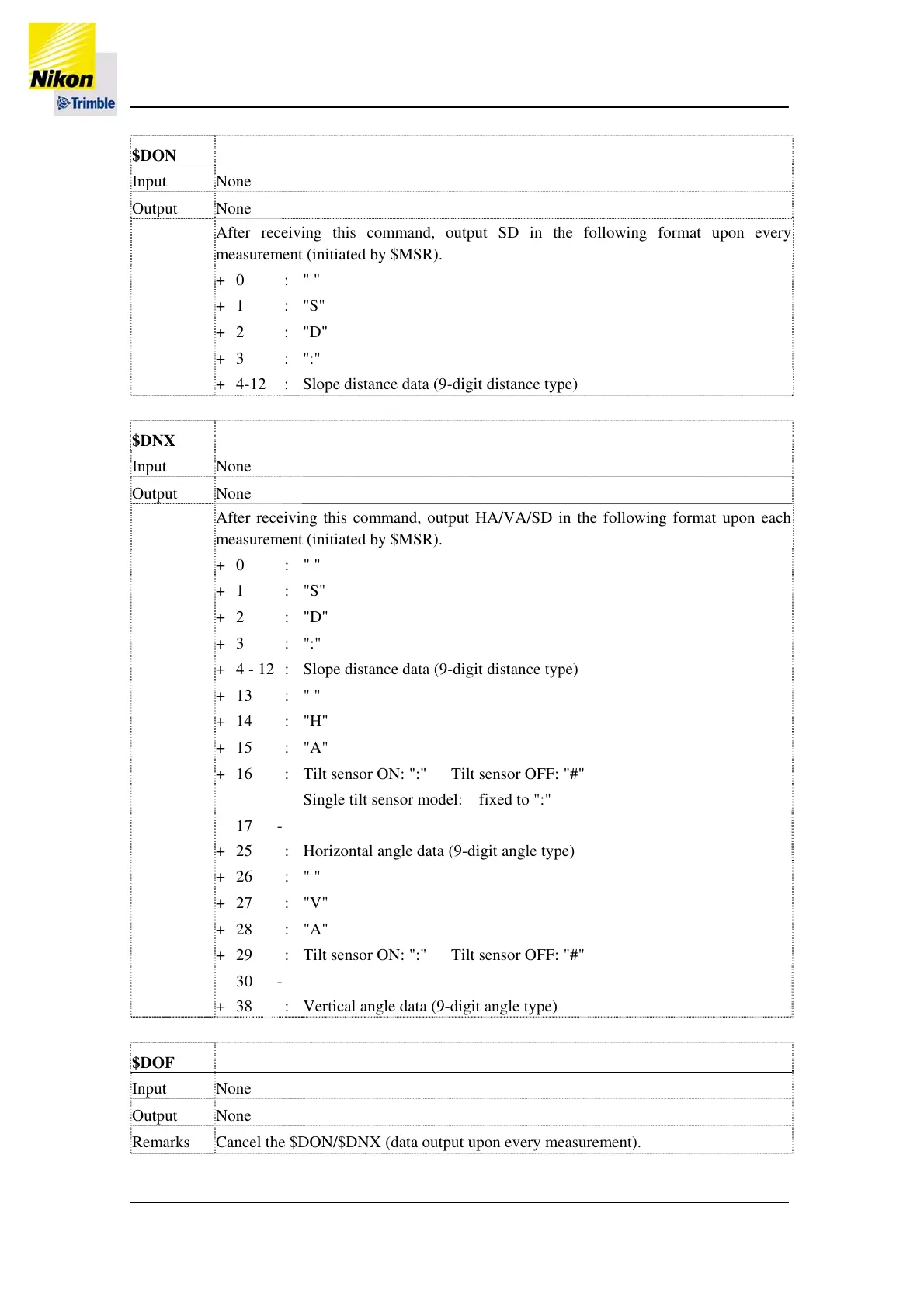

Nikon DTM Series User Manual

Nikon Communication Interface Manual
P11/34
$DON
Input None
Output None
After receiving this command, output SD in the following format upon every
measurement (initiated by $MSR).
+ 0 : " "
+ 1 : "S"
+ 2 : "D"
+ 3 : ":"
Remarks
+ 4-12 : Slope distance data (9-digit distance type)
$DNX
Input None
Output None
After receiving this command, output HA/VA/SD in the following format upon each
measurement (initiated by $MSR).
+ 0 : " "
+ 1 : "S"
+ 2 : "D"
+ 3 : ":"
+ 4 - 12 : Slope distance data (9-digit distance type)
+ 13 : " "
+ 14 : "H"
+ 15 : "A"
+ 16 : Tilt sensor ON: ":" Tilt sensor OFF: "#"
Single tilt sensor model: fixed to ":"
+
17 -
25
: Horizontal angle data (9-digit angle type)
+ 26 : " "
+ 27 : "V"
+ 28 : "A"
+ 29 : Tilt sensor ON: ":" Tilt sensor OFF: "#"
Remarks
+
30 -
38
: Vertical angle data (9-digit angle type)
$DOF
Input None
Output None
Remarks Cancel the $DON/$DNX (data output upon every measurement).
