Nikon DTM Series User Manual

Nikon Communication Interface Manual
P13/34

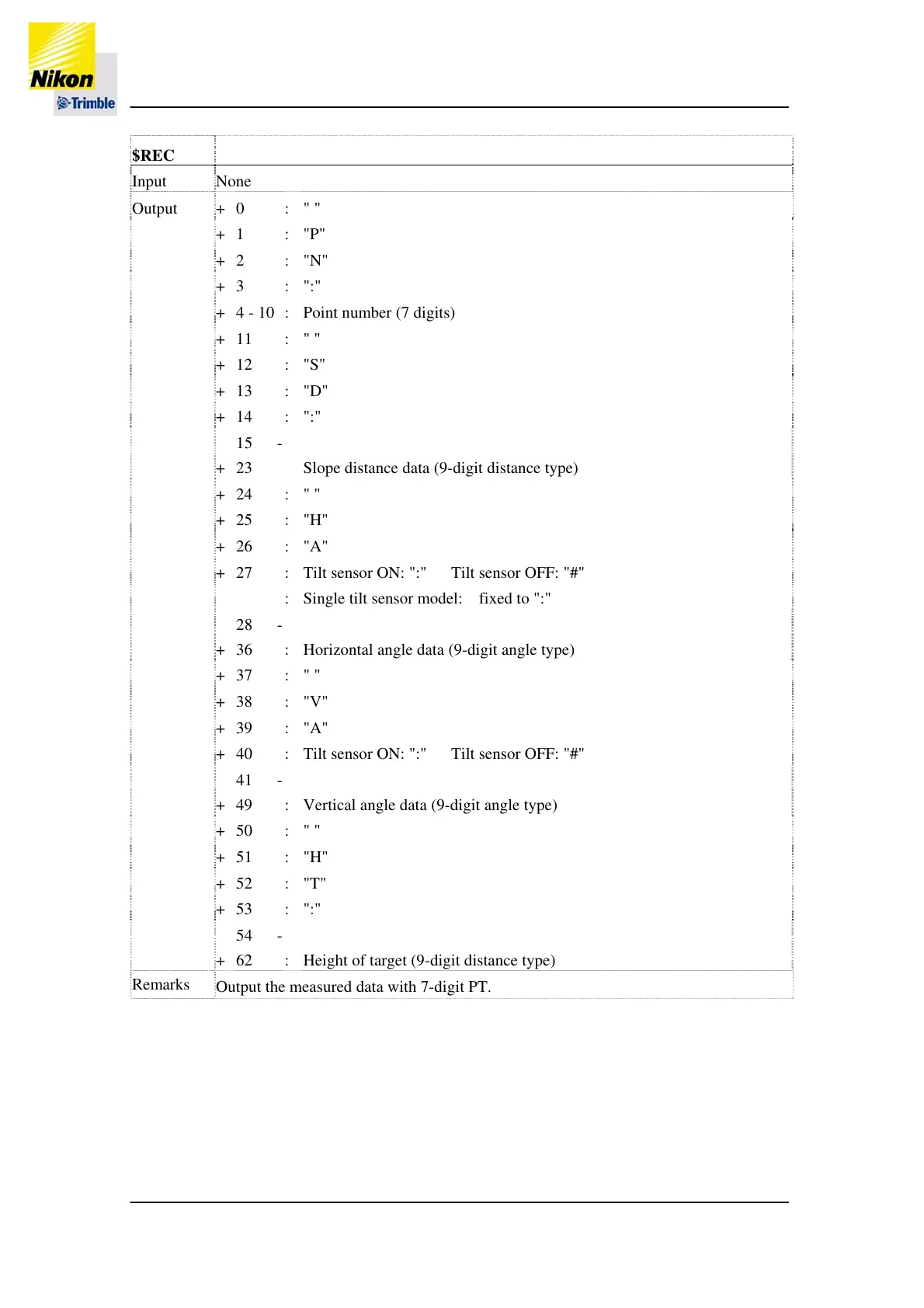

$REC
Input None
Output + 0 : " "
+ 1 : "P"
+ 2 : "N"
+ 3 : ":"
+ 4 - 10 : Point number (7 digits)
+ 11 : " "
+ 12 : "S"
+ 13 : "D"
+ 14 : ":"
+
15 -
23
Slope distance data (9-digit distance type)
+ 24 : " "
+ 25 : "H"
+ 26 : "A"
+ 27 : Tilt sensor ON: ":" Tilt sensor OFF: "#"
: Single tilt sensor model: fixed to ":"
+
28 -
36
: Horizontal angle data (9-digit angle type)
+ 37 : " "
+ 38 : "V"
+ 39 : "A"
+ 40 : Tilt sensor ON: ":" Tilt sensor OFF: "#"
+
41 -
49
: Vertical angle data (9-digit angle type)
+ 50 : " "
+ 51 : "H"
+ 52 : "T"
+ 53 : ":"
+
54 -
62
: Height of target (9-digit distance type)
Remarks
Output the measured data with 7-digit PT.
