Nikon Communication Interface Manual
P19/34

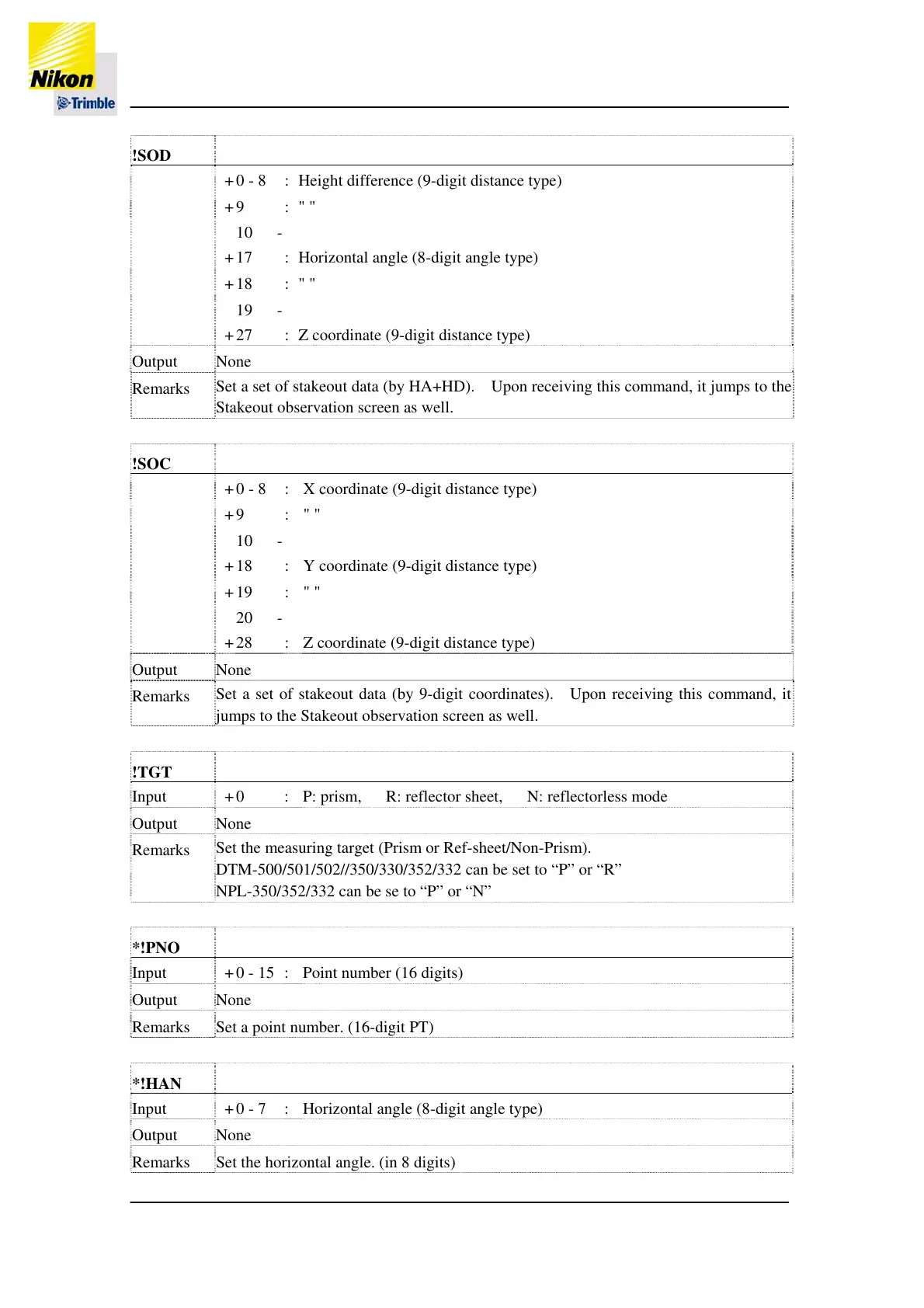

!SOD
+ 0 - 8 : Height difference (9-digit distance type)
+ 9 : " "
+
10 -
17
: Horizontal angle (8-digit angle type)
+ 18 : " "
Input
+
19 -
27
: Z coordinate (9-digit distance type)
Output None
Remarks
Set a set of stakeout data (by HA+HD). Upon receiving this command, it jumps to the
Stakeout observation screen as well.
!SOC
+ 0 - 8 : X coordinate (9-digit distance type)
+ 9 : " "
+
10 -
18
: Y coordinate (9-digit distance type)
+ 19 : " "
Input
+
20 -
28
: Z coordinate (9-digit distance type)
Output None
Remarks
Set a set of stakeout data (by 9-digit coordinates). Upon receiving this command, it
j
umps to the Stakeout observation screen as well.
!TGT
Input + 0 : P: prism, R: reflector sheet, N: reflectorless mode
Output None
Remarks
Set the measuring target (Prism or Ref-sheet/Non-Prism).
DTM-500/501/502//350/330/352/332 can be set to “P” or “R”
NPL-350/352/332 can be se to “P” or “N”
*!PNO
Input + 0 - 15 : Point number (16 digits)
Output None
Remarks Set a point number. (16-digit PT)
*!HAN
Input + 0 - 7 : Horizontal angle (8-digit angle type)
Output None
Remarks Set the horizontal angle. (in 8 digits)
