Nikon DTM Series - !CND; !BSE

Nikon Communication Interface Manual
P17/34

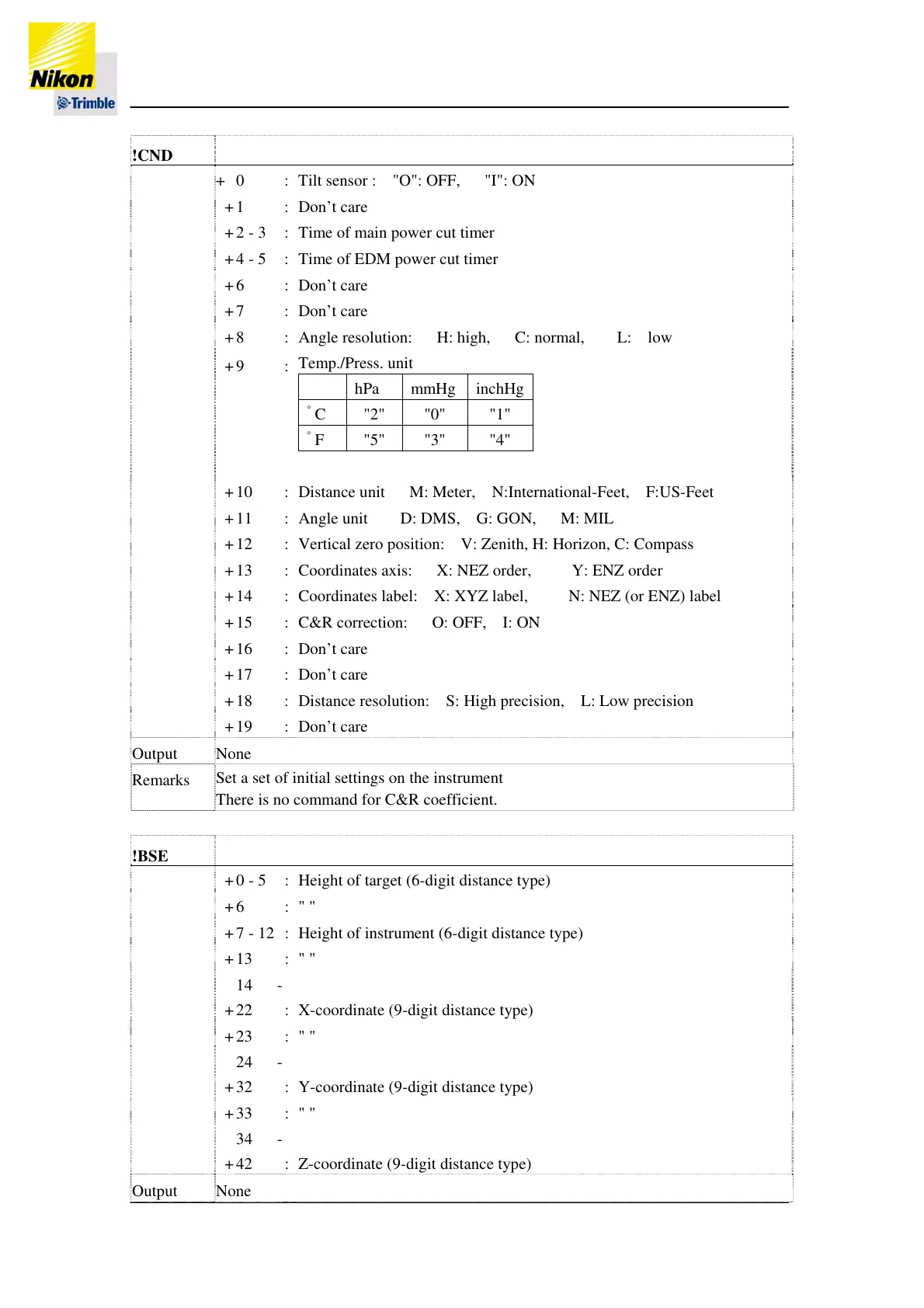

!CND
+ 0 : Tilt sensor : "O": OFF, "I": ON
+ 1 : Don’t care
+ 2 - 3 : Time of main power cut timer
+ 4 - 5 : Time of EDM power cut timer
+ 6 : Don’t care
+ 7 : Don’t care
+ 8 : Angle resolution: H: high, C: normal, L: low
+
9
:
Temp./Press. unit
hPa mmHg inchHg
ﾟ C "2" "0" "1"
ﾟ F "5" "3" "4"
+ 10 : Distance unit M: Meter, N:International-Feet, F:US-Feet
+ 11 : Angle unit D: DMS, G: GON, M: MIL
+ 12 : Vertical zero position: V: Zenith, H: Horizon, C: Compass
+ 13 : Coordinates axis: X: NEZ order, Y: ENZ order
+ 14 : Coordinates label: X: XYZ label, N: NEZ (or ENZ) label
+ 15 : C&R correction: O: OFF, I: ON
+ 16 : Don’t care
+ 17 : Don’t care
+ 18 : Distance resolution: S: High precision, L: Low precision
Input
+ 19 : Don’t care
Output None
Remarks
Set a set of initial settings on the instrument
There is no command for C&R coefficient.
!BSE
+ 0 - 5 : Height of target (6-digit distance type)
+ 6 : " "
+ 7 - 12 : Height of instrument (6-digit distance type)
+ 13 : " "
+
14 -
22
: X-coordinate (9-digit distance type)
+ 23 : " "
+
24 -
32
: Y-coordinate (9-digit distance type)
+ 33 : " "
Input
+
34 -
42
: Z-coordinate (9-digit distance type)
Output None
