Nikon DTM Series User Manual

Nikon Communication Interface Manual
P15/34

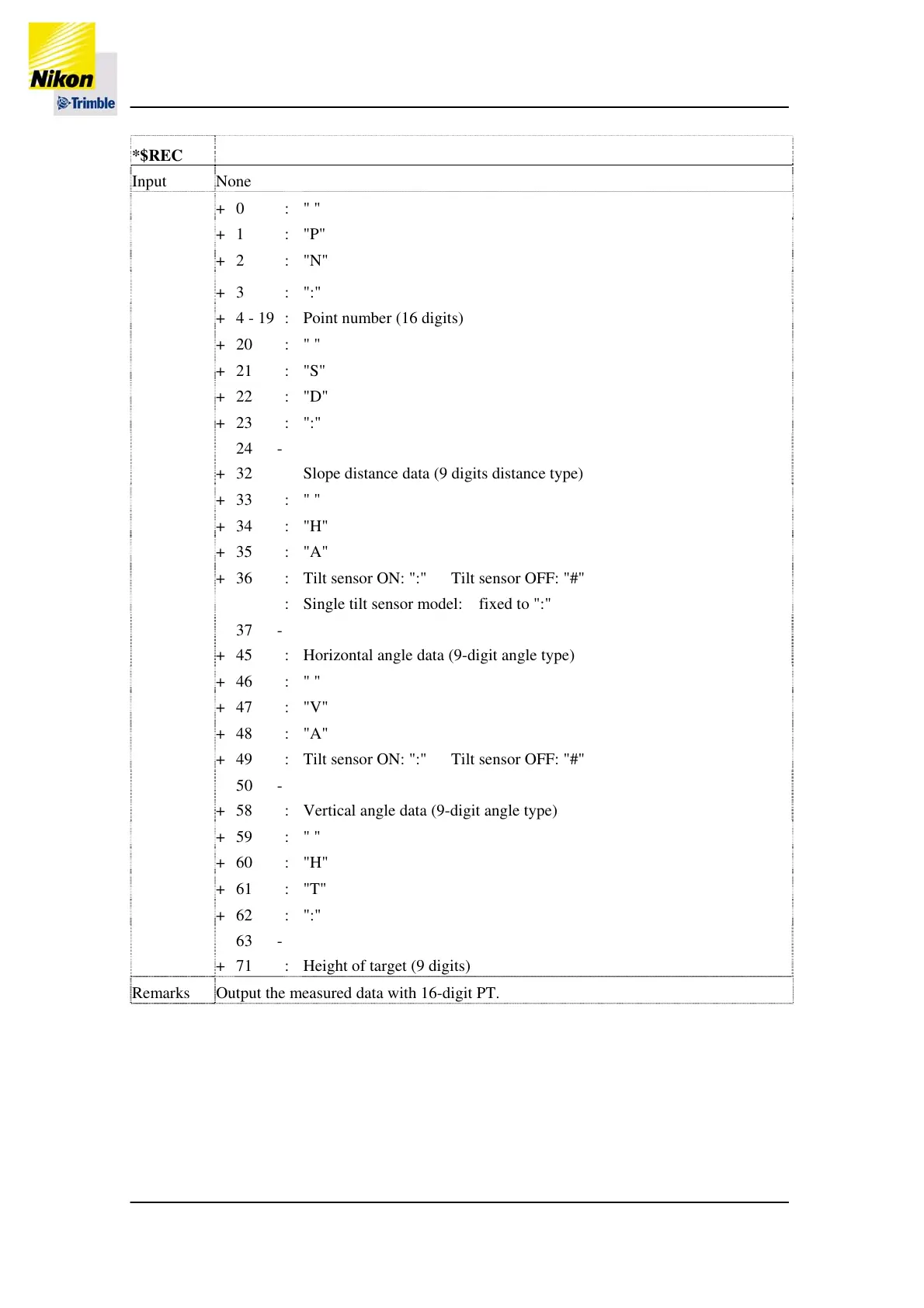

*$REC
Input None
+ 0 : " "
+ 1 : "P"
+ 2 : "N"
+ 3 : ":"
+ 4 - 19 : Point number (16 digits)
+ 20 : " "
+ 21 : "S"
+ 22 : "D"
+ 23 : ":"
+
24 -
32
Slope distance data (9 digits distance type)
+ 33 : " "
+ 34 : "H"
+ 35 : "A"
+ 36 : Tilt sensor ON: ":" Tilt sensor OFF: "#"
: Single tilt sensor model: fixed to ":"
+
37 -
45
: Horizontal angle data (9-digit angle type)
+ 46 : " "
+ 47 : "V"
+ 48 : "A"
+ 49 : Tilt sensor ON: ":" Tilt sensor OFF: "#"
+
50 -
58
: Vertical angle data (9-digit angle type)
+ 59 : " "
+ 60 : "H"
+ 61 : "T"
+ 62 : ":"
Output
+
63 -
71
: Height of target (9 digits)
Remarks Output the measured data with 16-digit PT.
