II. Microscopy Method
4

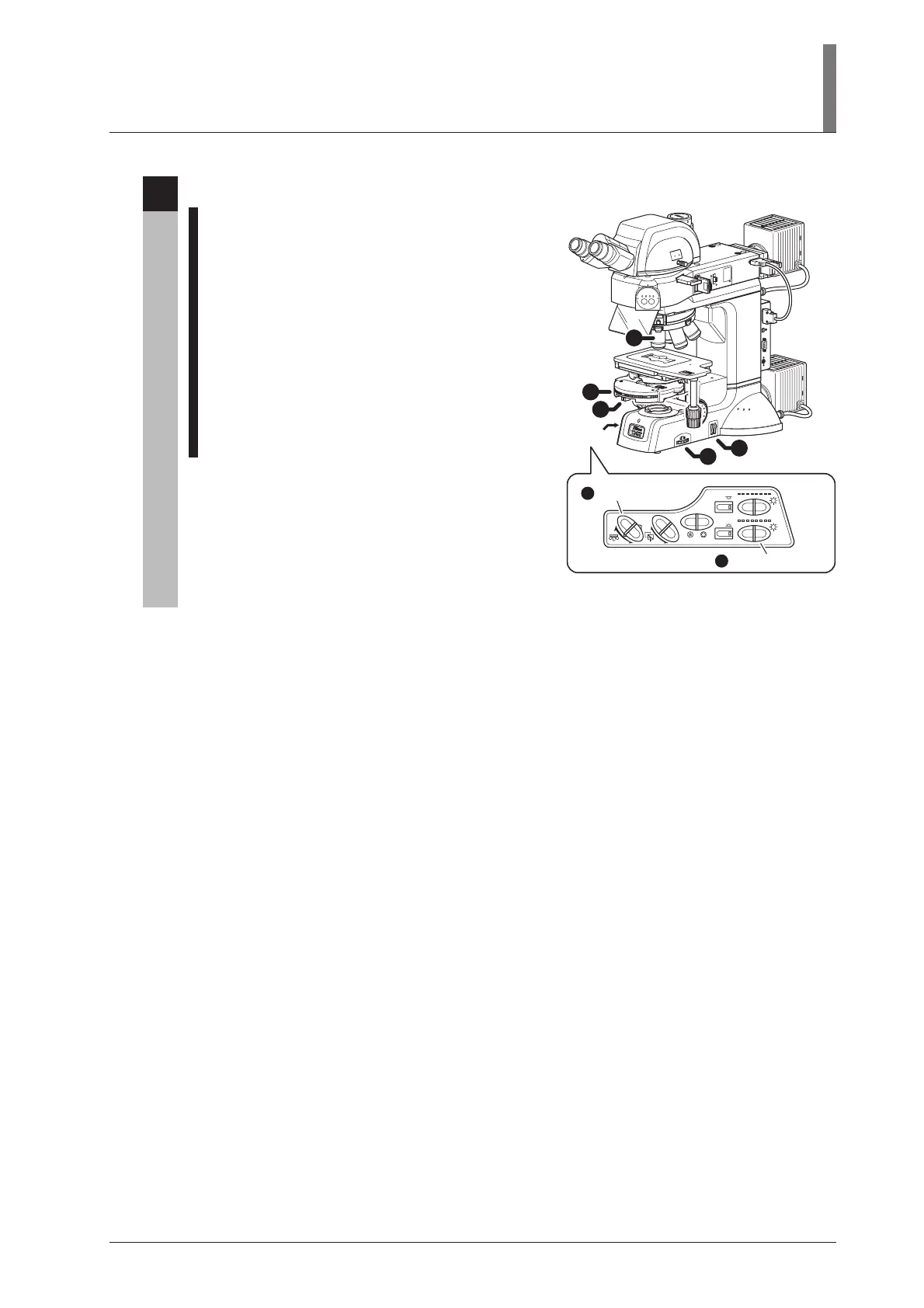

Return to the bright-field microscopy under the diascopic illumination.
1 Press the OBJ. switch on the operation panel and
locate the objective of a desired magnification
into the optical path. (See Page 43.)
2 Rotate the condenser turret of the universal
condenser to the “O” position. (See Page 55.)
3 Operate the DIA brightness switch on the
operation panel to adjust the brightness of the
diascopic illumination. (See Page 42.)
4 Adjust the brightness with ND filters.
(See Page 44.)
5 Adjust the field diaphragm and the aperture
diaphragm. (See Page 54.)
