Nikon Eclipse LV100DA-U User Manual

75
IV. Assembly

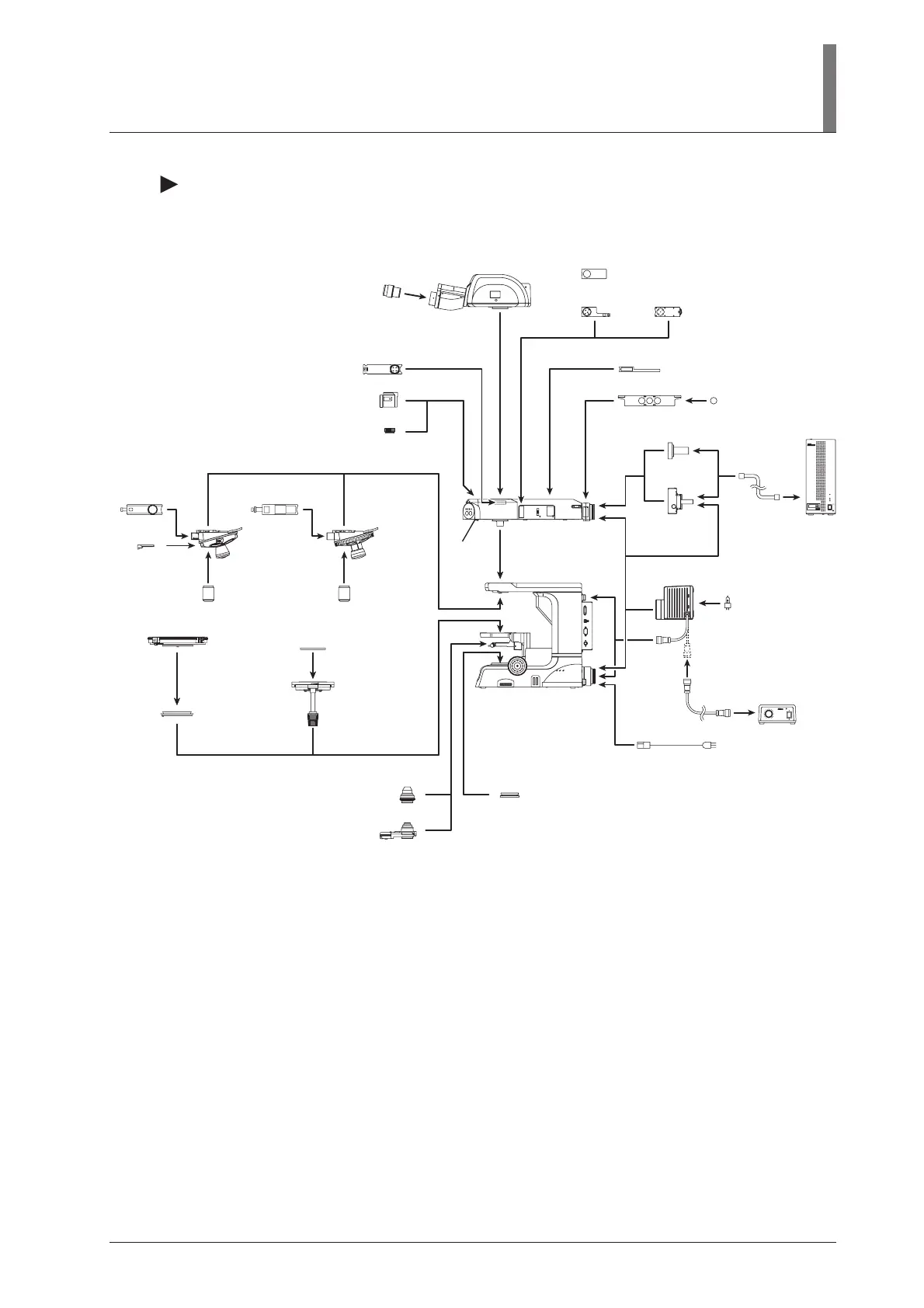

Assembling the ECLIPSE LV100DA-U
Assemble each part according to the following figure.
*1 For the episcopic illumination, use the lambda plate slider on the epi illuminator side. For the diascopic
illumination, use the lambda plate slider on the nosepiece side.
*2 It is installed if the brightness of the specified light source is less than the desired brightness for the
episcopic microscopy or so on.
*3 When you wish to turn on the episcopic illumination and the diascopic illumination simultaneously, you
must connect this part to the lamp house for the episcopic illumination.
INTENSILIGHT
C
-
HGFIE
LAMP
POWER
RUN TIME hrs.
POWER
MIN. MAX.
ObjectiveObjective
Lamp house
Double light
source adapter
Light guide
fiber *2
12V 50W
halogen lamp
External light
source *2
Power
supply *3
LV-UEPI2A
illuminator
or
or
Condenser
Polarizer for the diascopic illumination,
Rotatable polarizer for the diascopic illumination
or
Lamp cable
Lamp
cable *3
Glass slide holder
(3x2 stage)
DIC slider
Motorized
universal
quintuple
nosepiece
(LV-NU5AI)
Motorized
universal
quintuple
nosepiece
(LV-NU5A,
LV-NU5AC)
Lambda plate *1
DIC silider
3x2 stage,
6x4 stage,
6x6 stage,
Rotatable stage
for polarizing,
Rotatable
mechanical stage
Power cord
Various filters
Polarizer
slider
Excitation light balancer
Filter slider (two pieces)
Analyzer
slider
Filter cube
(Two cubes max.)
Compensation filter
(attached to fiber adapter)
LV-TT2
eyepiece tube
Eyepiece
Stage adapter
Circular graduated
stage G stage2
Rectangular
stage
Universal
condenser
LV100DA-U
Microscope main body
or
Lambda plate slider *1
Dummy slider
Fiber
adapter *2
