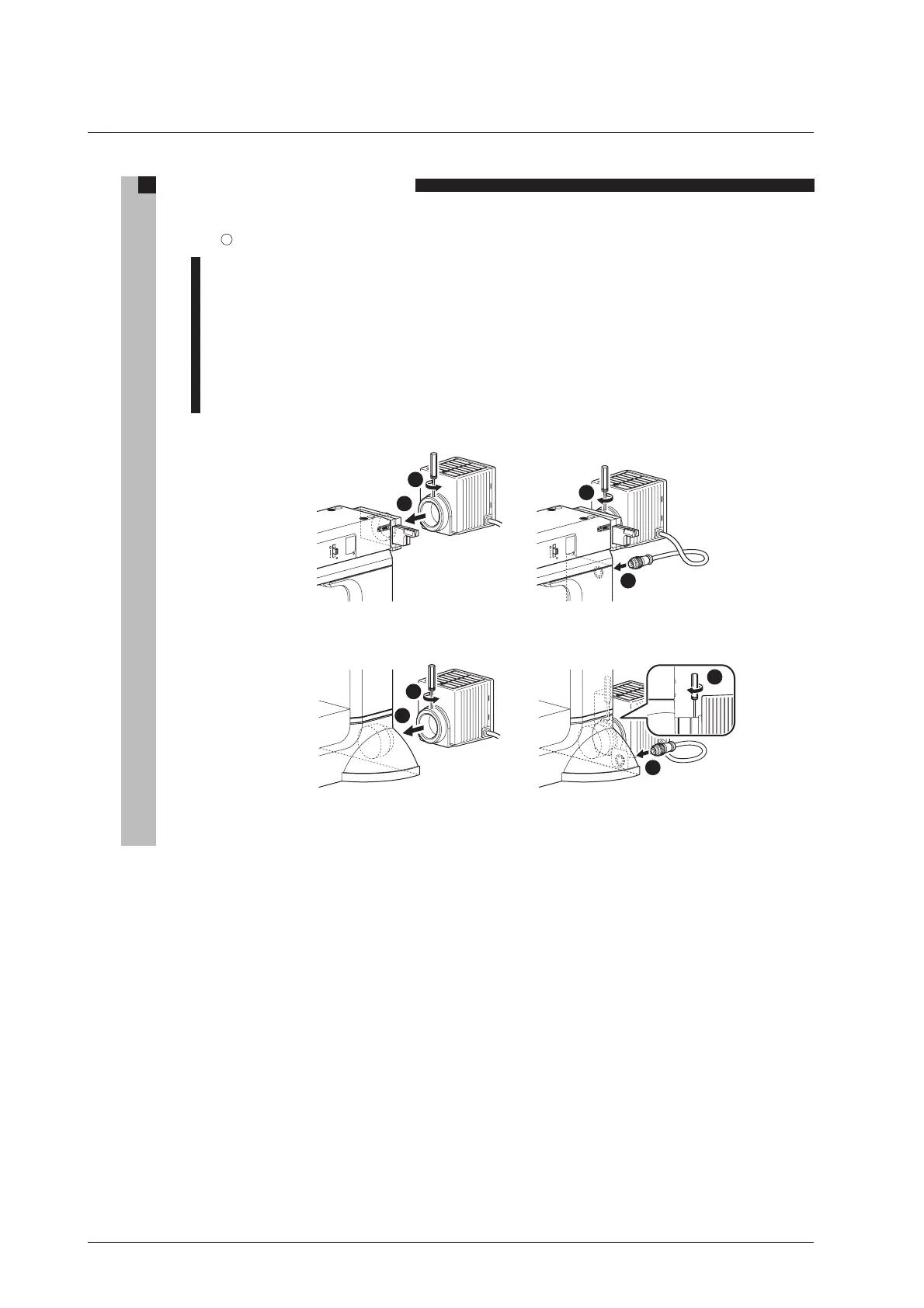

1. Attaching the lamp house
Before performing the following procedures, turn off the power supply for the microscope (press
the “ ” side) and unplug the power cord from the wall outlet.
1 Loosen the clamp screw sufficiently on the upper side of the lamp house connector by using
the hexagonal screwdriver provided with the microscope.
2 Mount the lamp house to the connection port on the rear of the illuminator or on the rear of
the microscope body and insert the lamp house as far as it goes.
3 Using the hexagonal screwdriver supplied with the microscope, tighten the clamp screw on
the upper side of the connector of the lamp house to secure it.
4 Plug the cable coming from the lamp house into the lamp connector on the rear of the
microscope and tighten the ring of the connector to secure the connection.
1
2
4
3
For the dia-illumination
To remove the lamp house, reverse the above procedure.
For the epi-illumination
