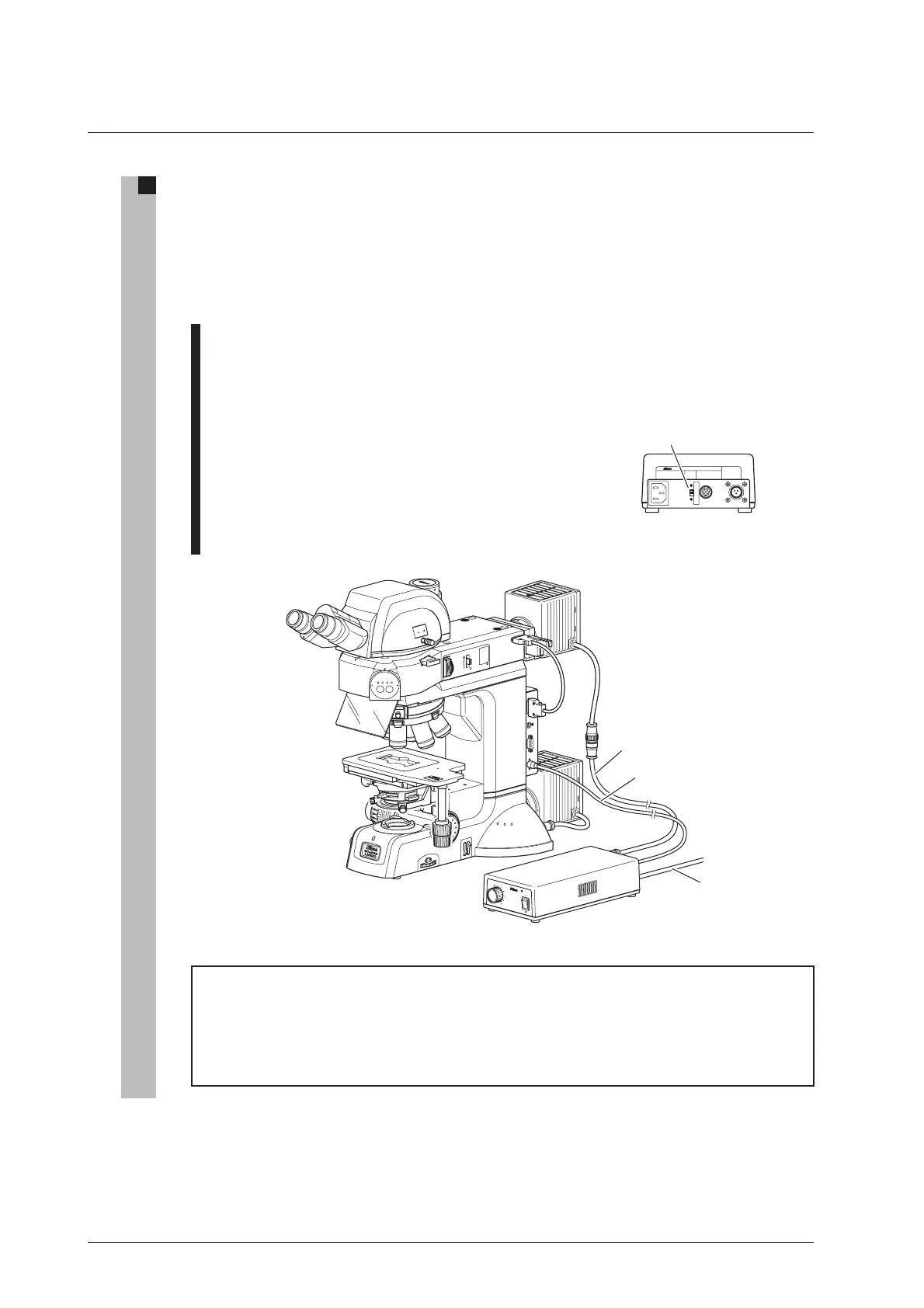

3. Connecting an external power supply (only for the simultaneous illumination)
When the specified lamp house LV-LH50PC is used for both of the episcopic illumination and the
diascopic illumination, the episcopic illumination and the diascopic illumination can be turned on
simultaneously by using an optional power supply.
For this purpose, the optional power supply, Nikon TE2-PS100W, must be connected to the lamp
house for the episcopic illumination.
1 Connect the lamp cable, which is provided with the power supply, to the lamp cable of the
lamp house and to the OUTPUT connector on the power supply.
2 Connect the control cable, which is provided with the power supply, to the EXTERNAL
connector on the power supply and to the LCNT connector on the LV100DA.
3 Turn the EXTERNAL switch on the back of the power
supply to the ON side.
This disables the brightness control knob on the power
supply and enables the control functions of the lamp
and the brightness on the operation panel of the
microscope. When the power supply is used with this
microscope, make sure to turn on the EXTERNAL
switch.
Setup works to use the external power supply
When the external power supply is used with this product, you can independently control the
episcopic illumination and diascopic illumination with “LVSetup.” You can specify the
simultaneous illumination or single illumination. For details about operations and setup
works of the “LVSetup,” see “LV Series Support Tools software manual.”
