IV. Assembly
91
Compensation filter
JAPAN
Cover
JAPAN
Compensation filter

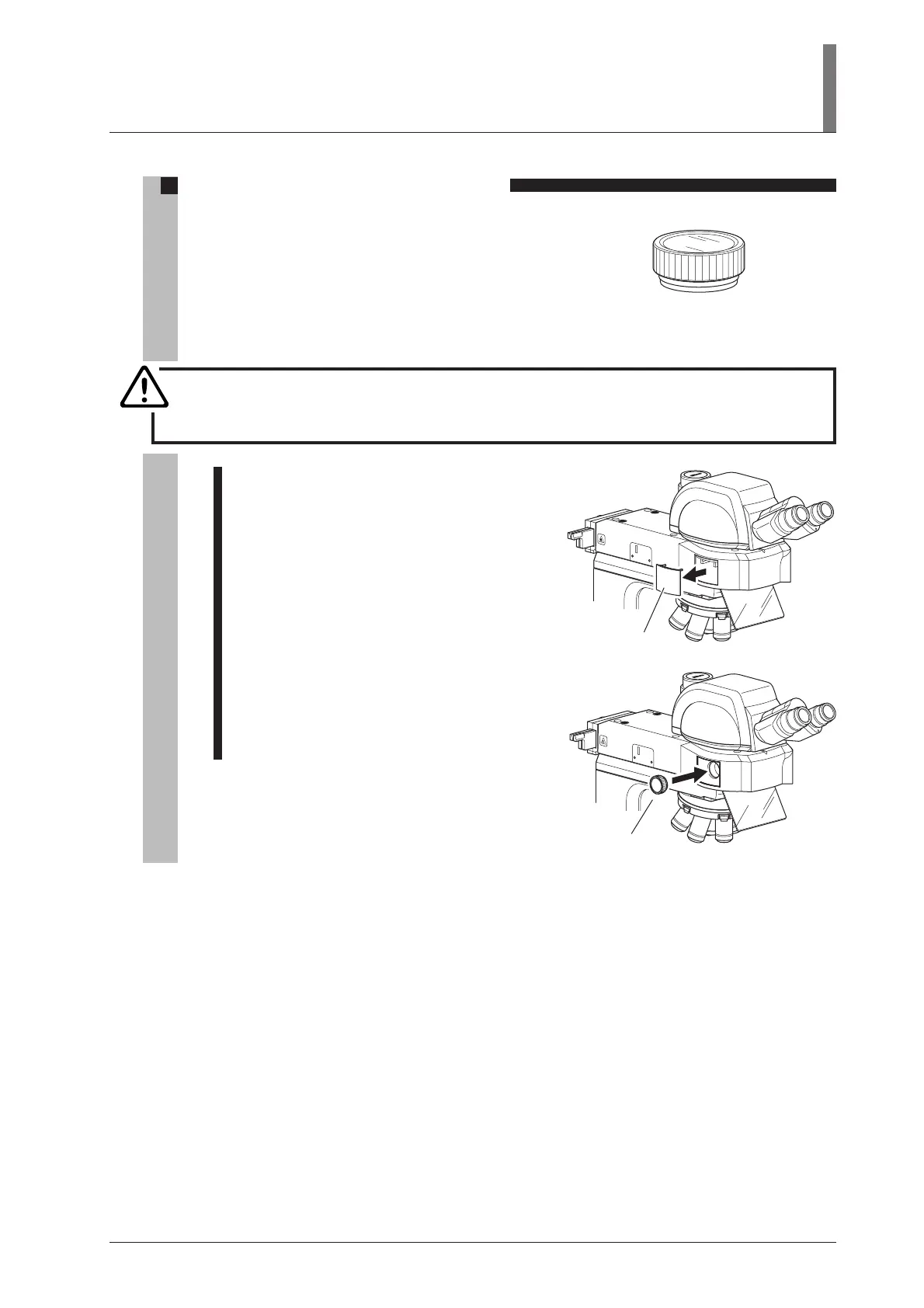

3. Attaching the compensation filter
A designated compensation filter comes with the HG
fiber adapter. The compensation filter is used to
compensate the color balance and brightness. If this filter
is not used with, extremely strong light will be radiated
during the bright-field microscopy. Make sure to attach
the filter into the bright-field block in the LV-UEPI2A
when the adapter is used.
CAUTION
To attach the compensation filter, the product must be turned on with the LV-UEPI2A
attached. So, this step must be performed after the assembly of the microscope.
1 When the light source (the lamp house or the
optical fiber light source) is attached to the
microscope, turn off the light source. And if
possible, turn off the power for the light source.
2 Plug the power cord and turn on the product.
3 Remove the cover on the left side of the LV-
UEPI2A.
4 Check the position indicator of the filter cube
turret in the LV-UEPI2A. Operate the CUBE
switch on the operation panel so that the “BF”
position is placed at the opening.
5 Screw in the compensation filter provided with the
HG fiber adapter into the bright-field block in the
LV-UEPI2A.
6 Put the cover back to its original position.
