Nikon SB 20 - Basic Operation; Installing Batteries

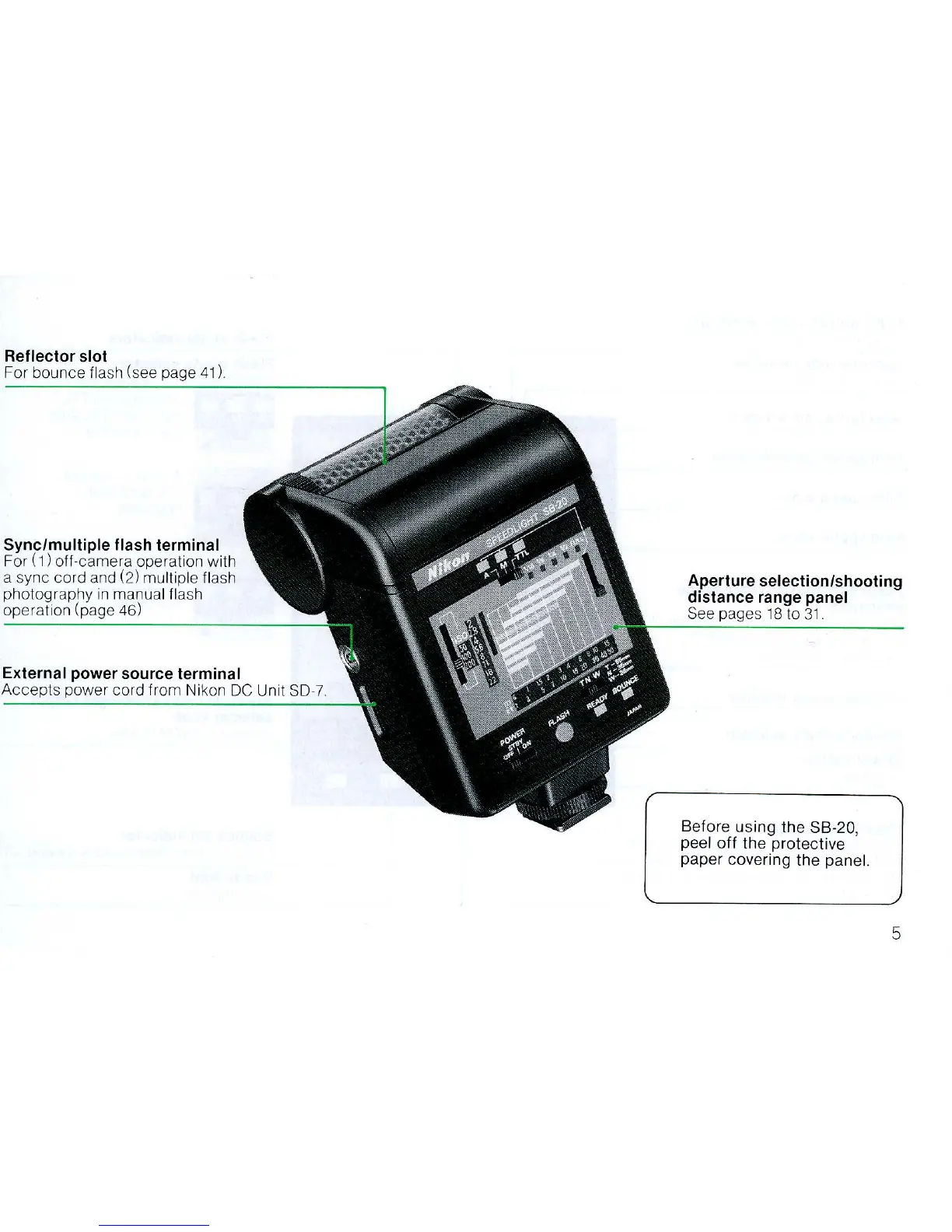

Reflector slot
For bounce
fl ash (see page 4 1) .
Sync/multiple flash terminal
For (1) off-came
ra operati on with
a sync cord
an d (2) multiple flash
photography
in manual fla sh
operation (page 46)
External power source terminal
Accepts power co
rd from Nik on DC Uni t SD-7.
Aperture selection/shooting
distance range panel
See pages
18 to 31 .
Before using the SB-20,
peel
off the protecti ve
paper covering the pane l.
5
