B-4
B
Operation
En-03

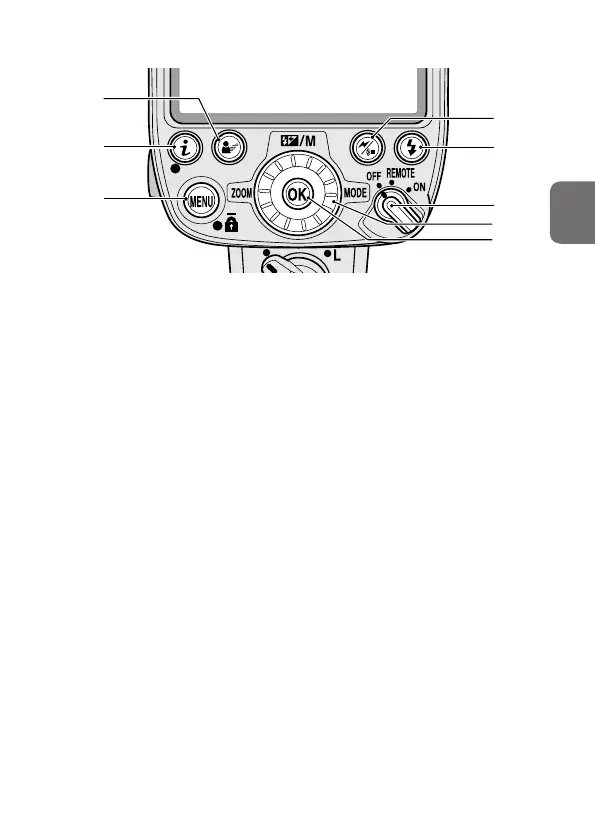

28 Wireless setting button
• Selects control type
• Configurable items vary
depending on the position
of the power switch
REMOTE:
Optical control remote
mode
Direct remote mode
Radio control remote
mode
ON:
Single flash-unit mode
Optical control master
mode
Radio control master
mode
29 Test firing button
• Controls test firing (0E-13)
30 Power switch
• Rotate to turn power on
and off
• Set the index to choose the
desired function
REMOTE:
Remote mode
(0D-11)
ON:
Single flash-unit mode
(0B-18, C-1)
Master mode
(0D-9)
31 Rotary multi selector
• Selects flash mode or other
items (0B-6)
32 OK button
• Confirms selected setting
27
32
31
28
29
30
26
25
