A-4 / ENGLISH
A-4 - FORM NO. 56041735 - Advenger
™

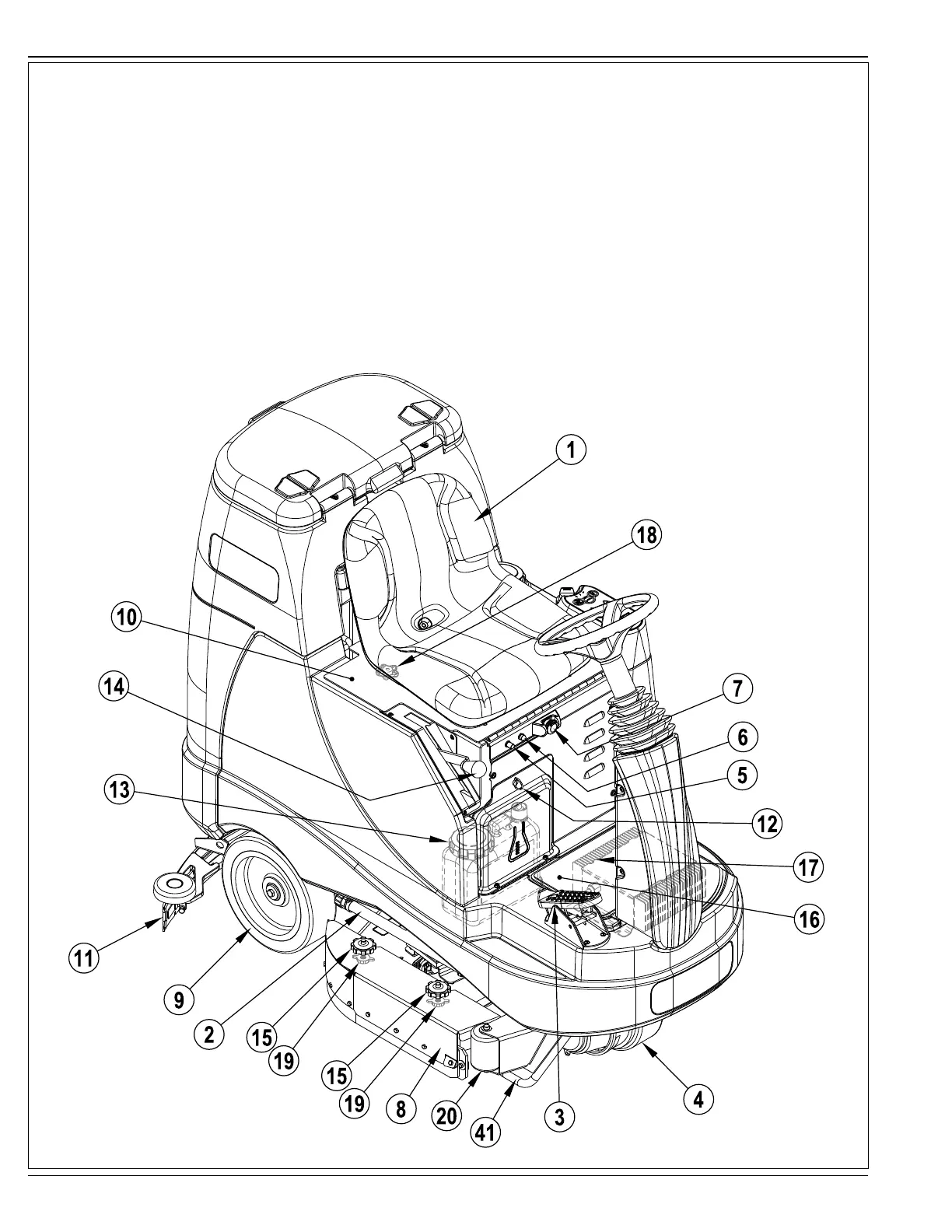

KNOW YOUR MACHINE
As you read this manual, you will occasionally run across a bold number or letter in parentheses - example: (2). These numbers refer to an item shown on these
pages unless otherwise noted. Refer back to these pages whenever necessary to pinpoint the location of an item mentioned in the text.
1 Operator’s Seat
2 Solution Tank Drain Hose
3 Drive Pedal, Directional/Speed
4 Drive Wheel
5 Drive Wheel Circuit Breaker (70 Amp)
6 Control Circuit Circuit Breaker (10 Amp)
7 Emergency Stop
8 Scrub Deck
9 Rear Wheel
10 Battery Compartment (under seat)
11 Squeegee Assembly
12 Detergent Cartridge Access Cover (EcoFlex models only)
13 Detergent Cartridge (EcoFlex models only)
14 Scrub Deck Raise/Lower Lever (ST models only)
15 Deck Skirt Removal Knobs
16 Battery Charger Access Door
17 Battery Charger (optional)
18 Seat Adjustment Knob (optional on ST models)
19 Deck Skirt Height Adjustment Knob
20 Front Roller Bumper
revised 2/13
