CONTROL PANEL
41. Machine ignition key
• Operator key (grey)
• Super User key (yellow) (see Maintenance chapter)
42. Machine start/stop push-button
43. One-Touch™ Scrub ON/OFF push-button
• Flashing green LED: Brush deck moving up/down
• Steady green LED: Ready for work
• Steady red LED: Extra pressure active (hold for one
second)
44. Vacuum system adjustment/deactivation push-button:
• LED on - solution ow activated
45. Brush engage/disengage push-button:
• Flashing LED - system activated
46. Detergent percentage adjustment push-button (*)
47. Solution ow adjustment push-button
48. Horn switch
49. Reverse gear activation/deactivation lever
50. EcoFlex™ activation/deactivation lever (*)

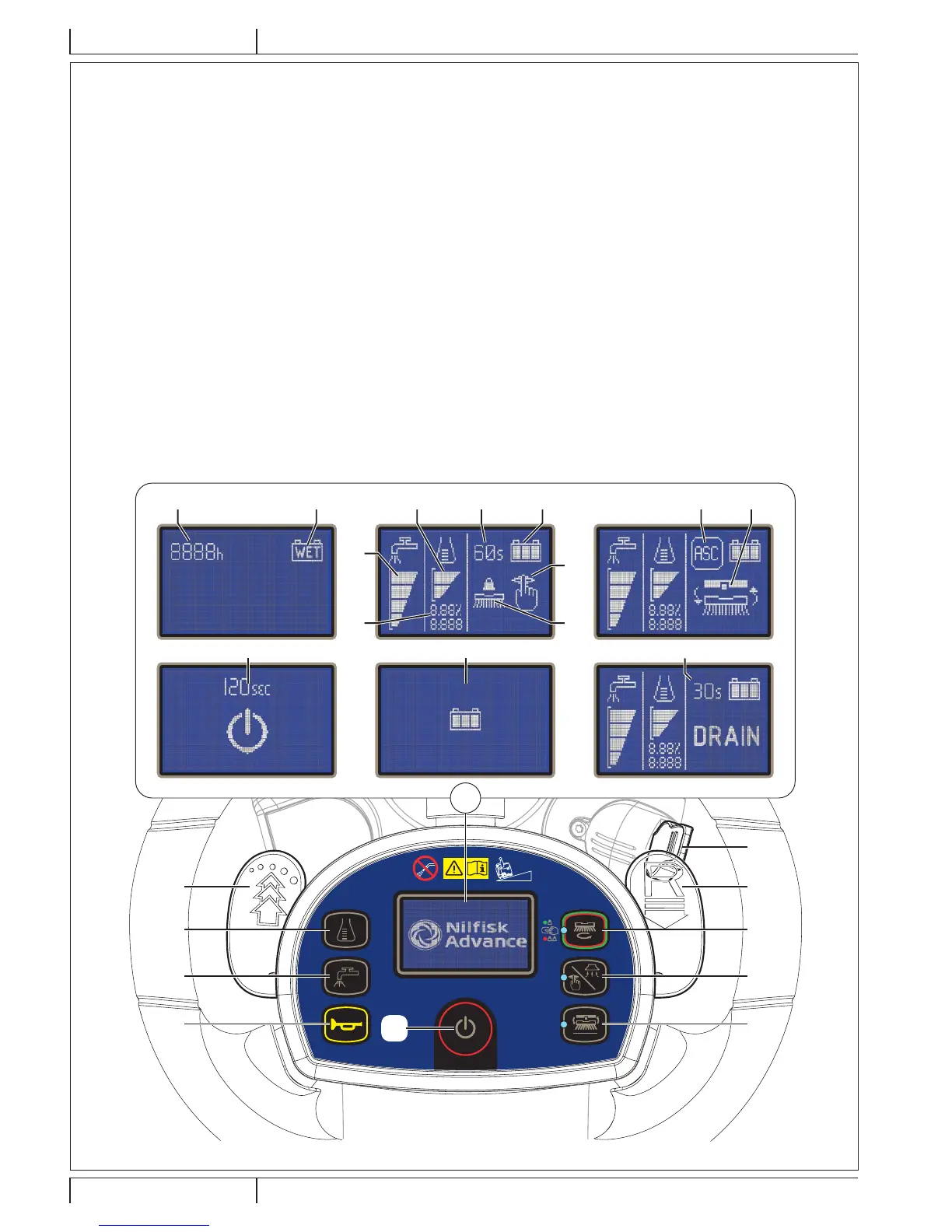

51. Multifunction display
Items displayed:
A) Hours worked
B) Battery type
C) Battery charge level
D) Vacuum mode
E) Brush work mode
F) Detergent solution ow quantity
G) Detergent quantity (*)
H) Percentages of detergent in the washing water (*)
I) EcoFlex™ system override timer (*)
J) Anti-skid control
K) Maximum machine speed setting
L) Auto shut-off timer
M) Battery charging with on-board battery charger (*)
N) EcoFlex™ system drain activation (*)
(*) Optional for BASIC version
max.2%
1s
C KI J
M
N
L
G
A B
F
H
D
E
42
43
44
49
41
45
46
47
50
48
51
