ENGLISH INSTRUCTIONS FOR USE
10 SC2000 - 9100000383
01/2015

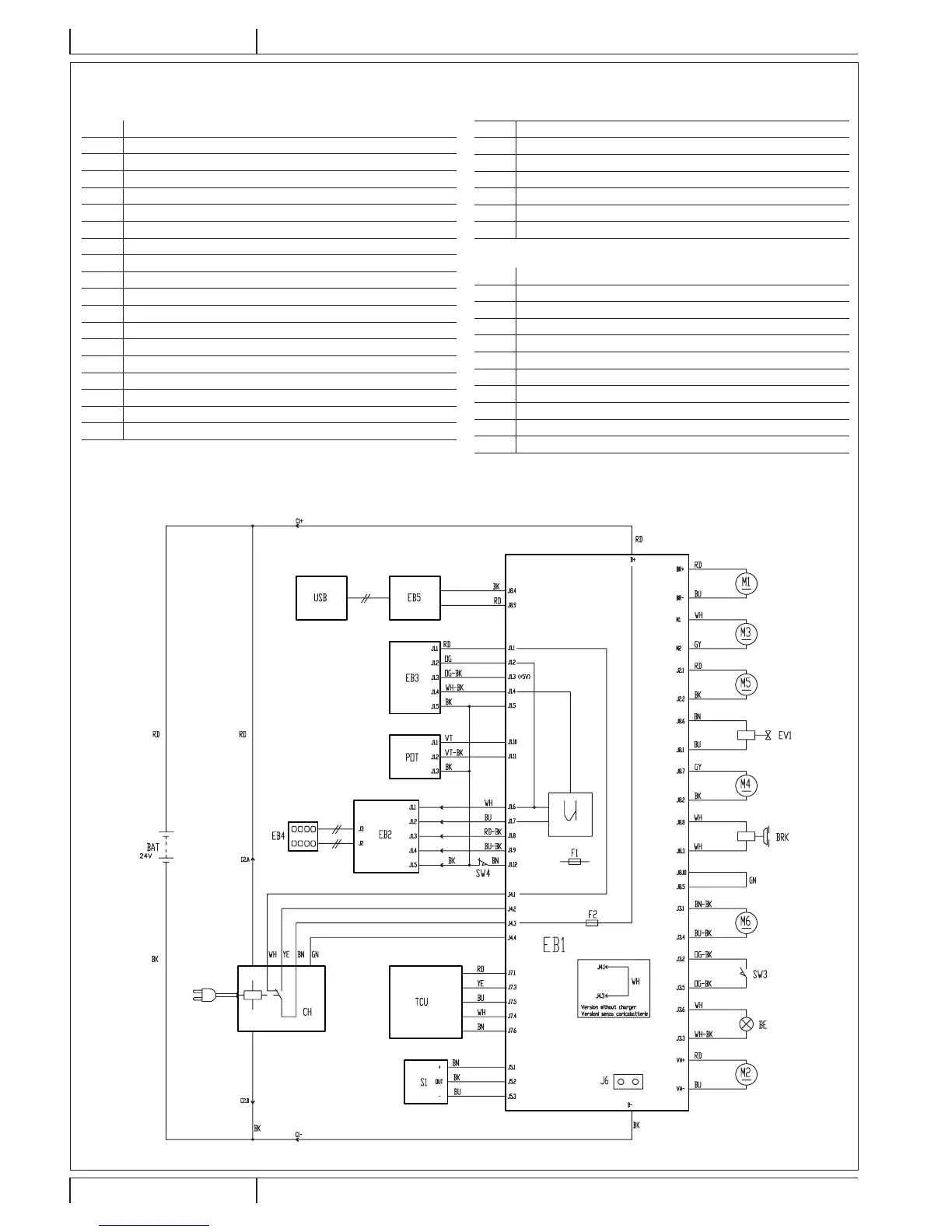

WIRING DIAGRAM
Key
BAT 24 V batteries
BE Pivoting light (optional)
BRK Electromagnetic brake
C1 Battery connector
C2 Battery charger connector (optional)
CH Battery charger (optional)
EB1 Function electronic board
EB2 Display electronic board
EB3 Key electronic board
EB4 Dashboard instrument electronic board
EB5 5V power unit (optional)
EV1 Solenoid valve
F1 Main electronic board fuse
F2 Signal circuit fuse
M1 Brush motor
M2 Vacuum system motor
M3 Drive system motor
M4 EcoFlex™ pump (optional)
M5 Brush deck actuator motor
M6 Squeegee actuator motor
POT Drive pedal potentiometer
S1 Solution level sensor
SW3 Seat microswitch
SW4 Anti-skid control sensor
TCU TrackClean™ (optional)
USB USB port (optional)
Colour codes
BK Black
BU Blue
BN Brown
GN Green
GY Grey
OG Orange
PK Pink
RD Red
VT Violet
WH White
YE Yellow
P100862
