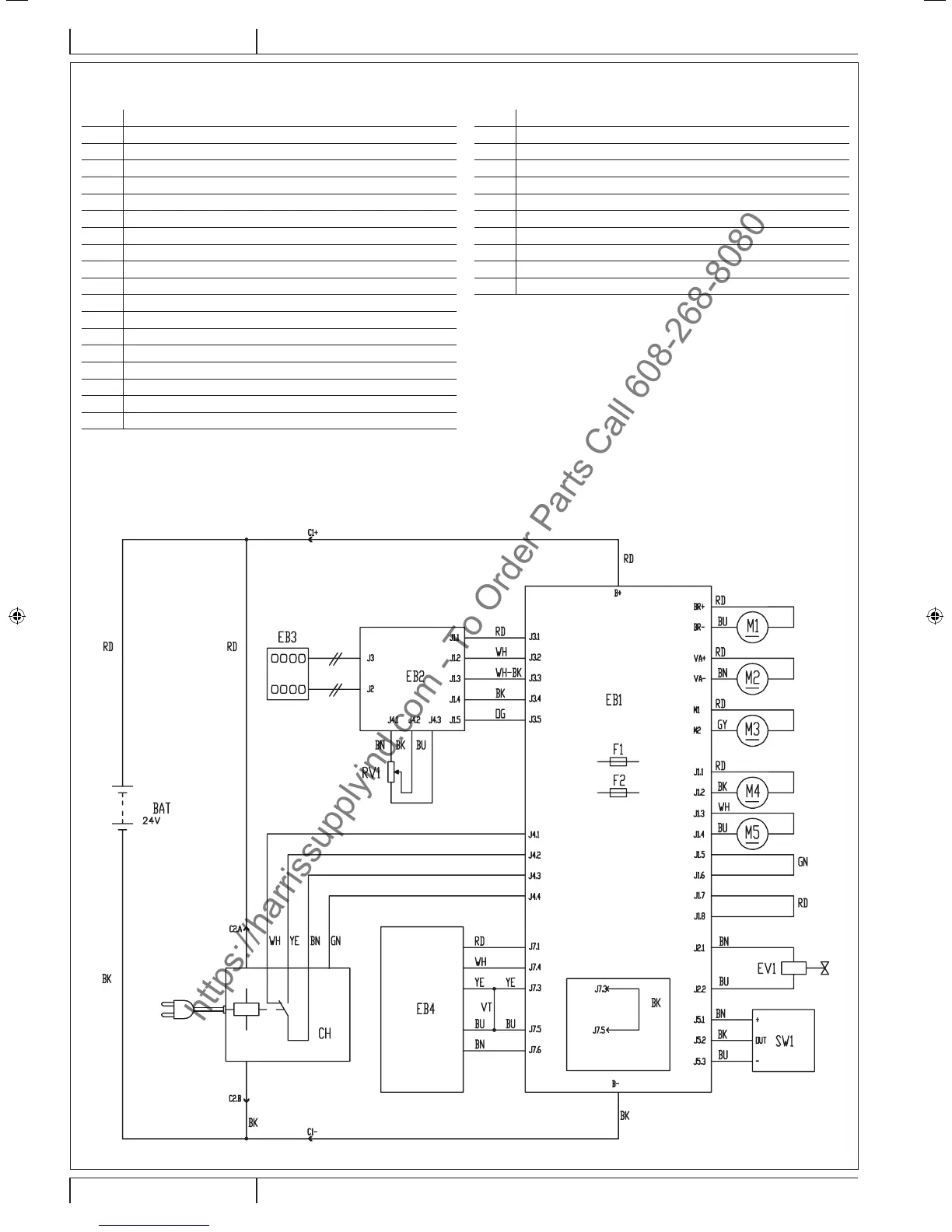

WIRING DIAGRAM
Key
BAT 24 V batteries
C1 Battery connector
C2 Battery charger main connector
C3 Battery charger sub-connector
CH Battery charger
EB1 Function board
EB2 Display board
EB3 Dashboard instrument board
EB4 TrackClean (optional)
EV1 Solenoid valve
F1 Function board fuse
F2 Signal circuit fuse
M1 Brush motor
M2 Vacuum system motor
M3 Drive system motor
M4 EcoFlex™ pump (*)
M5 Brush deck actuator
RV1 Speed potentiometer
SW1 Detergent level sensor
Color codes
BK Black
BU Blue
BN Brown
GN Green
GY Grey
OG Orange
PK Pink
RD Red
VT Violet
WH White
YE Yellow
(*) Not for SC500 20D B version
(**) Version without TrackClean system
(**)
