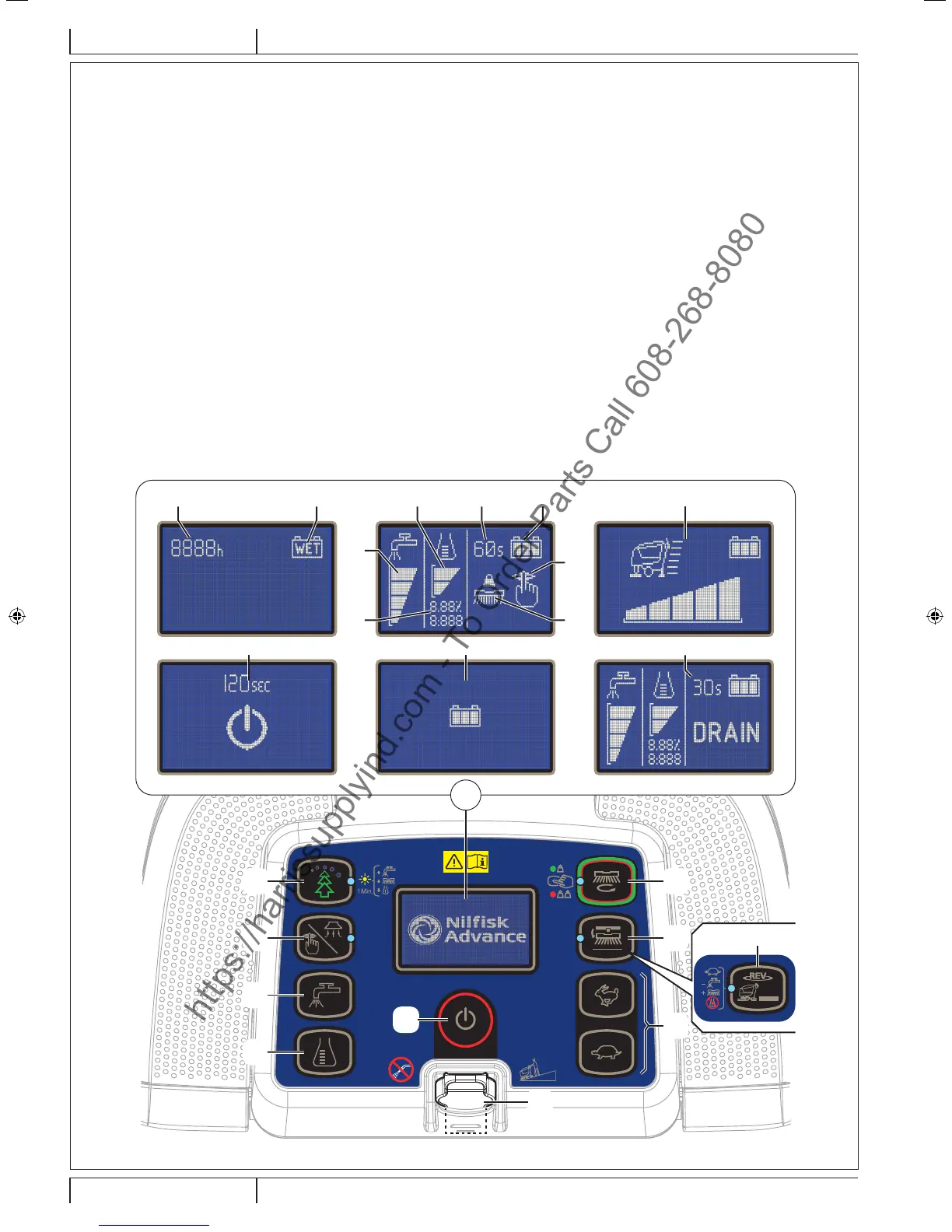

CONTROL PANEL
41. Machine ignition key
• Operator key (grey)
• Super User key (yellow) (see Maintenance chapter)
42. Machine start/stop push-button
43. One-Touch™ Scrub ON/OFF push-button
• Flashing green LED: Brush deck moving up/down
• Green LED: Ready for work
• Red LED: Extra pressure active (hold for one second)
44. Brush release push-button
• Flashing LED - Releasing system activated
45. REV™ function push-button (**)
• LED on - system activated
46. Machine speed adjustment push-buttons
• Hare - Increase machine speed
• Tortoise - Decrease machine speed
47. EcoFlex™ system push-button (*)
• LED on - EcoFlex™ system on
• Led ashing - Temporary override
48. Vacuum system adjustment/deactivation push-button
• LED on - solution ow activated
49. Detergent ow adjustment push-button
50. Detergent percentage adjustment push-button
51. Multifunction display
Items displayed:
A) Hours worked
B) Battery type
C) Battery charge level
D) Vacuum mode
E) Brush work mode
F) Detergent solution ow quantity
G) Detergent percentage quantity
H) Percentages of detergent in the washing water
I) EcoFlex™ system override timer (*)
J) Maximum machine speed setting
K) Auto shut-off timer
L) Battery charging with on-board battery charger
M) EcoFlex™ system drain activation (*)
(*) Not for SC500 20D B version
(**) For REV™ version only
max.2%
1s
47
48
49
50
42
43
44
46
41
C JI
L
M
K
G
A B
F
H
D
E
51
45
P100855
