USE
WARNING!
On some points of the machine there are some adhesive plates indicating:
– DANGER
– WARNING
– CAUTION
– CONSULTATION
While reading this Manual, the operator must pay particular attention to the symbols shown on the plates (see Visible Symbols On
The Machine paragraph).
Do not cover these plates for any reason and immediately replace them if damaged.
BATTERY CHECK/SETTING ON A NEW MACHINE
WARNING!
The electric components of the machine can be seriously damaged if the batteries are either improperly installed
or connected. The batteries must be installed by qualied personnel only.
Set the machine according to the type of batteries used.
Check the batteries for damage before installation.
Disconnect the battery connector and the battery charger plug.
Handle the batteries with great care.
Install the battery terminal protection caps supplied with the machine.

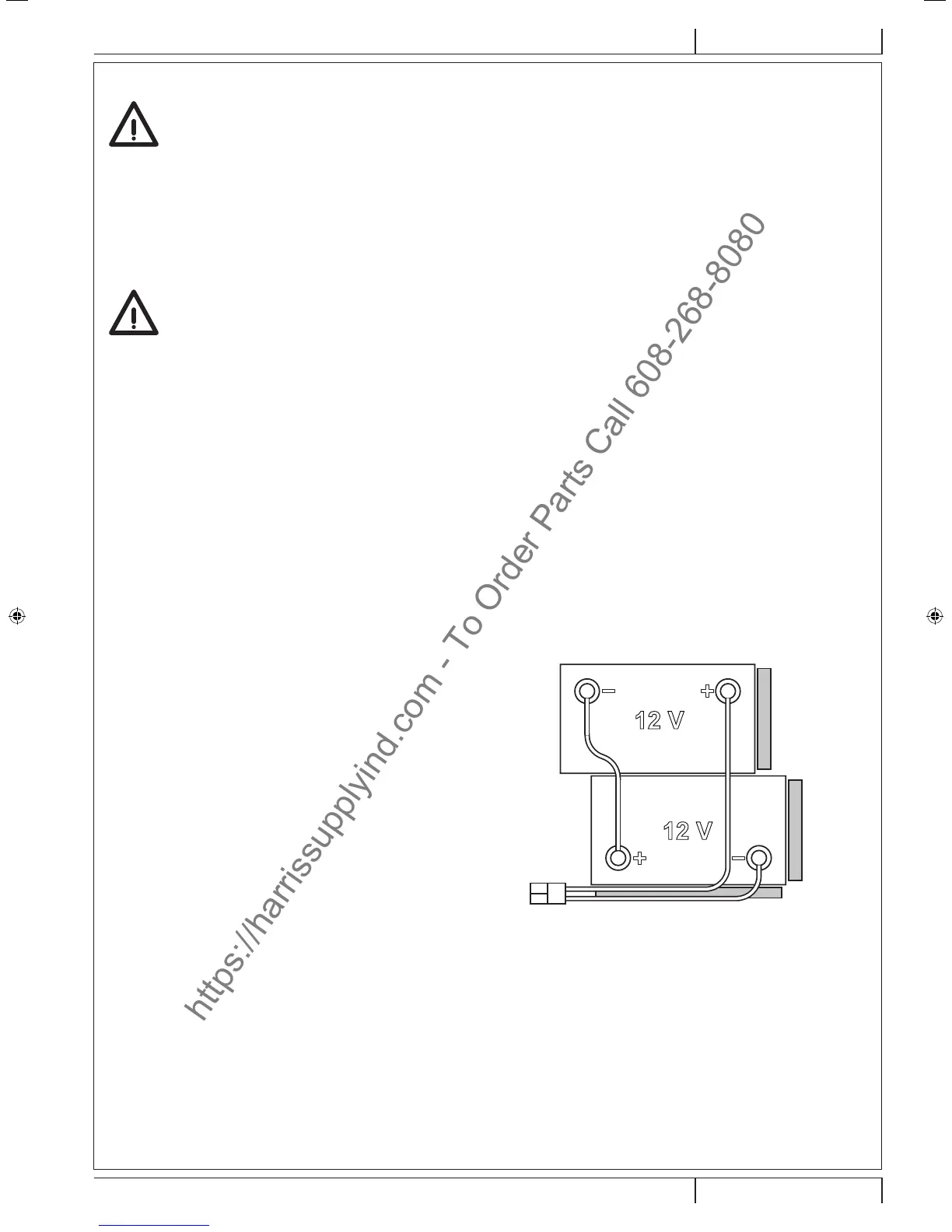

The machine requires 2 12 V batteries, connected according to the diagram shown in Figure 1.
The machine can be supplied in one of the following modes:
Batteries already installed on the machine
1. Ensure that the battery connector (9) is connected.
2. When rst using the machine with new batteries, perform a full charging cycle (see the procedure in Maintenance chapter).
Without batteries
1. Buy appropriate batteries (see “Technical Data” paragraph). For battery choice and installation, apply to qualied battery
Retailers.
2. Set the machine according to the type of batteries installed as shown in the Super User key section of the Maintenance
chapter.
BATTERY INSTALLATION
Battery Installation
1. Remove the operator key (41).
2. Disconnect the battery connector (9).
3. Lift the cover (34) and check that the recovery tank (33) is
empty; if not, empty it using the drain hose (12).
4. Close the cover (34).
5. Grasp the handle (16) and carefully lift the tank (33).
6. The machine is supplied with cables suitable to install
2 12 V batteries. Carefully lift the batteries up to the
compartment, then install them correctly.
7. Route and install the battery cable as shown in Figure 1,
then carefully tighten the nut on each battery terminal.
8. Connect the battery connector (9).
9. Grasp the handle (16) and carefully lower the tank (33).
Battery Charging
10. Fully charge the batteries (see the procedure in
Maintenance chapter).
