MACHINE DESCRIPTION

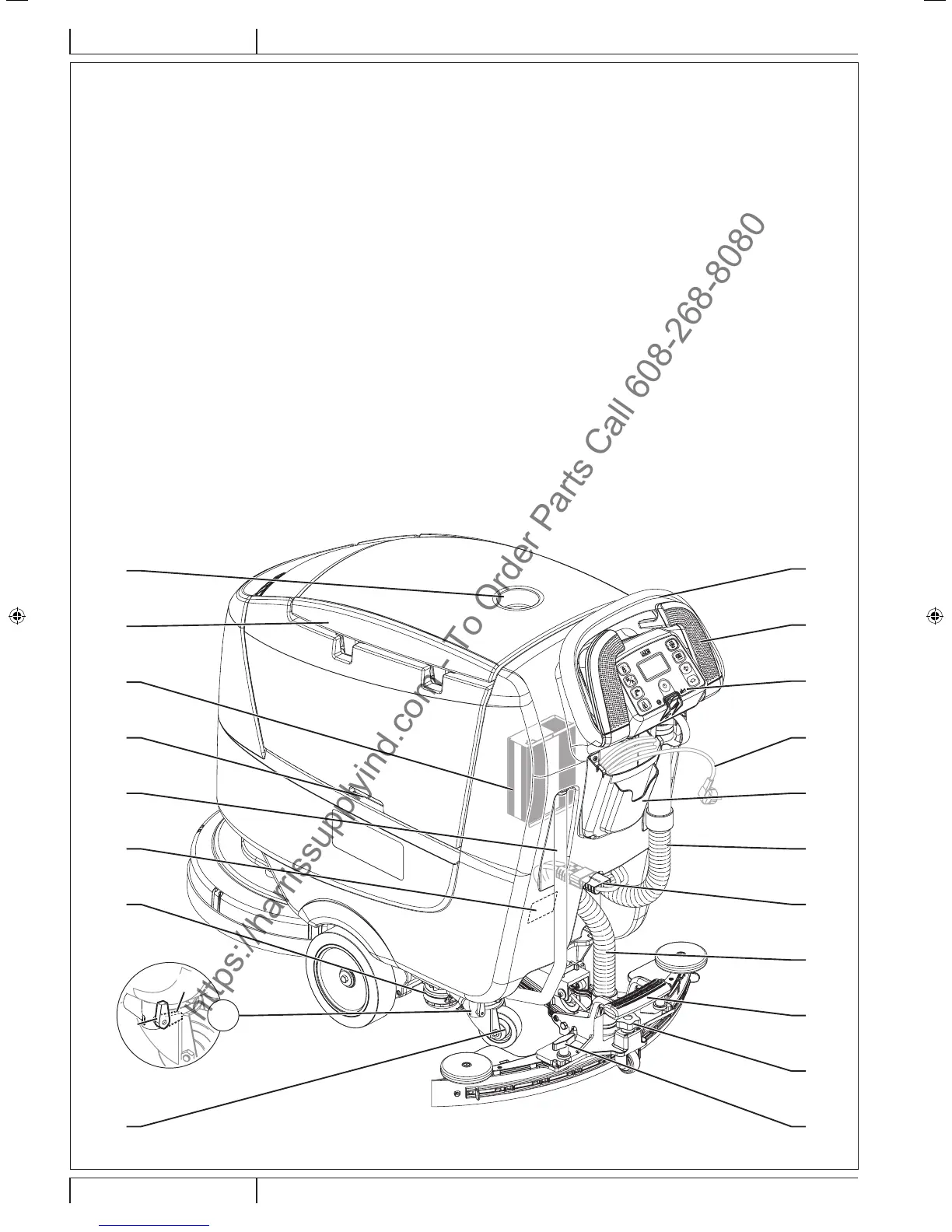

MACHINE STRUCTURE
1. Drive handlebar
2. Forward/reverse gear and activation paddle
3. Control panel
4. Serial number plate/technical data/conformity certication
5. Battery charger
6. Battery charger cable
7. Battery charger cable housing and document holder
8. Squeegee lifting/lowering pedal
9. Battery connector (red).
This connector also works as EMERGENCY push-button,
to stop immediately all functions.
10. Rear pivoting wheels
11. Squeegee vacuum hose
12. Recovery water drain hose
13. Washing water level and drain hose
14. Squeegee mounting handwheels
15. Squeegee adjusting knob
16. Tank lifting handle
17. Washing water lter
18. Washing water tap:
A) Open tap
B) Closed tap
19. Recovery tank cover
20. Can holder
