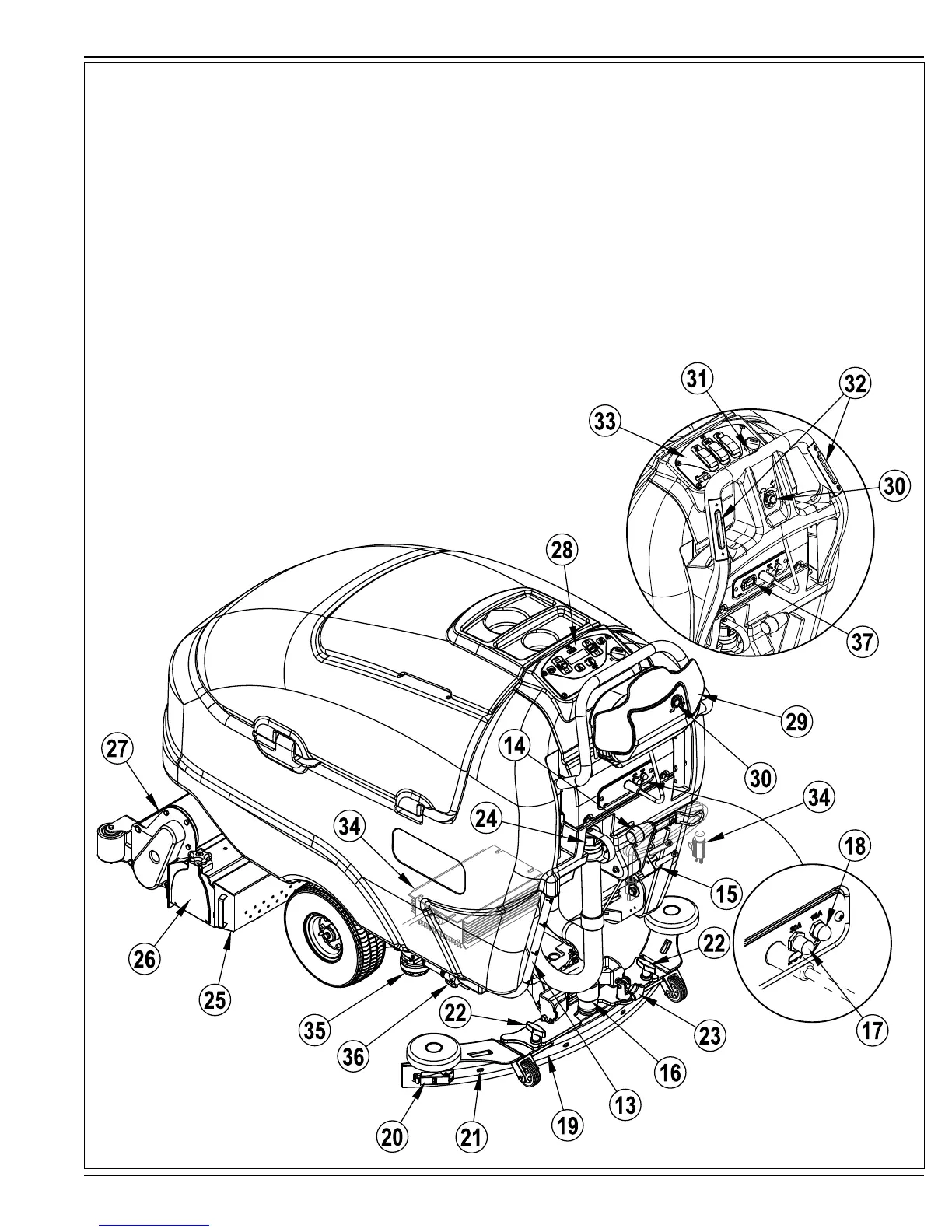

KNOW YOUR MACHINE
13 Solution Drain Hose / Level Indicator
14 Squeegee Raise / Lower Lever
15 Battery Pack Connector
16 Recovery Hose
17 Wheel Drive Circuit Breaker (30 Amp)
18 Control Circuit Circuit Breaker (10 Amp)
19 Squeegee Blade Tension Strap
20 Squeegee Blade Latch
21 Squeegee Blade Alignment Pins
22 Squeegee Mount Thumb Nut
23 Squeegee Adjustment Knob
24 Recovery Tank Drain Hose
25 Debris Hopper (Cylindrical Models Only)
26 Idler Assembly (Cylindrical Models Only)
27 Solution Manifold (Cylindrical Models Only)
28 Control Panel (SC750, SC800)
29 Drive Paddle
30 Speed Limit Control Knob
31 Reverse Button (SC750 ST, SC800 ST)
32 Palm Drive Buttons (SC750 ST, SC800 ST)
33 Control Panel (SC750 ST, SC800 ST)
34 Onboard Battery Charger (Not found on all models)
35 Solution Filter
36 Solution Shut-off Valve
37 Hour Meter (Optional on ST Models)
