Nilfisk-Advance SC800 - Control Panel Overview (SC750 ST, SC800 ST); Key Switch (Main Power); Solution ON;OFF Switch; Solution Flow Indicator

ENGLISH / A-9
FORM NO. - 56041820 - SC750, SC800, SC750 ST, SC800 ST - A-9
ma
x.2%
A
B
F
C
C1
D
D1
B1
E
Cylindrical Scrub
Pressure
(press once)
Regular Disc Scrub
Pressure
(press once)

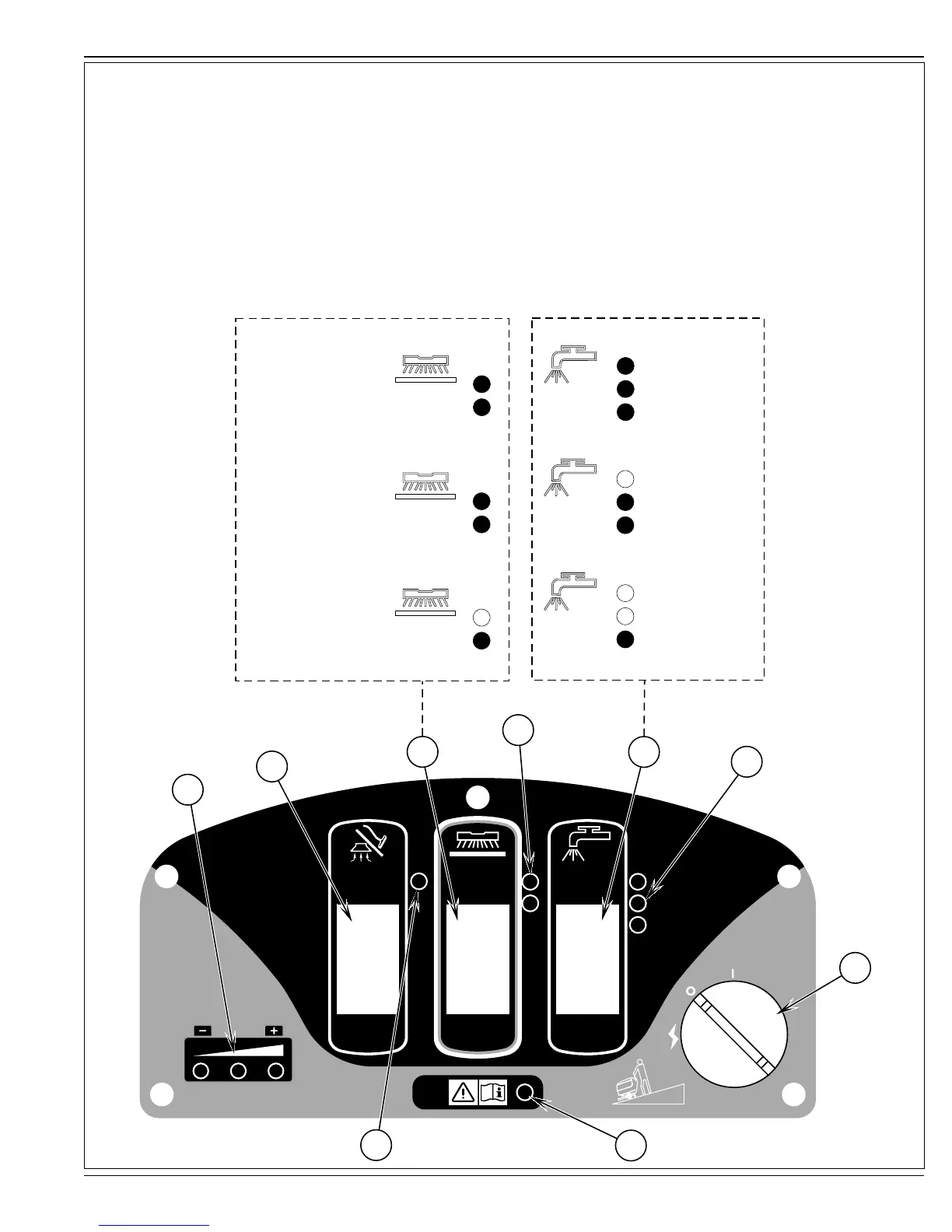

CONTROL PANEL – SC750 ST, SC800 ST
A Key Switch (Main Power)
B Solution ON/OFF Switch (Low, Medium & High)
B1 Solution Flow Indicator
C Vacuum/Wand Switch
C1 Vacuum Motor Disabled Indicator
D Scrub ON/OFF Switch
(Disc System - Regular & Heavy)
(Cylindrical System - 1 Pressure Sensing)
D1 Scrub Pressure Indicator
E Battery Indicator
F Fault Code Indicator
High
Solution
Flow
(press three times)
Medium
Solution
Flow
(press twice)
Heavy Disc Scrub
Pressure
(press twice)
Low
Solution
Flow
(press once)
