40Service Manual – SC900 24 - Electrical System

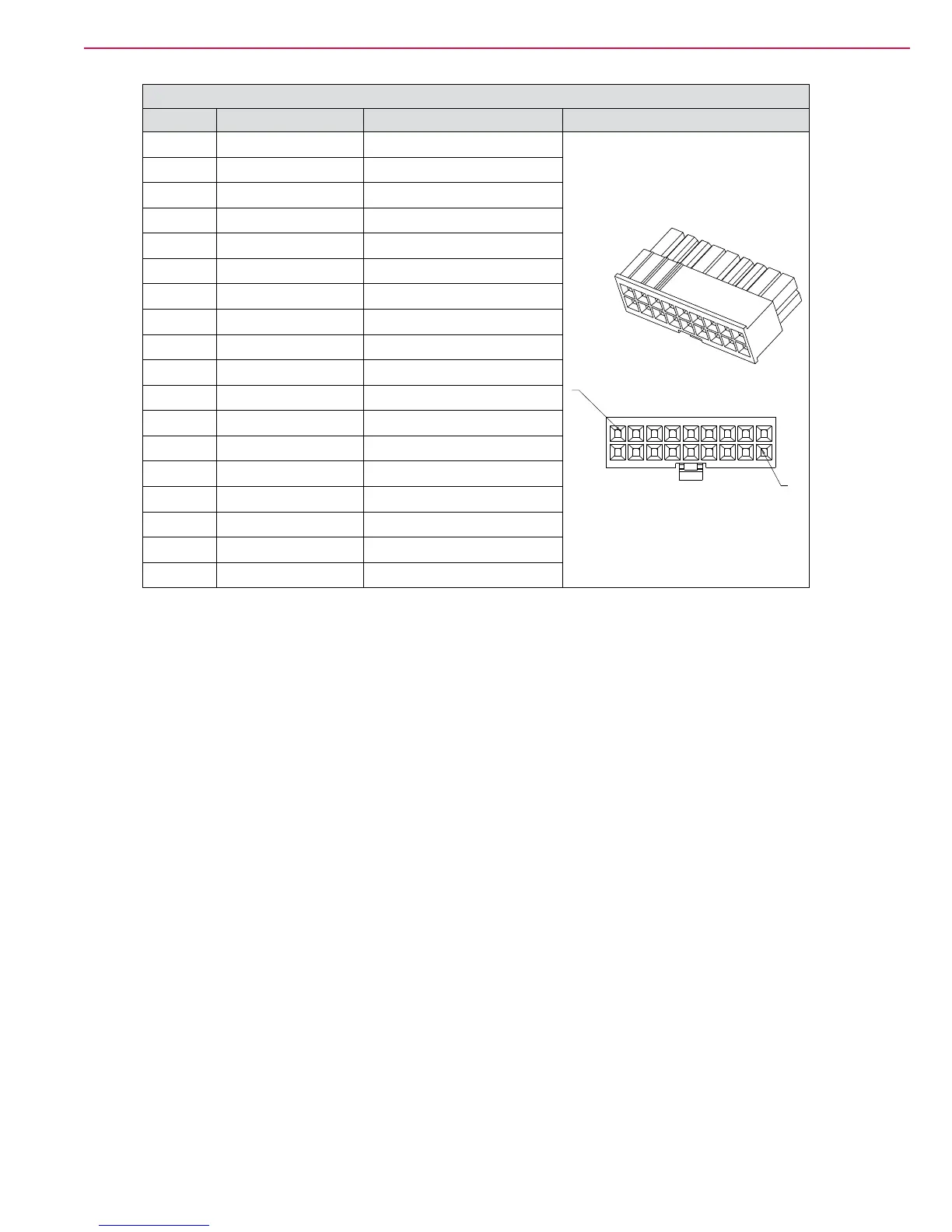

Drive Controller Connector
Pin # Name Wire Color, ID
1
1
18
2
3 Pot High WHT, W019
4 Throttle Pot BLU, W059
5 KSI VIO, W011
6 Brake- PNK-BLU, W023
7
8
9
10
11
12
13 Pot Low YEL, W058
14 Brake+ PNK, W137
15
16
17 Reverse GRY-VIO, W018
18 Speed Pot ORN, W020
