74Service Manual – SC900 40-Recovery System
Removal and Installation

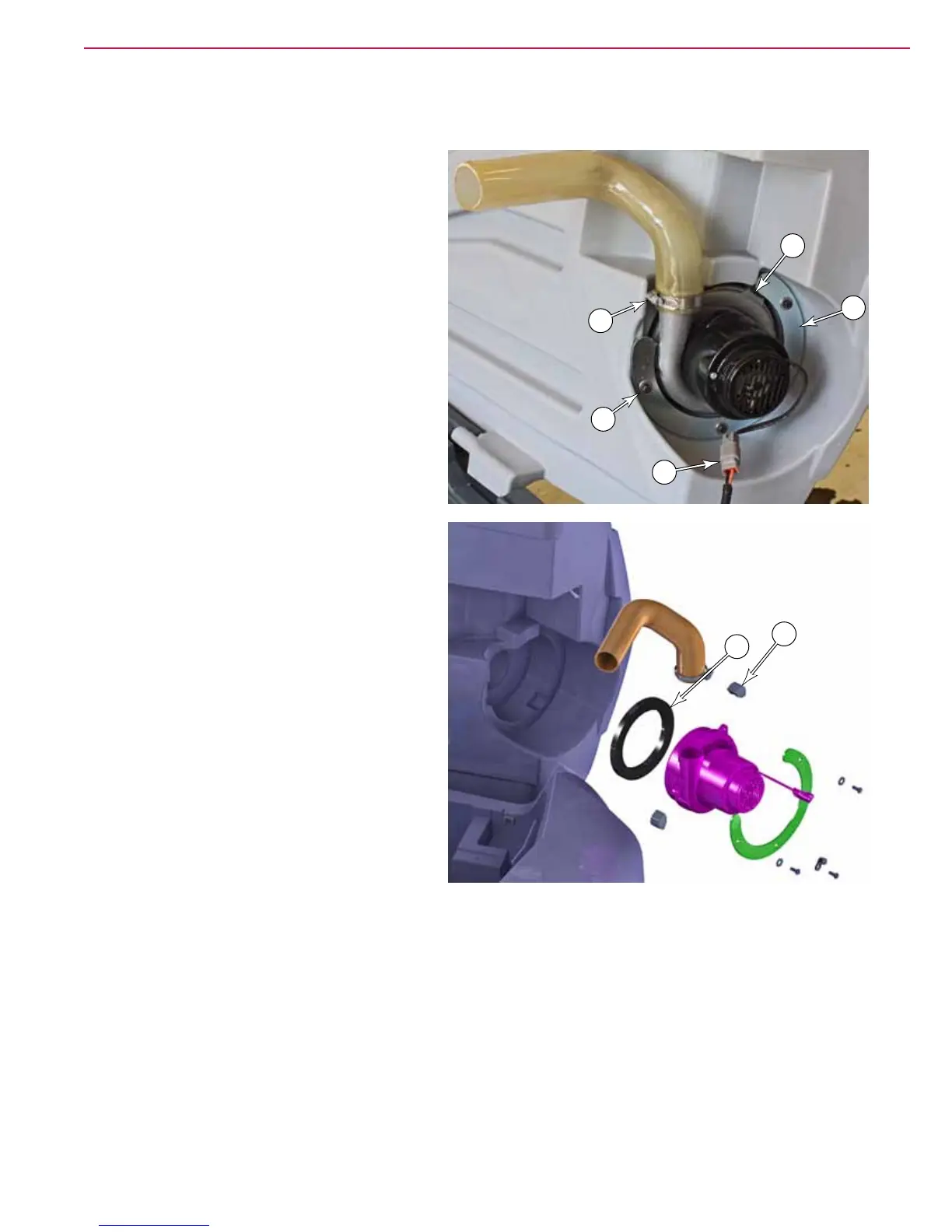

Vacuum Motor
1. Drain the recovery tank and move it to the
open position.
2. Disconnect the vacuum motor cable
connector (C).
3. Loosen the hose clamp (A) on the exhaust
hose, and remove the hose.
4. Remove the three screws and washers (B)
that secure the vacuum retaining plate (D),
and remove the plate and motor. Take care
not to lose the three vibration mounts (E).
5. Inspect the main vacuum gasket (F) for
damage and compressibility, and replace if
necessary. Leaks in this gasket will reduce
recovery system suction.
6. During replacement, make sure the three
vibration mounts (E) are in place on the
motor’s tabs.
A
B
C
D
E
E
F
