59Service Manual – SC900
34 - Scrub System, Cylindrical
Functional Description

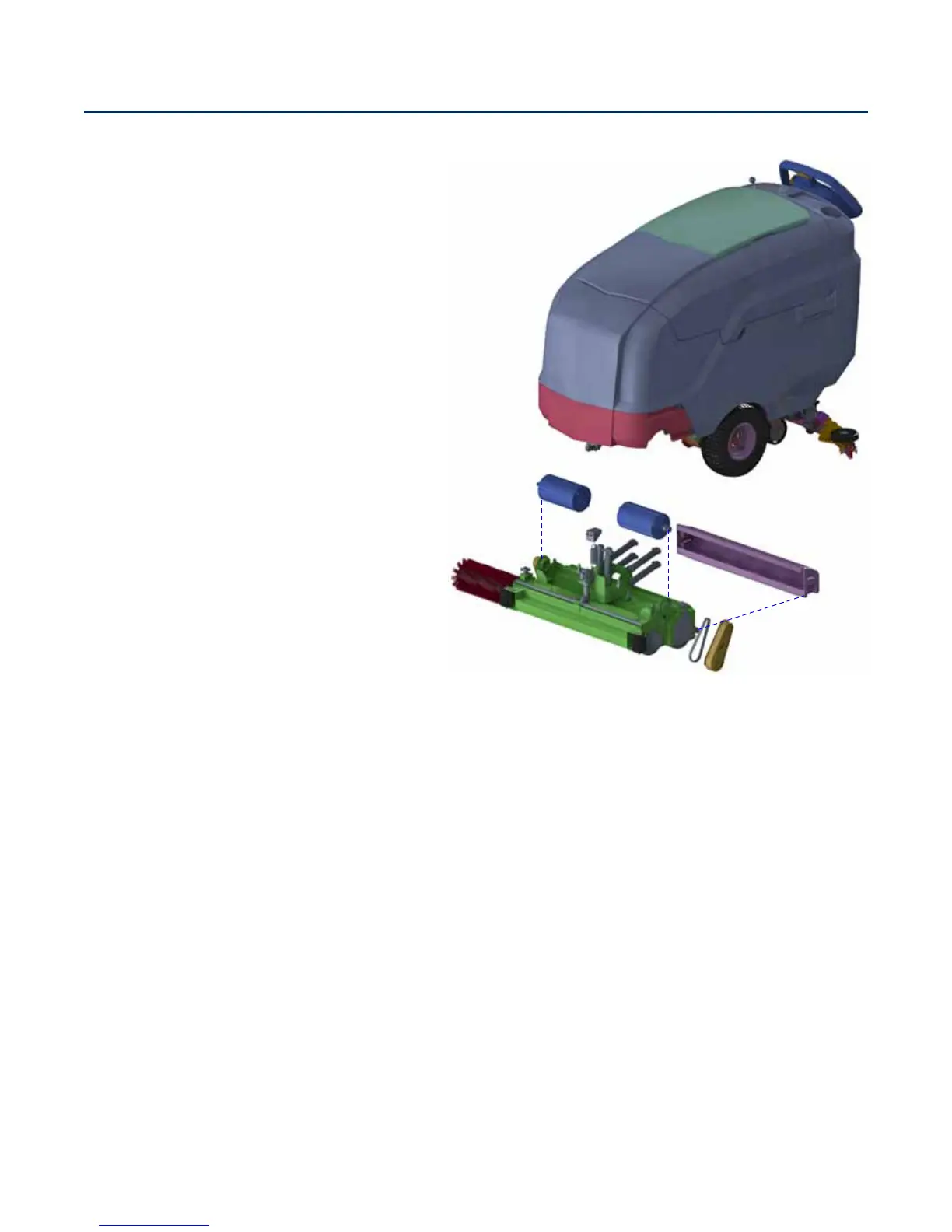

The scrub system consists of a scrub deck that
is raised and lowered with a foot pedal at the
rear of the machine. The two counter rotating
cylindrical brushes are driven by independent
motors and belt drives.
The scrub deck is supported by a parallelogram
linkage to maintain level with the oor at any
height. The deck lift lever can be set in a raised
position, oat, medium, or heavy scrub.
The brush motors are counter-rotating DC
motors. They are relay controlled without
variable speed or soft start.
