105Service Manual – SW5500, FLOORTEC R 985 20 - Wheel System, Traction
Removal and Installation
Driving Wheel
Removal
1. Drive the machine on a level oor.
2. Turn the ignition key to “0”, then engage the parking brake.
3. Position a suitable lifting device (A) at the centre of the front section of the machine, on the chassis
bracket (H), then raise the front of the machine by a few centimeters until the driving wheel can be
removed.
4. For safety purposes, to prevent accidental lowering of the machine, apply two suitable spacers under the
right (C) and left (D) side brackets.
5. Unscrew the six screws (E).
6. Remove the wheel (F).
Installation
7. Assemble the components in the reverse order of removal.

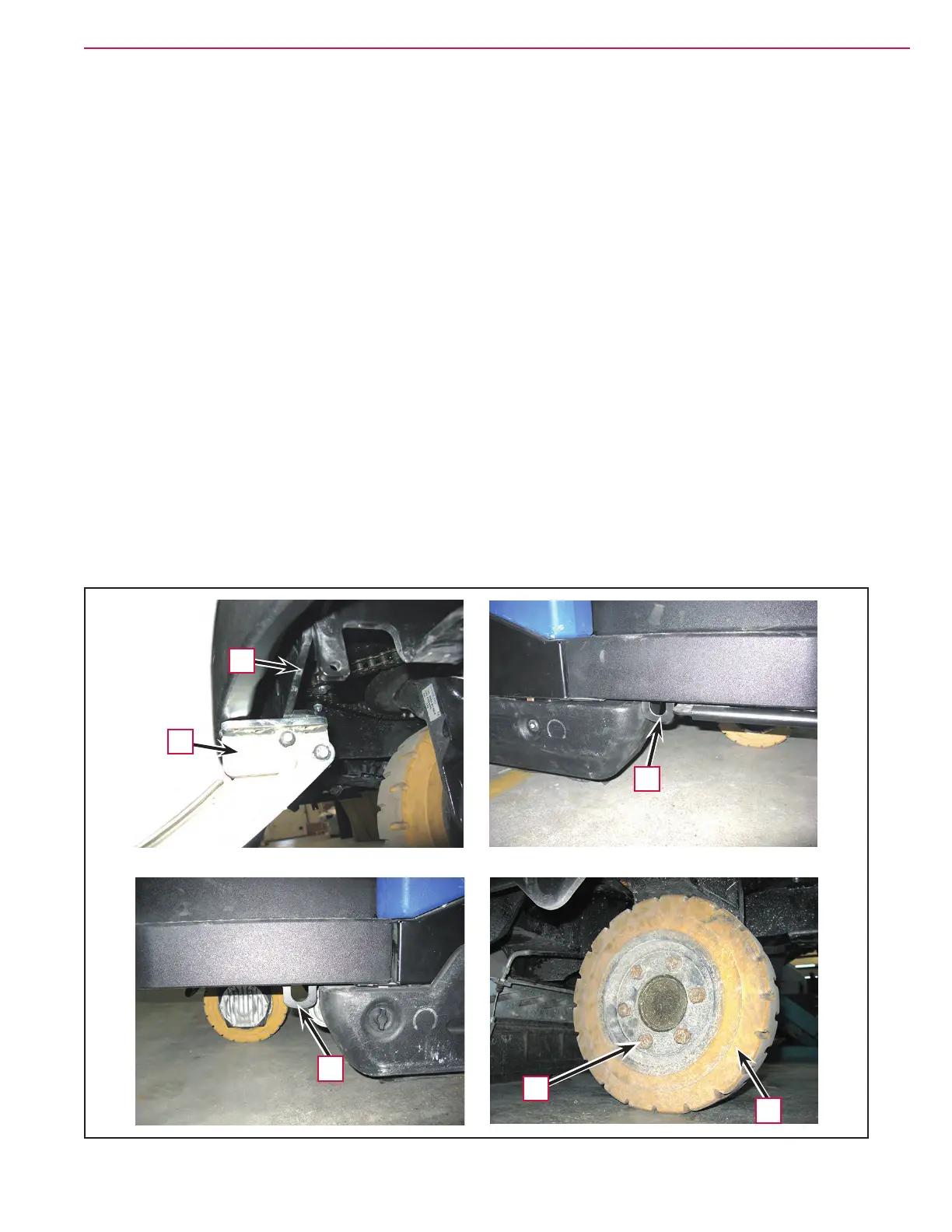

Figure 10:
