281Service Manual – SW5500, FLOORTEC R 985 52 - Hopper System
Lifted Hopper Sensor
Removal
1. Perform the points from 1 to 7 of the Closed Hopper Sensor procedure.
2. Free up and disconnect the electrical connection (F) of the hopper lifted sensor (G).
3. Unscrew the nut (H) and remove the sensor (G) with wiring.
Installation
4. Assemble the components in the reverse order of removal.
Adjustment
5. Adjust the distance (I) between the sensor (G) and the ange (J) to 0,15-0,20 in (4-5 mm), then tighten
the locknut (K) onto the nut (H).

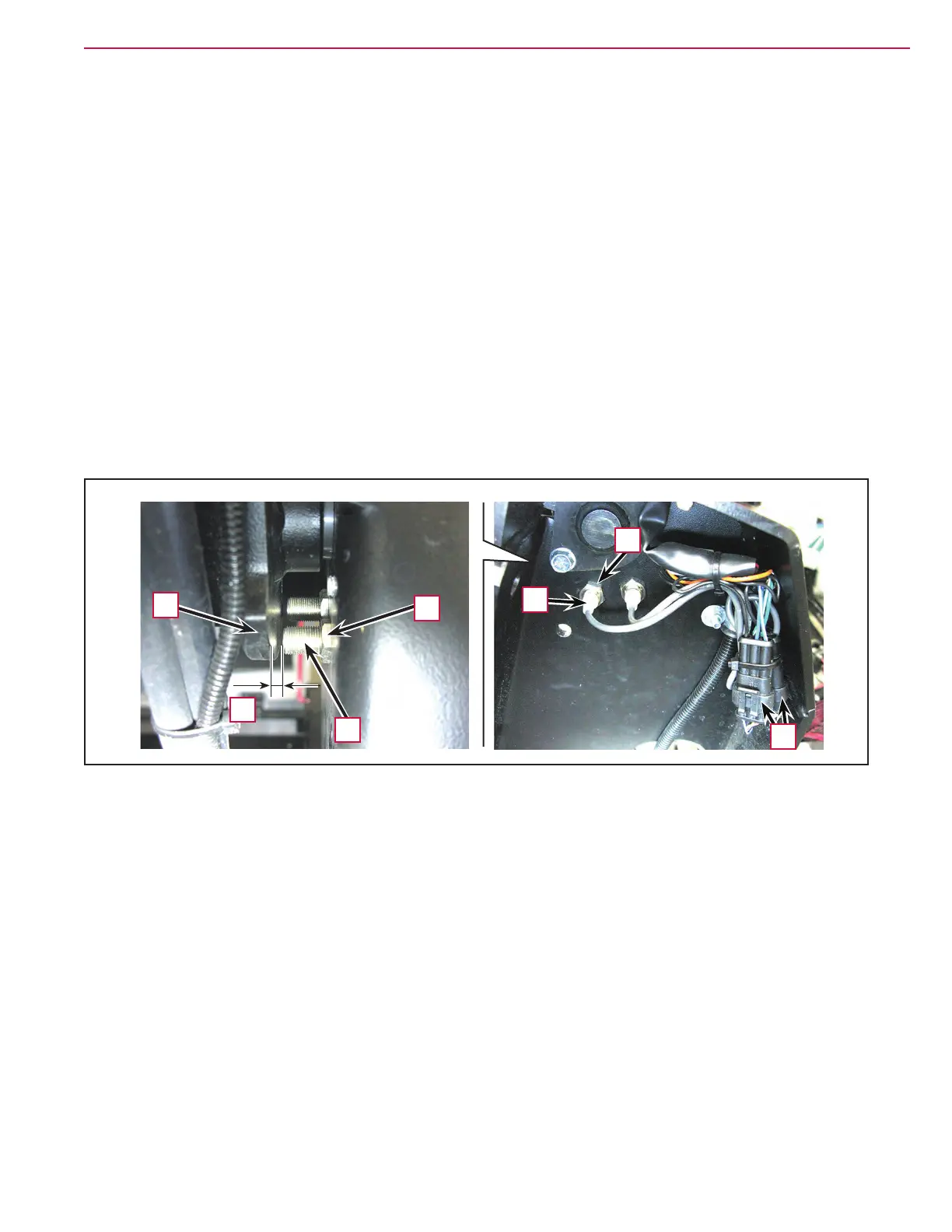

Figure 13:
G
K
J
G
H
F
I
