275Service Manual – SW5500, FLOORTEC R 985 52 - Hopper System

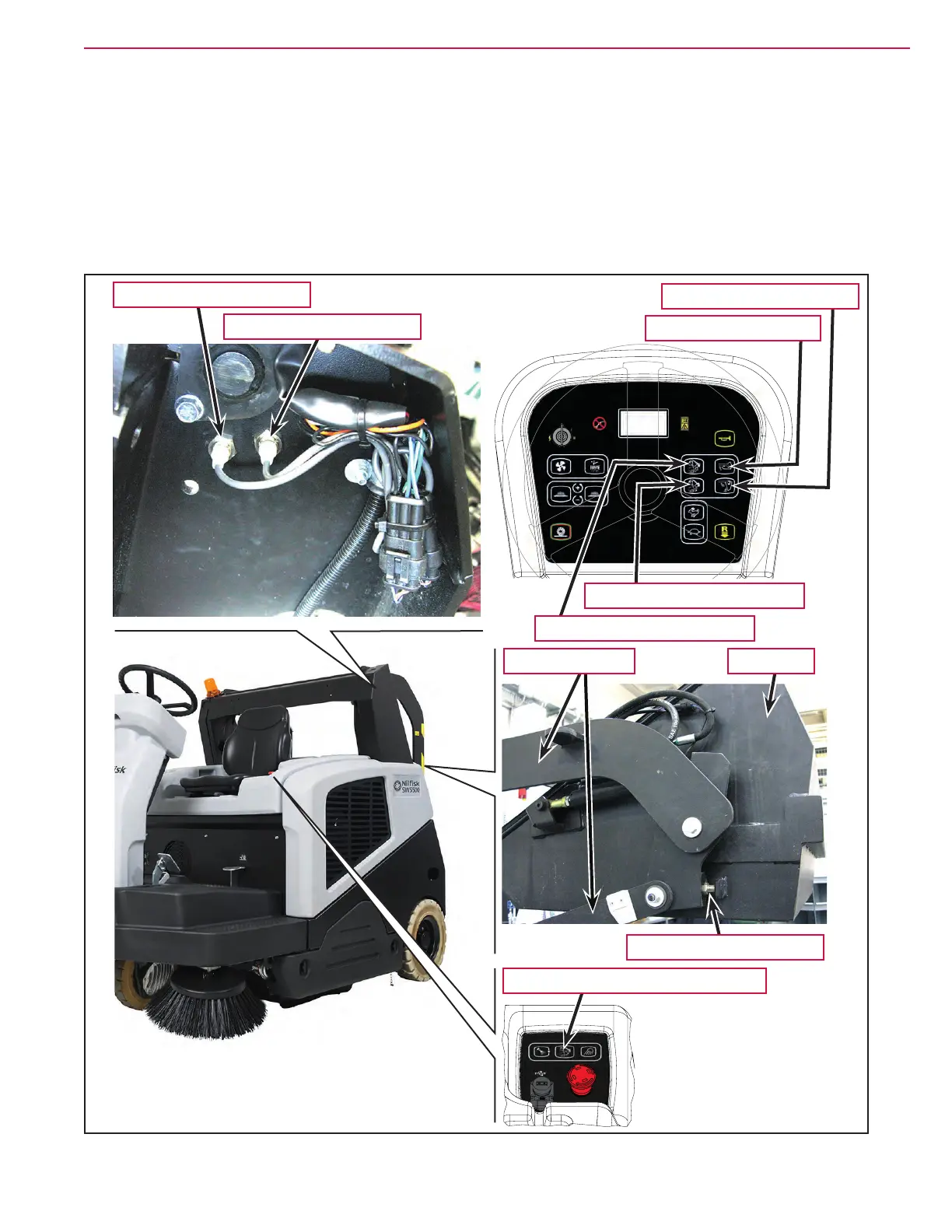

Component Locations
• Hopper movement enabling button
• Hopper lifting button
• Hopper lowering button
• Hopper dumping button
• Hopper reset button
• Closed hopper sensor (S1)
• Hopper lifted sensor (S2)
• Hopper dumping sensor (S3)
• Hopper linkages
• Hopper
Figure 8:
Hopper reset button
Hopper dumping button
Hopper lowering button
Hopper lifting button
Hopper lifted sensor (S2)
Closed hopper sensor (S1)
Hopper
Hopper linkages
Hopper dumping sensor (S3)
Hopper movement enabling button
