265Service Manual – SW5500, FLOORTEC R 985 51 - Dust Guard System
Removal and Installation
Dust Guard System Water Pump
Removal
1. Drive the machine on a level oor.
2. Turn the ignition key to “0”, then engage the parking brake.
3. Open the battery/engine compartment hood with the handle and fasten it with the support rod.
4. Disconnect the battery connector (Battery Version) - Disconnect the batteries (Diesel and LPG Version).
5. Lift and remove the left side panel, disengaging it from the upper and lower fasteners.
6. Disconnect the pump (B) electrical connection (A).
7. Cut the cable clamp (C).
8. Loosen the clamps (D) and disconnect the lines (E) from the pump.
9. Unscrew the screws (F) and remove the pump (B).
Installation
10. Assemble the components in the reverse order of removal.

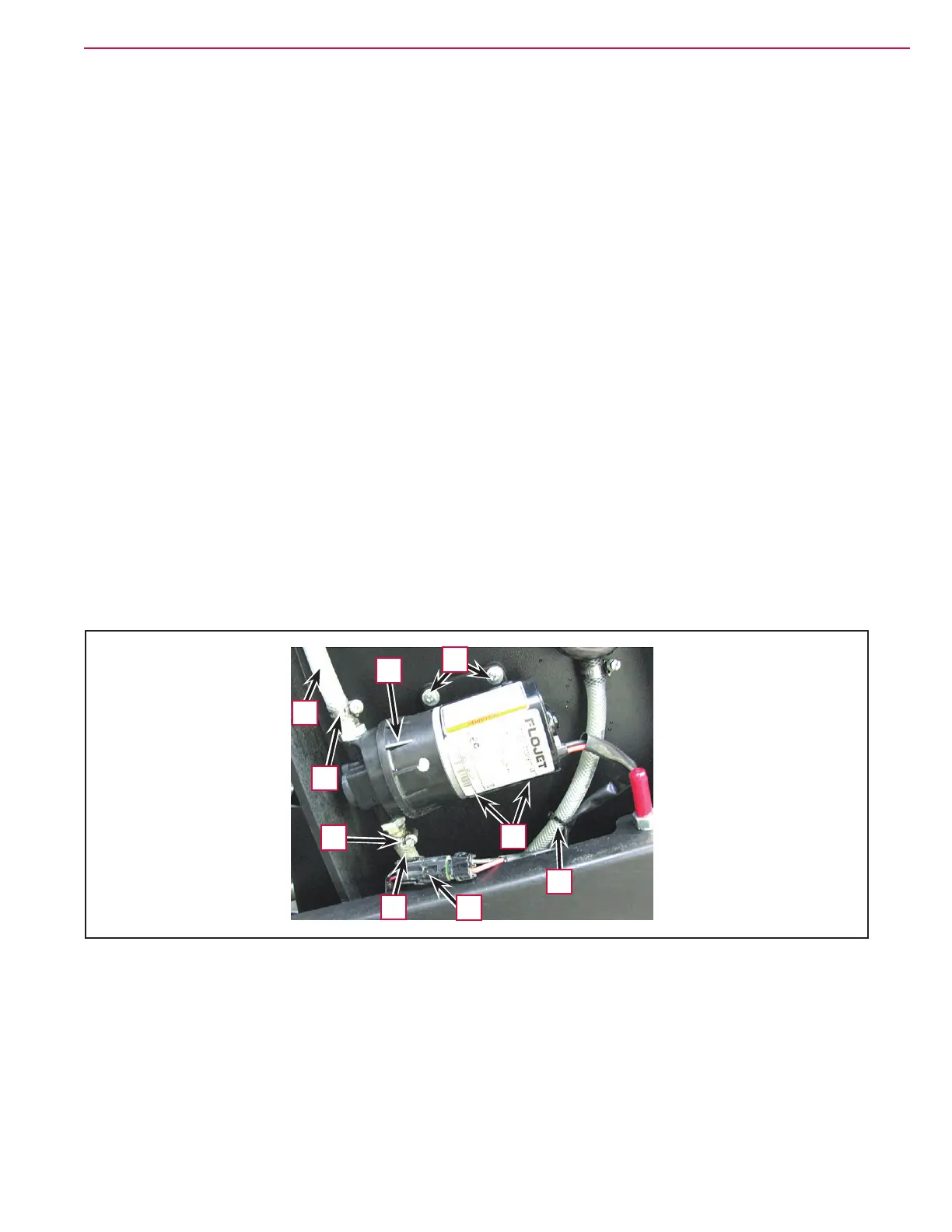

Figure 6:
B
E
D
F
D
E
A
F
C
To Next Page
