150Service Manual – SW5500, FLOORTEC R 985 28 - Engine System, Diesel

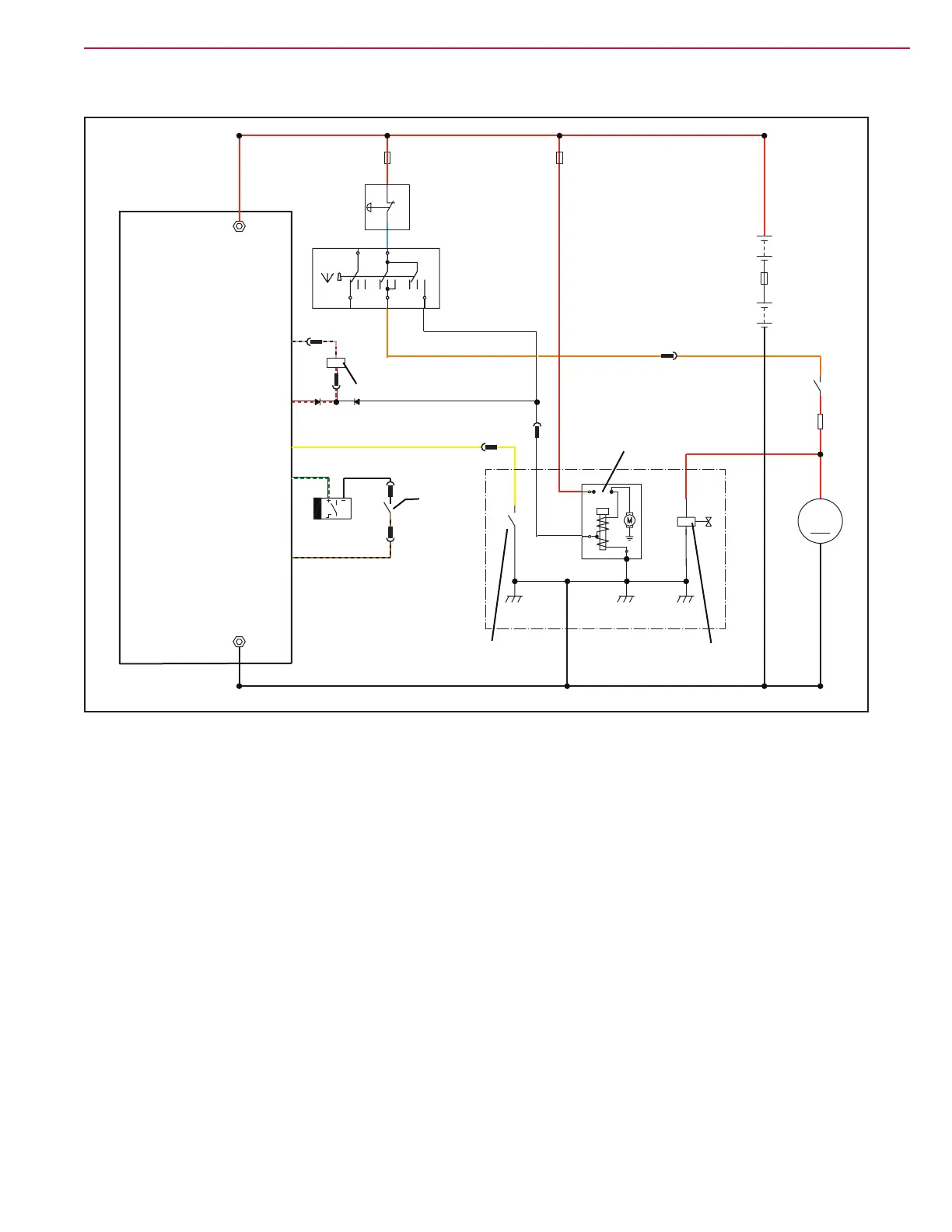

Wiring Diagram
J2.6FUEL PUMP / VALVE output
J2.14Common power supply + signal output
J1.18LOW ENGINE OIL input
30/1
15 5015/54
30
P0 P1 P2
ENGINE SUPPLY RELAY (ES7)
ENGINE SUPPLY RELAY (ES7)
FUEL SOLENOID
VALVE (EV4)
BATTERY FUSE (F0)
ENGINE FUSE (F5)
STARTER
FUEL PUMP MOTOR
OIL
SENSOR (S7)
DIESEL ENGINE
BATTERIES (BAT)
KEY CIRCUIT FUSE (F2)
EMERGENCY
PUSH-BUTTON (SW0)
P2
KEY (KEY)
J1.9Signal power supply
FUEL
RESERVE
SENSOR (S6)
J1.8FUEL RESERVE input
B+
Main machine controller power supply +
B- Main machine controller power supply -
MAIN MACHINE
CONTROLLER (EB1)
Figure 1:
To Next Page
