BATTERY TYPE SETTING (WET OR GEL/AGM)
Set the electronic board of the machine and the battery charger
according to the type of batteries installed (WET or GEL/AGM)
as shown below:
Machine setting
1. Disconnect the battery connector (29).
2. The machine factory setting is for GEL/AGM batteries. If
this setting corresponds to the type of batteries installed,
go to step 6. Otherwise, perform steps 3, 4 and 5 too.
3. Remove the screws (A, Fig. 1), then remove the cover (B)
of the electrical component box (25).
4. On the electronic board, turn the microswitch (C) to WET
position.
WARNING!
Do not move/set the adjacent switch (D).
5. Reinstall the electric component box cover (B) and tighten
the screws (A).
Battery charger setting
6. To set the battery charger, refer to the relevant Manual
supplied with the machine.
A
A
B
CD

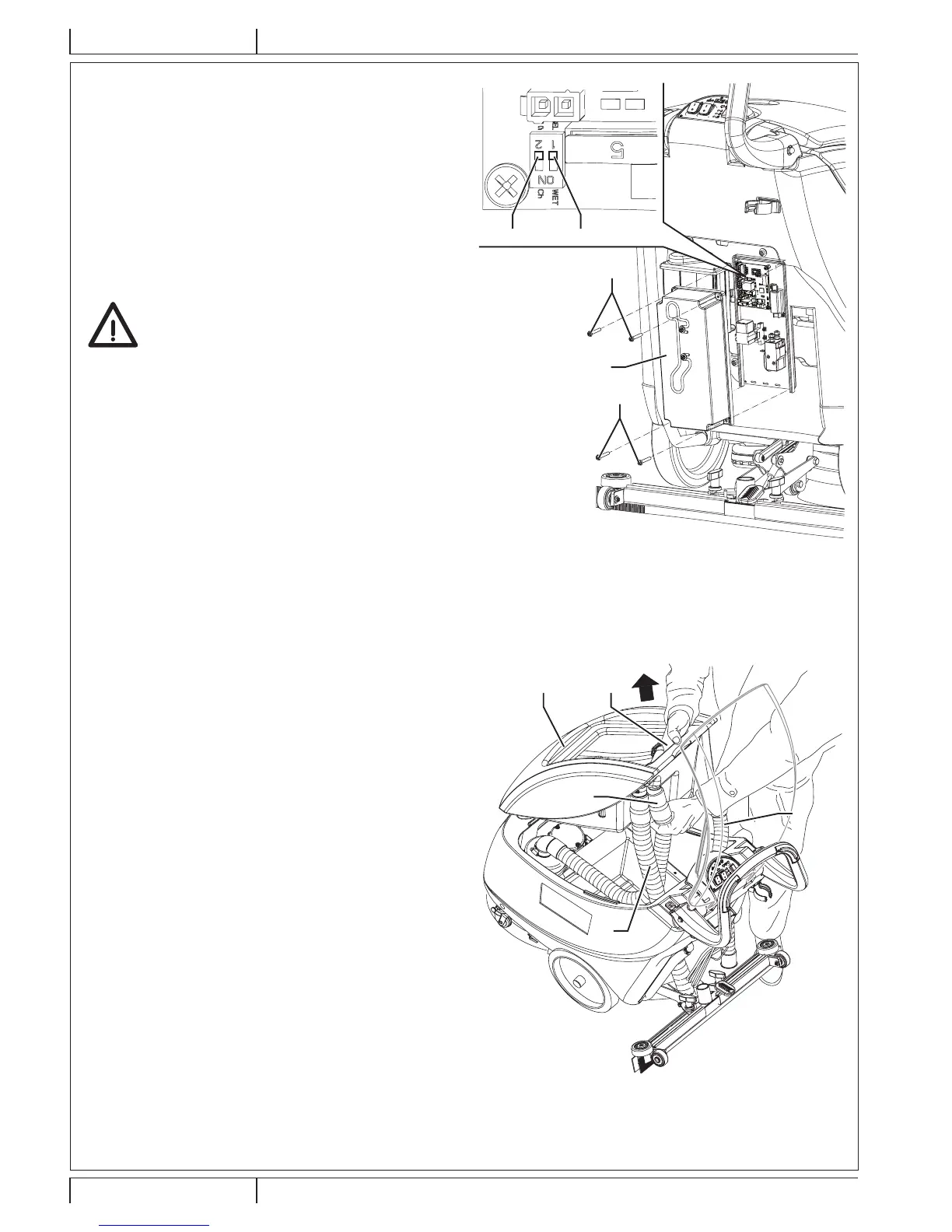

Figure 1
P100640
Battery installation
7. Disconnect the vacuum hose (22) from the squeegee (11).
8. Disconnect the recovery water drain hose (16) from the
bracket (17).
9. Open the cover (6).
10. Grasp the recovery tank (A, Fig. 2) in the area (B) and
slightly raise it.
11. Disconnect the vacuum hose (C) from the tank, then
remove the tank (A) with the hoses (D) and (E).
12. Install the batteries on the machine according to the
diagram (51).
13. Install the tank (A) by performing steps 7 to 11 in the
reverse order.
Battery charging
14. Charge the batteries (see the procedure in Maintenance
chapter).
BA
C
D
E
Figure 2
P100641
