Integral Installation

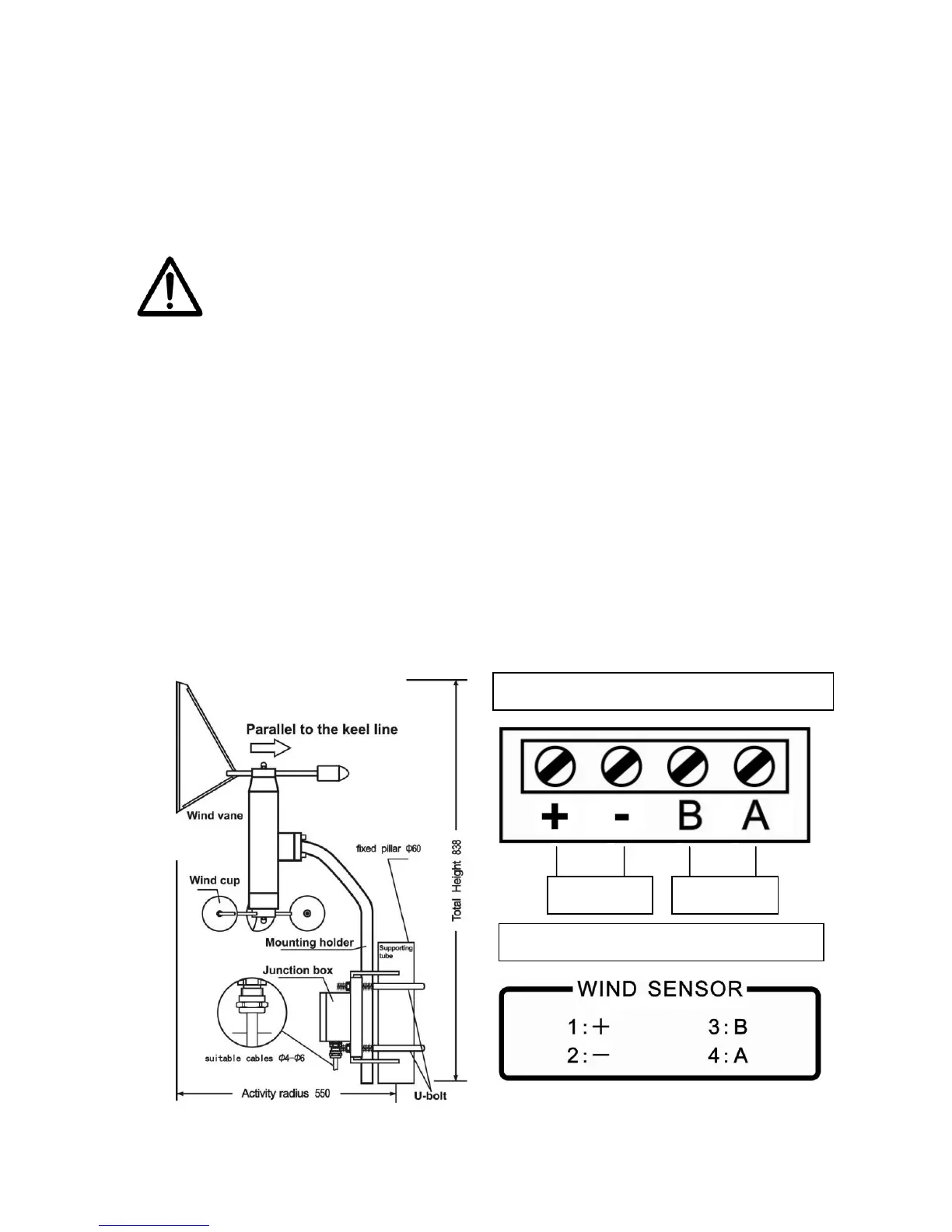

[ Space and location ] The total height of wind sensor is 838mm. It should
be horizontally installed on the ventilated place of ship and the action radius
of wind indicator and wind cup is over 550mm.
Please note, big Radar antenna rotation can disturb
the wind measurement. Find a location away from
Radar.
[ Integral fixation ] Use U-bolt in the accessory to fix wind sensor and the
best option of supporting tube diameter is 60mm.
[ Wiring ] 4-core screened cable with external diameter 4mm~6mm is
connected with 4 terminals +、-、B、A through glands of junction box.
Please pay attention on wire colors and sequence in order to correctly
connect the wiring terminals of back cover, 1+ 2- 3B 4A.
[ Calibration ] After the installation of main unit of wind sensor, do the
calibration of wind direction based on Calibration.
