29

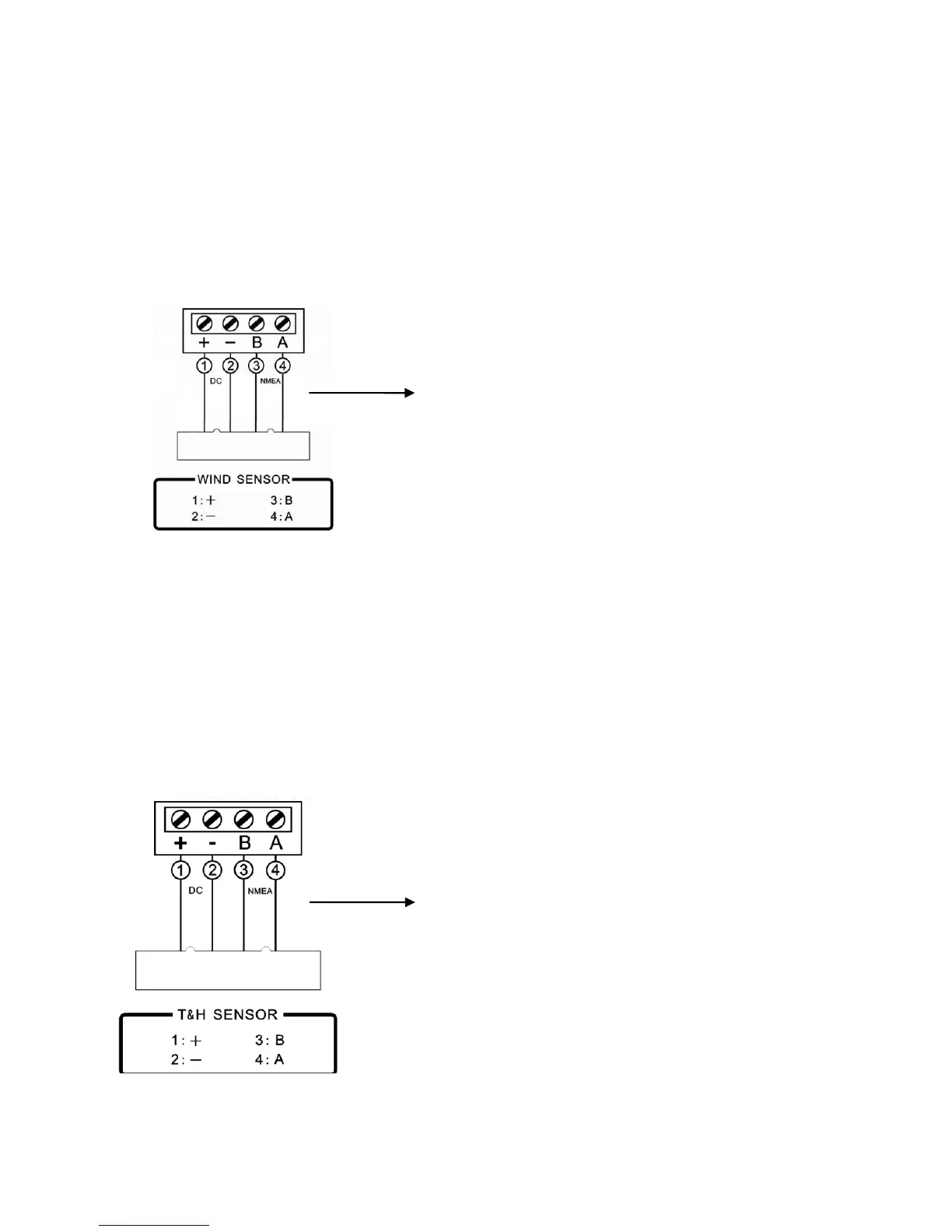

Wind sensor AM706S - Main unit AM706D
4-core screened cable with external diameter 4mm~6mm is connected with 4
terminals +、-、B、A through glands of junction box. Please pay attention on
wire colors and sequence in order to correctly connect the wiring terminals of
back cover, 1+ 2- 3B 4A.
TMP and HUM sensor AM706TH-Main unit AM706D
4-core screened cable with external diameter 3mm~6mm is connected with 4
terminals +、-、B、A through glands of junction box. Please pay attention to
wire colors and sequence in order to correctly connect the wiring terminals of
back cover, 1+ 2- 3B 4A.
