2-6 Handle the head

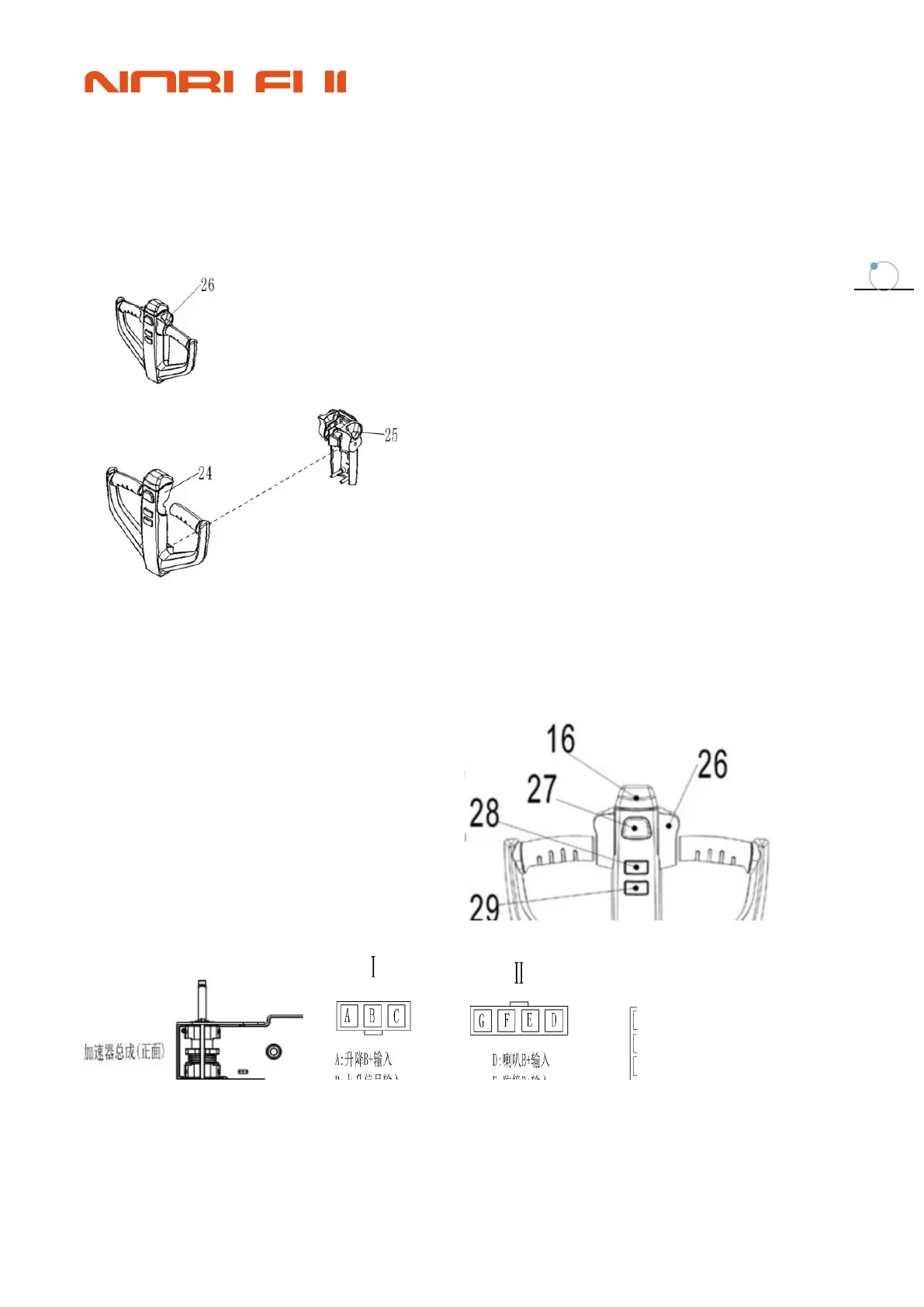

2-6-1 appearance
2-6-2 function
Handle head through up and down button, belly switch, turtle speed button,
Accelerators and combination locks fight with controllers to control some of the vehicle's actions。
A Combination lock（18）
A Up and down（28,29）
B Belly switch（16）
C accelerator（26）
D Turtle speed switch（30）
E Horn switch（27）
2-6-3 Handle head detection
1 a multimeter is used to measure the Ⅲ resistance between 4 and 5 feet.
Nominal resistance:120.0Ω
Use a multimeter to measure the on and off of belly switch and horn switch. If the CAN
resistance is not correct, please replace the handle.
