Noblelift PS E12B - Removal and Installation; Handle Proximity Switch Removed and Installed; Handle Air Spring Removed and Installed; Handle Removed and Installed

41
2-6-4 Removal and installation
Preliminary steps
1 Remove the shell to access the vehicle interior
2 Turn off the key switch and emergency stop switch.
program
1.Remove the fixing screw of the lower cover of the handle and disconnect the cable to remove
the lower cover of the handle (25)
2 Remove the handle upper cover fixing screw to remove the handle upper cover (24)
Perform the above steps in reverse order to install the handle head assembly (26).

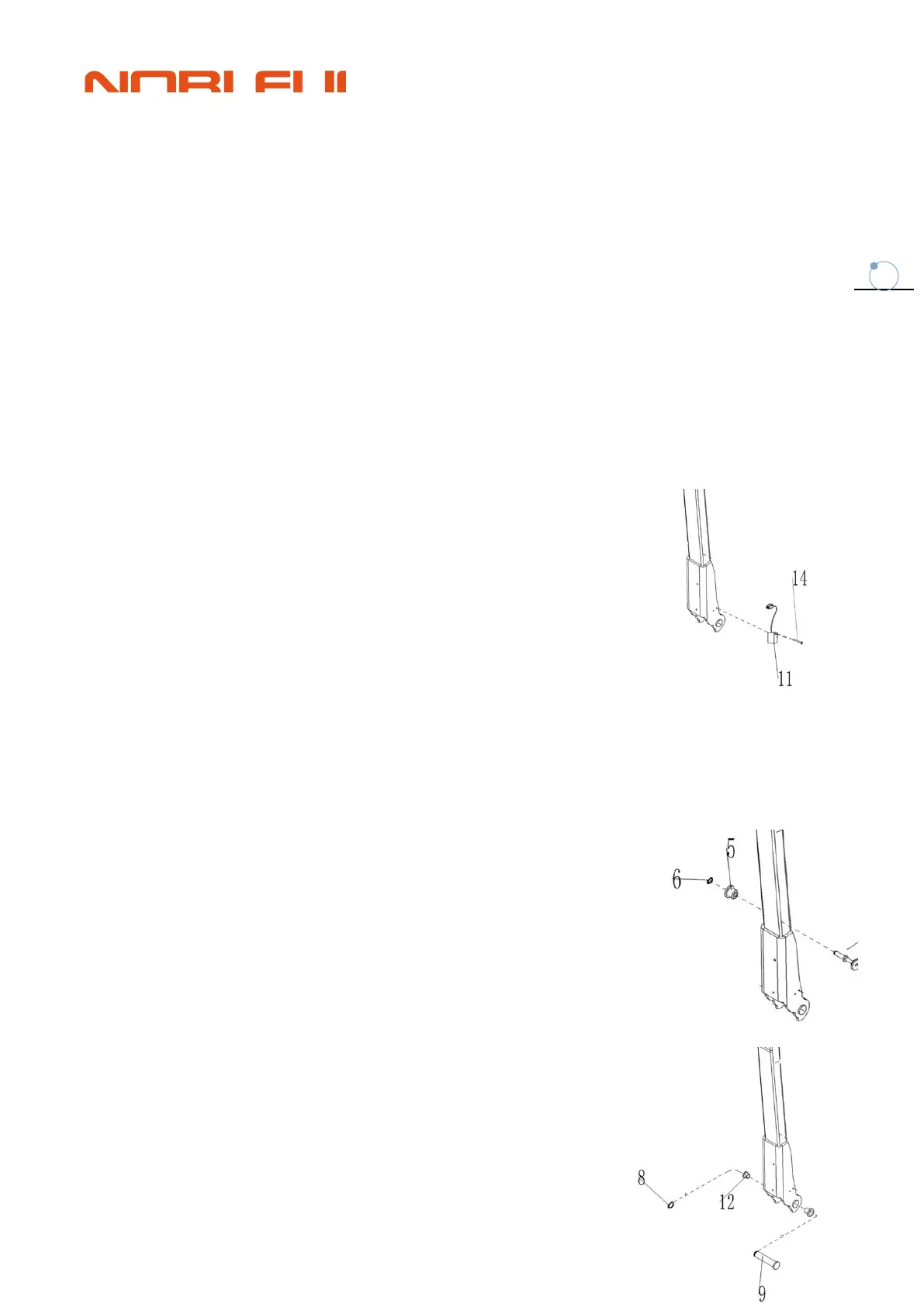

2-6-5 Handle proximity switch removed and installed
Preliminary steps
1 Safe parking。
2 Close the key switch and emergency stop switch。
program
1 Press down the handle to disconnect
the harness of the proximity switch。
2 Remove the retaining screw (14) of the proximity
switch and remove the proximity switch.
Follow the steps above in reverse order to
install the handle proximity switch (11).
2-6-6 Handle air spring removed and installed
Preliminary steps
1 Safe parking。
2 Close the key switch and emergency stop switch。
Program
1 Press down the handle to disconnect the proximity
switch from the handle harness。
2 Remove the fixing screw at the lower end of the
air spring (10)。
3 Remove the fixed shaft retainer (6) and the fixed shaft
(4) to remove the air spring (7).
Install the handle air spring in reverse order.
2-6-7 Handle removed and installed
Preliminary steps
