4-3 Hydraulic oil tank and filter

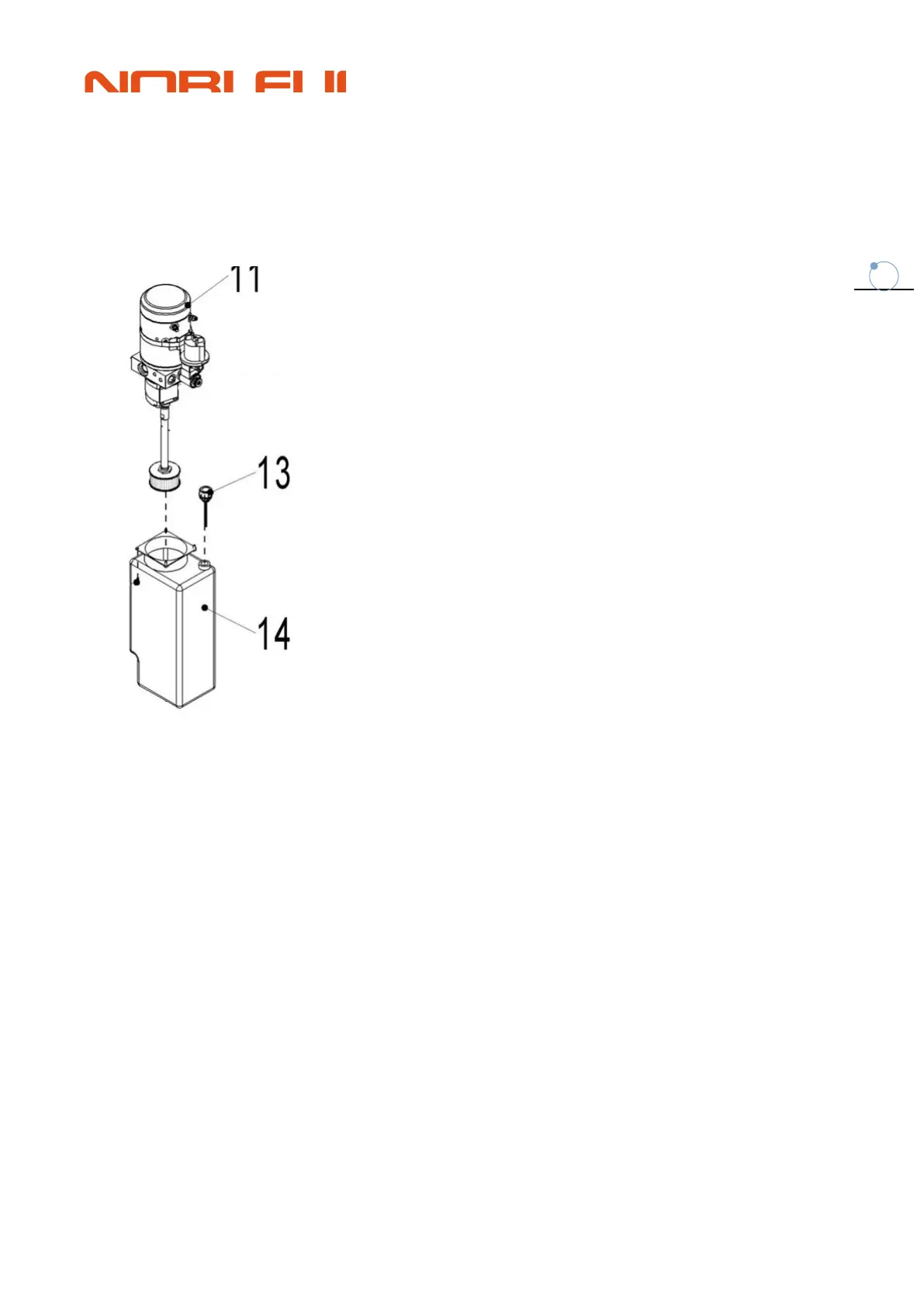

4-3-1 appearance
4-3-2 Replacement of hydraulic fluid and filter
Preliminary steps
1. When the fork reaches the top, press the drop button several times to eliminate residual pressure
in the hydraulic system
2. Open the case and disconnect the battery.
3. Prepare and oil pan.
Program
1. Remove the pump station assembly (see 4-2-3 for details).
2. Remove the 4 fixing screws of the fuel tank and pump station.
3. Loosen the fastening screw of the fuel tank.
4. The hydraulic oil can be poured out after pulling up the pump station.
5. Replace the filter as needed.
Perform the above steps in reverse order to assemble the fuel tank and filter.
