6 steering system
6-1 Overview
The steering system is a set of devices that steer the vehicle left or right. In this vehicle model, the
steering system is mechanically structured and consists of a handle rotation shaft (20) and a drive
rotation shaft (6), which are connected by a steel wire chain (7).

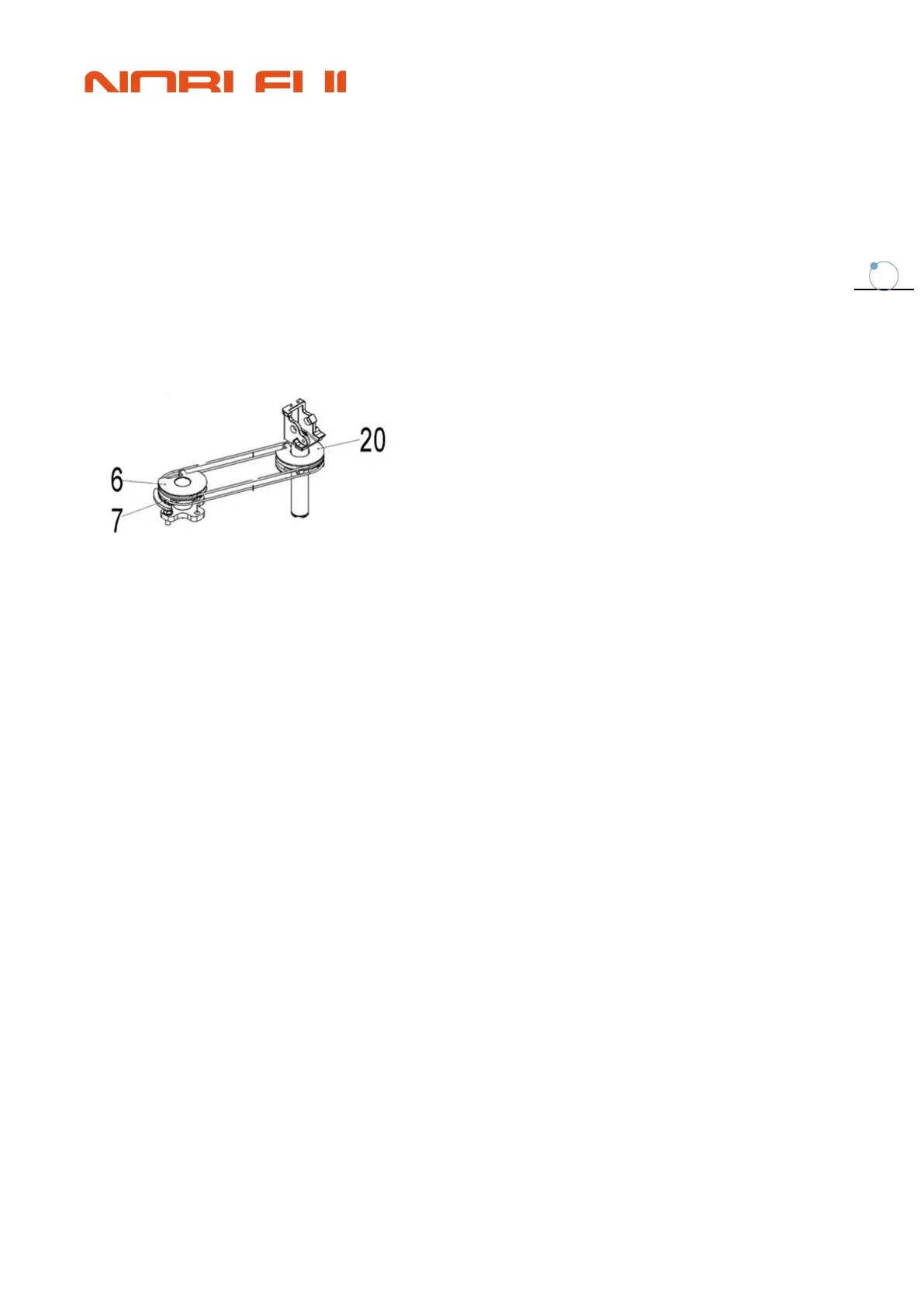

6-1-1 appearance
6-1-2 How does this work
A. Steering control mechanism
Once the handle steering shaft (20) rotates, the drive steering shaft (6) is connected to the handle
steering shaft with a wire rope (7). The wire rope is divided into two upper and lower wires to
connect them。
B. Neutral position
When the steering shaft of the handle is in neutral, the wire rope connecting them is in a
non-stressed state。
C. Turn left
When the steering shaft of the handle rotates, the lower wire rope connecting them rotates, and at
the same time, the steering shaft is driven to rotate. If the rotation is not synchronized, please
tighten the lower wire rope。
D. Turn right
When the steering shaft of the handle rotates, the upper wire rope connecting them rotates, and at
the same time, the steering shaft is driven to rotate. If the rotation is not synchronized, please
tighten the upper wire rope。
