Nokia 2300 Service Manual

nokia
CONNECTING PEOPLE
PAGE 9 (21) Approved 1.0
Customer Care EMEA DJk
Technical Services Confidential 26.01.2004
Repair Concepts
Service Manual 2300 Level 1&2 Copyright 2003-2004 © Nokia Corporation

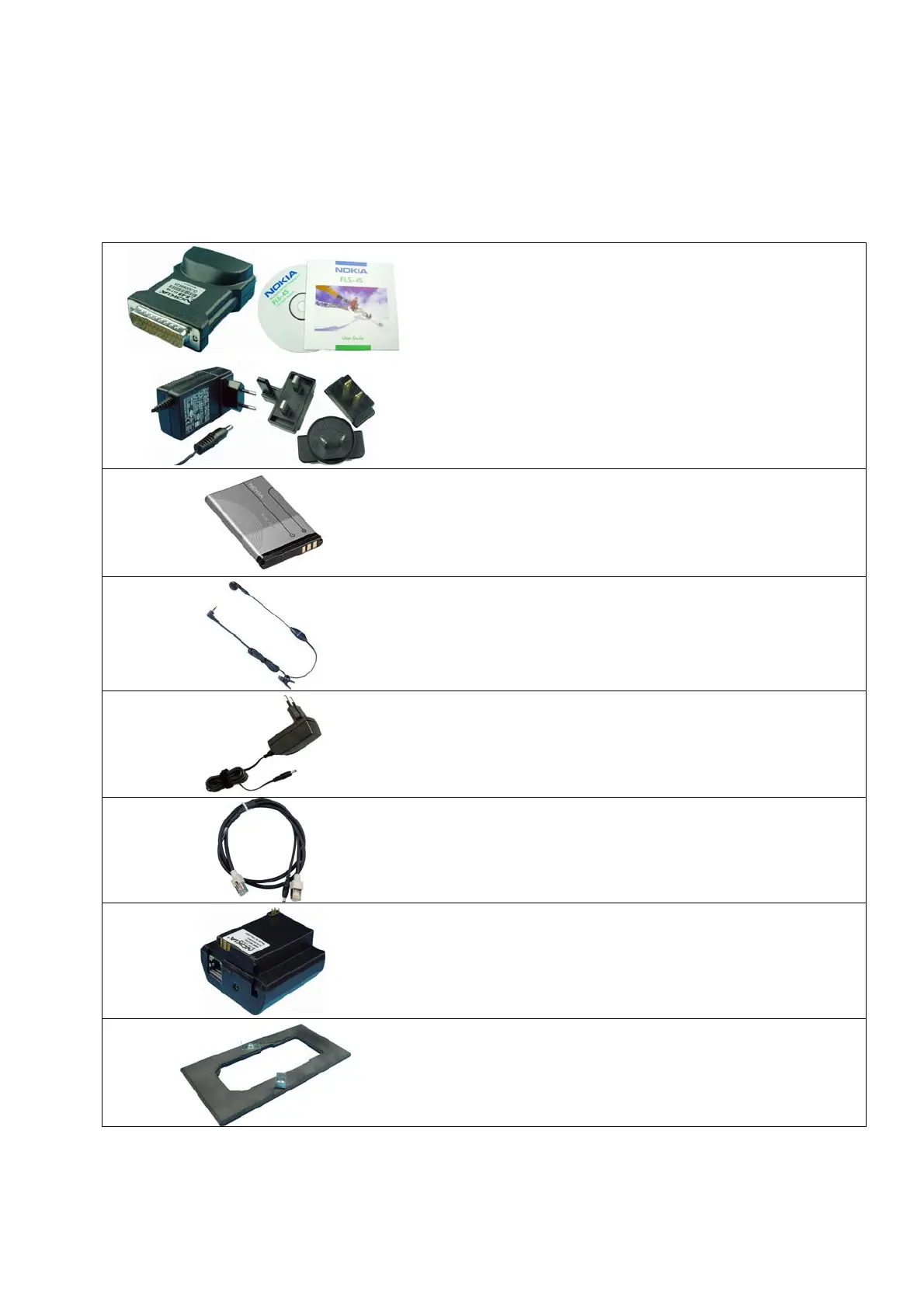

6. SERVICE TOOLS
0080541 FLS-4S incl. Driver and User Guide
is a dongle and flash device incorporated into one package,
developed specifically for POS use.
0680032 ACF-8
Universal Power Supply is used to power FLS-4S.
0273558 Internal Battery BL-5C
Inserted under the back cover, this Li-ion battery provides
power in a lightweight package.
0271467 Headset HDC-5
An easy and convenient handsfree solution with remote
control.
0272169 Travel Charger ACP-8E
0272172 Travel Charger ACP-8X
Lightweight multi-voltage charger for charging your phone
battery.
0730218 XCS-1
Service Cable is used to connect FLS-4S to SF-10.
0770748 SF-10
POS Flash Adapter is used in POS (Point of Sales)
environment for software updating. It provides controlled
supply voltage and necessary connections between the
phone and the Flash Device. It substitutes for the phone’s
standard battery during the software update.
0770740 RJ-12
Soldering Jig (for Level 2 or higher service level supplier)

Nokia 2300 Specifications

General

Network Technology	GSM
2G bands	GSM 900 / 1800
EDGE	No
SIM	Mini-SIM
Status	Discontinued
Display type	Monochrome graphic
Resolution	96 x 65 pixels
Memory Card slot	No
Phonebook	Yes
Call records	10 dialed, 10 received, 10 missed calls
Loudspeaker	No
3.5mm jack	No
Messaging	SMS
Clock	Yes
Alarm	Yes
Java	No
SMS to many	Yes
Calculator	Yes
Stopwatch	Yes
Weight	92 g
Sound Alert types	Vibration
Predictive text input	Yes
Battery type	BL-5C
Dimensions	107 x 46 x 20 mm, 81 cc (4.21 x 1.81 x 0.79 in)
