Nokia 2300 Service Manual

nokia
CONNECTING PEOPLE
PAGE 21 (21) Approved 1.0
Customer Care EMEA DJk
Technical Services Confidential 26.01.2004
Repair Concepts
Service Manual 2300 Level 1&2 Copyright 2003-2004 © Nokia Corporation
17. ESD PROTECTION REQUIREMENTS
Please refer to the Partner Web Site document
Service Partner Requirements in folder General instructions.
USE Conductive bags and boxes
USE ESD compatible service tools
USE Conductive wastebaskets
USE ESD gloves when handling PWBs/PCBs
USE Cleaning material without changing el. Characteristics
USE Grounded service equipment, i.e. soldering station
USE ESD clothes such as coat or frock
NO Smoking
NO Drinking
NO Eating
NO Dust
NO Useless Items
NO Normal pressured air for
cleaning modules/displays

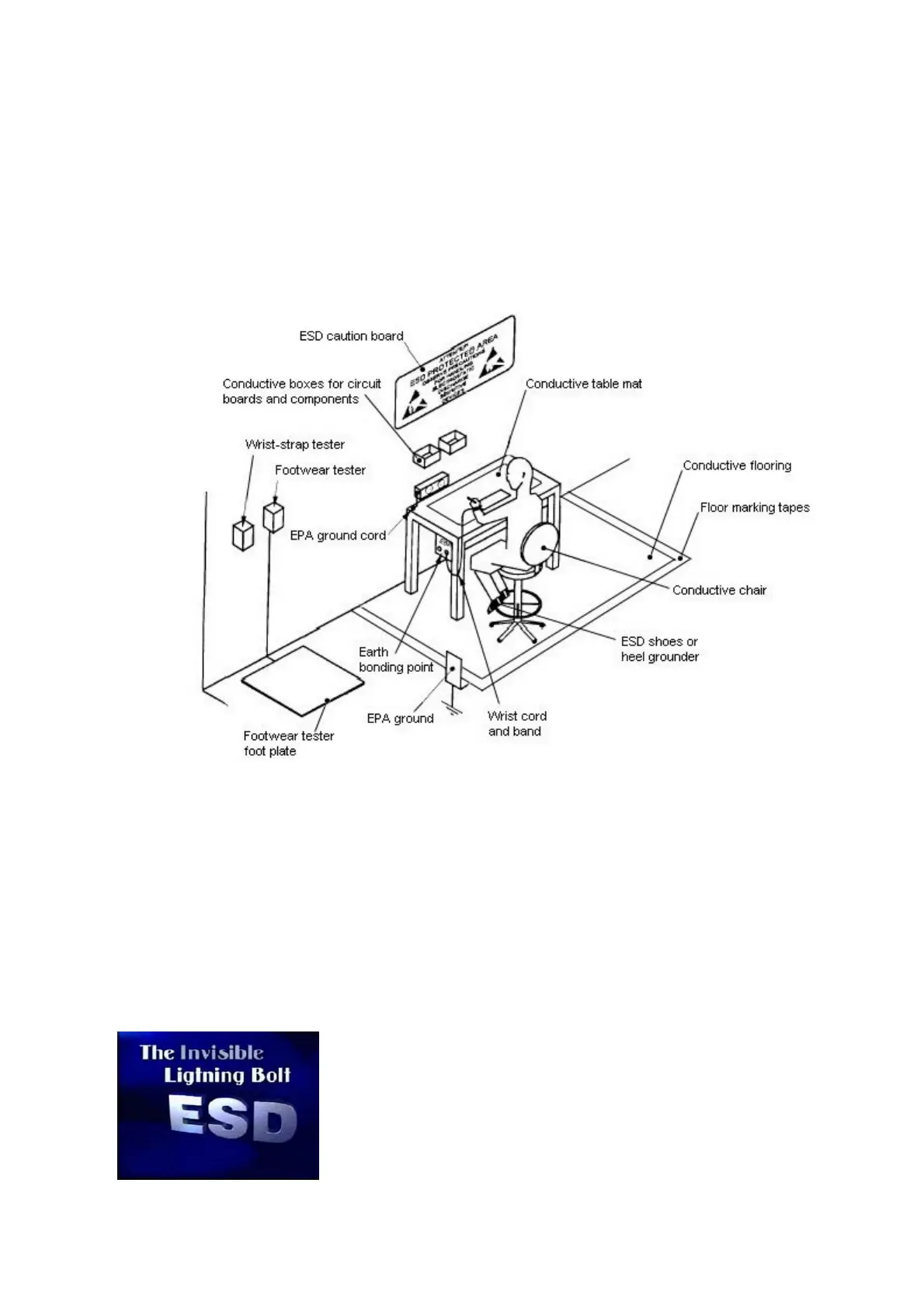

The video covers general issues concerning Electro-Static Discharge (ESD)
source: Nokia Care Point

Nokia 2300 Specifications

General

Network Technology	GSM
2G bands	GSM 900 / 1800
EDGE	No
SIM	Mini-SIM
Status	Discontinued
Display type	Monochrome graphic
Resolution	96 x 65 pixels
Memory Card slot	No
Phonebook	Yes
Call records	10 dialed, 10 received, 10 missed calls
Loudspeaker	No
3.5mm jack	No
Messaging	SMS
Clock	Yes
Alarm	Yes
Java	No
SMS to many	Yes
Calculator	Yes
Stopwatch	Yes
Weight	92 g
Sound Alert types	Vibration
Predictive text input	Yes
Battery type	BL-5C
Dimensions	107 x 46 x 20 mm, 81 cc (4.21 x 1.81 x 0.79 in)
