Nokia 2300 Service Manual

nokia
CONNECTING PEOPLE
PAGE 11 (21) Approved 1.0
Customer Care EMEA DJk
Technical Services Confidential 26.01.2004
Repair Concepts
Service Manual 2300 Level 1&2 Copyright 2003-2004 © Nokia Corporation
7. SW-UPDATE
To use FLS-4S Flash Dongle you have to follow the user guide inside the sales package. Please check always the
latest version of flash software, which is available on Nokia Partner Web Site.

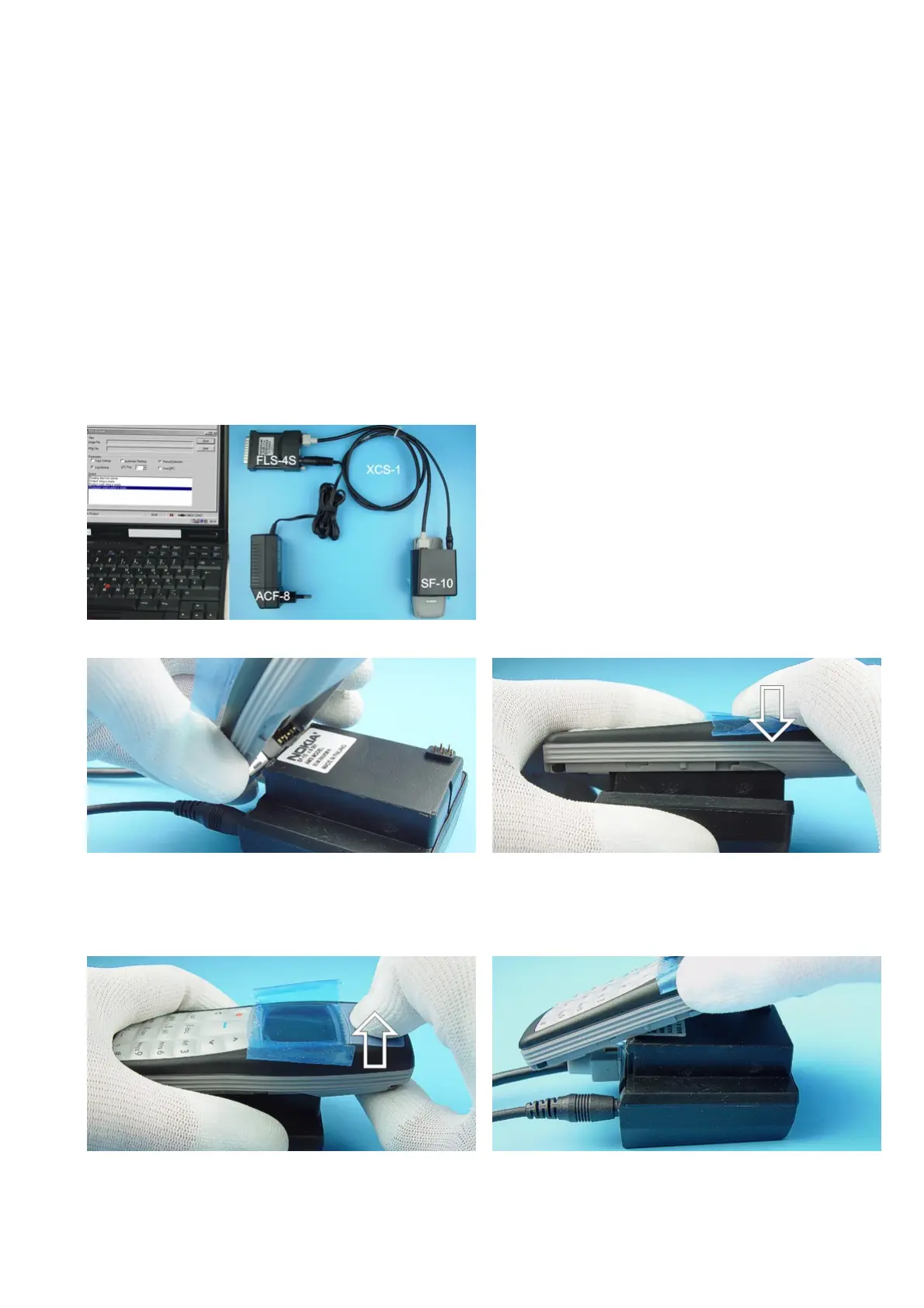

Flash Concept – (Point of Sales)
(Following pictures taken from Nokia 1100 SW-Update)
It is very important to follow this insertion and
removal procedure, otherwise the contact pins of
Flash Adapter will be damaged. Also it has to
make sure that all contacts are clean and in
proper condition.
Note: the Battery Connector in comparison with
other products is located on the bottom side of the
phone. Before starting the flash process, be sure that
SIM Lid is closed. Insert the Flash Adapter SF-10 like a
battery, start at the Battery Connector side.
Now, push down the top side of the Phone, do not use
too much force.
When removing the Flash Adapter always start from
the top side.
Now, take away the unit.
