Nokia 7368 - Procedure; Figure 17 G-240 W-G Indoor ONT Connections

7368 ISAM ONT G-240W-G Product Guide Replace a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 67
6.6 Procedure
Use this procedure to replace a G-240W-G indoor ONT.
1 Deactivate the ONT services at the P-OLT.
If you are using the SLID feature, this step is not required. The ONT and the services can
remain in service (IS).
i Use the RTRV-ONT command to verify the ONT status and th associated services.
Record the serial number or the SLID of the ONT displayed in the command output.
Example:
RTRV-ONT::ONT-1-1-1-1-1;
ii If the ONT is in service, place the ONT in OOS state.
Example:
ED-ONT::ONT-1-1-1-1-1;
2 If used, disable the Wi-Fi service by pressing the WLAN button; see Figure 17 for the location
of the WLAN button.

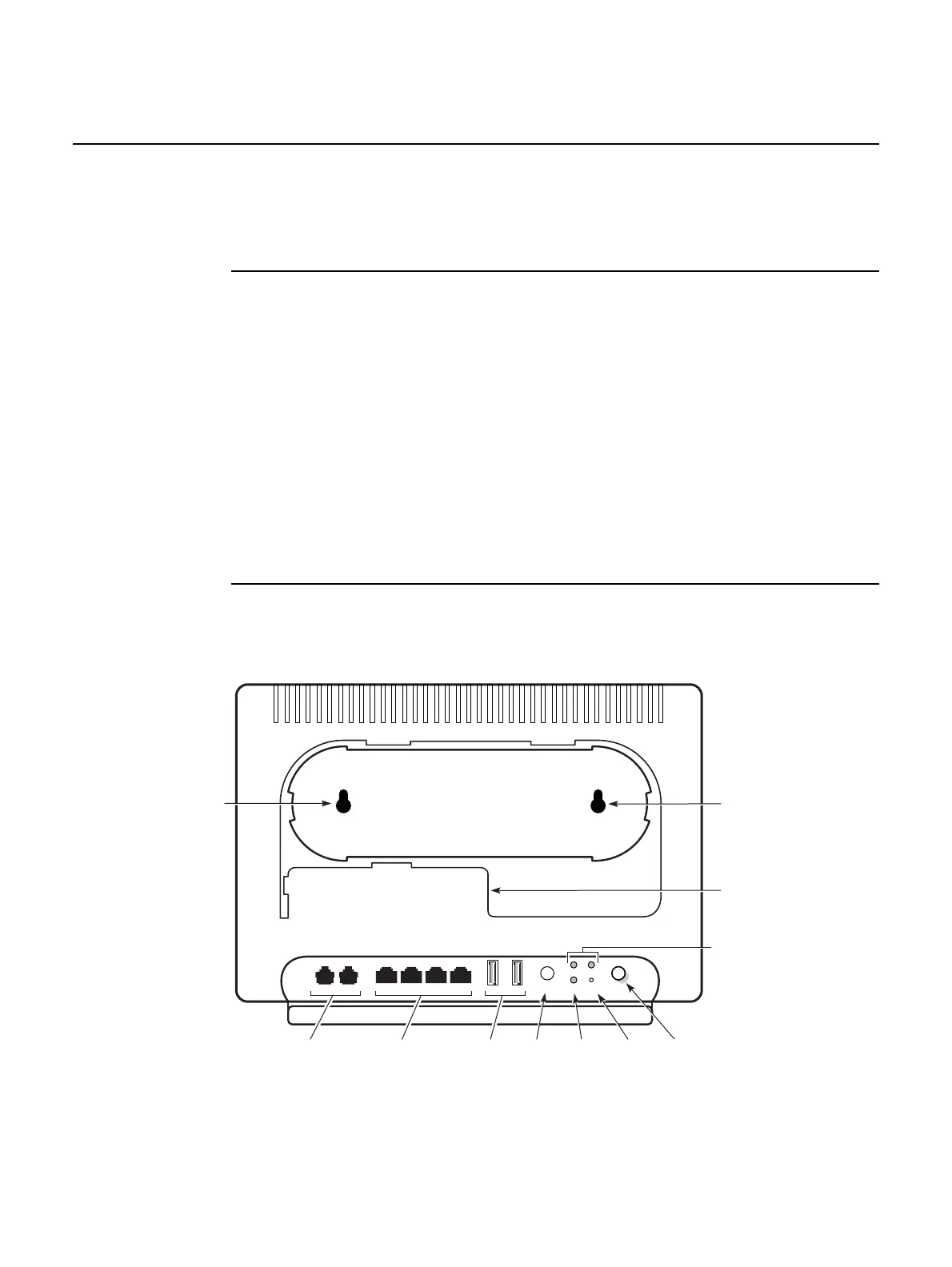

Figure 17 G-240W-G indoor ONT connections
28302
USB2USB1LAN4LAN3LAN2LAN1
TEL1 TEL2
Wall
mounting
hole
Wall
mounting
hole
POTS
ports (2)
(RJ-11)
Ethernet
ports (4)
(RJ-45)
USB
ports (2)
Wi-Fi security
buttons
Reset
button
Power
Fiber optic
port
Wireless
on/off
button
On/off
button
ON/OFFPOWER
LED
RESET
WPS
WLAN
