Installation
28
7750 SR ESA 100G Chassis Installation Guide
Release 20.5
3HE 16094 AAAA TQZZA Issue: 01
Step 3. Align the holes on the inner rails with the chassis as shown in Figure 4.

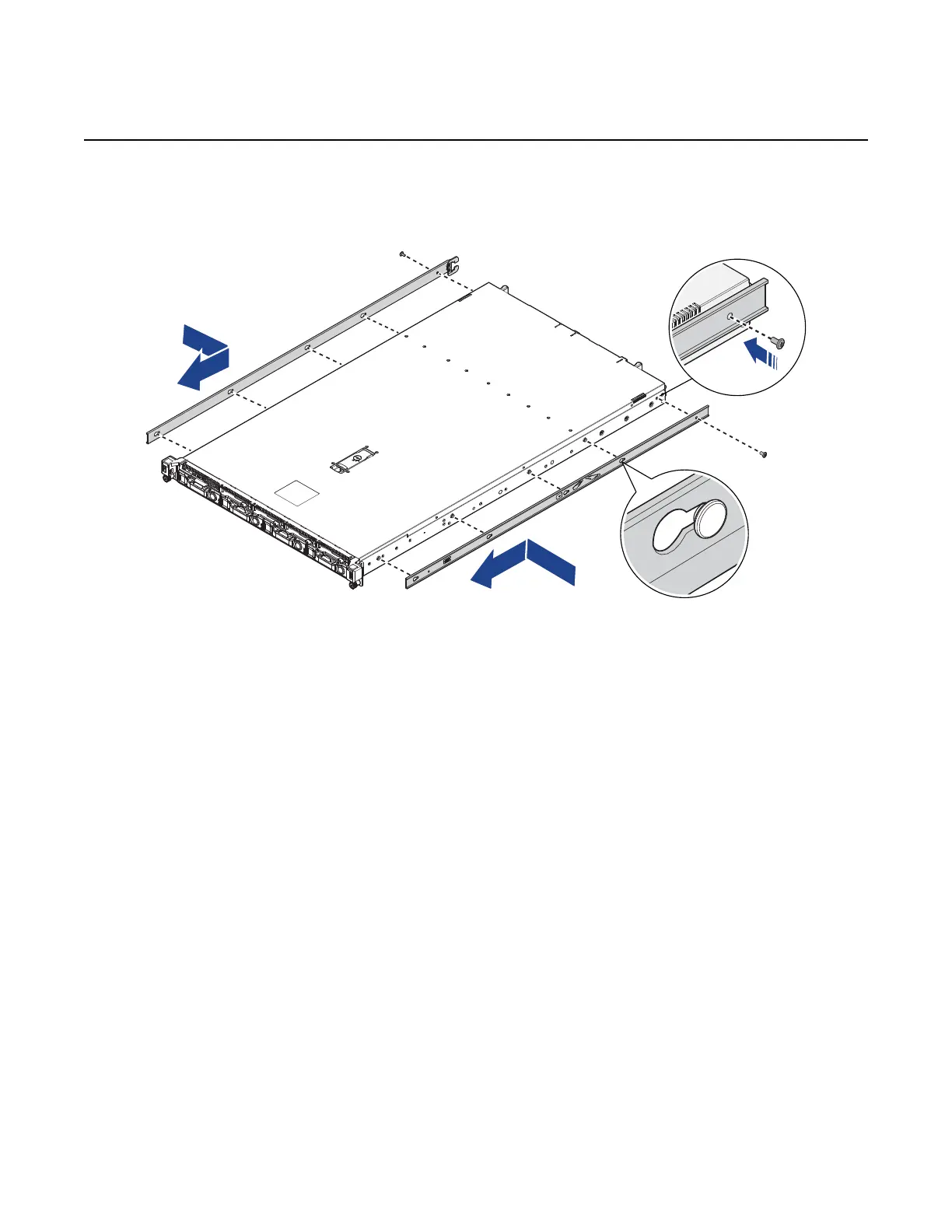

Figure 4 Installing Inner Rails
Step 4. Slide the inner rails forward to lock them in place.
Step 5. Secure the inner rails to the chassis with screws (supplied).
