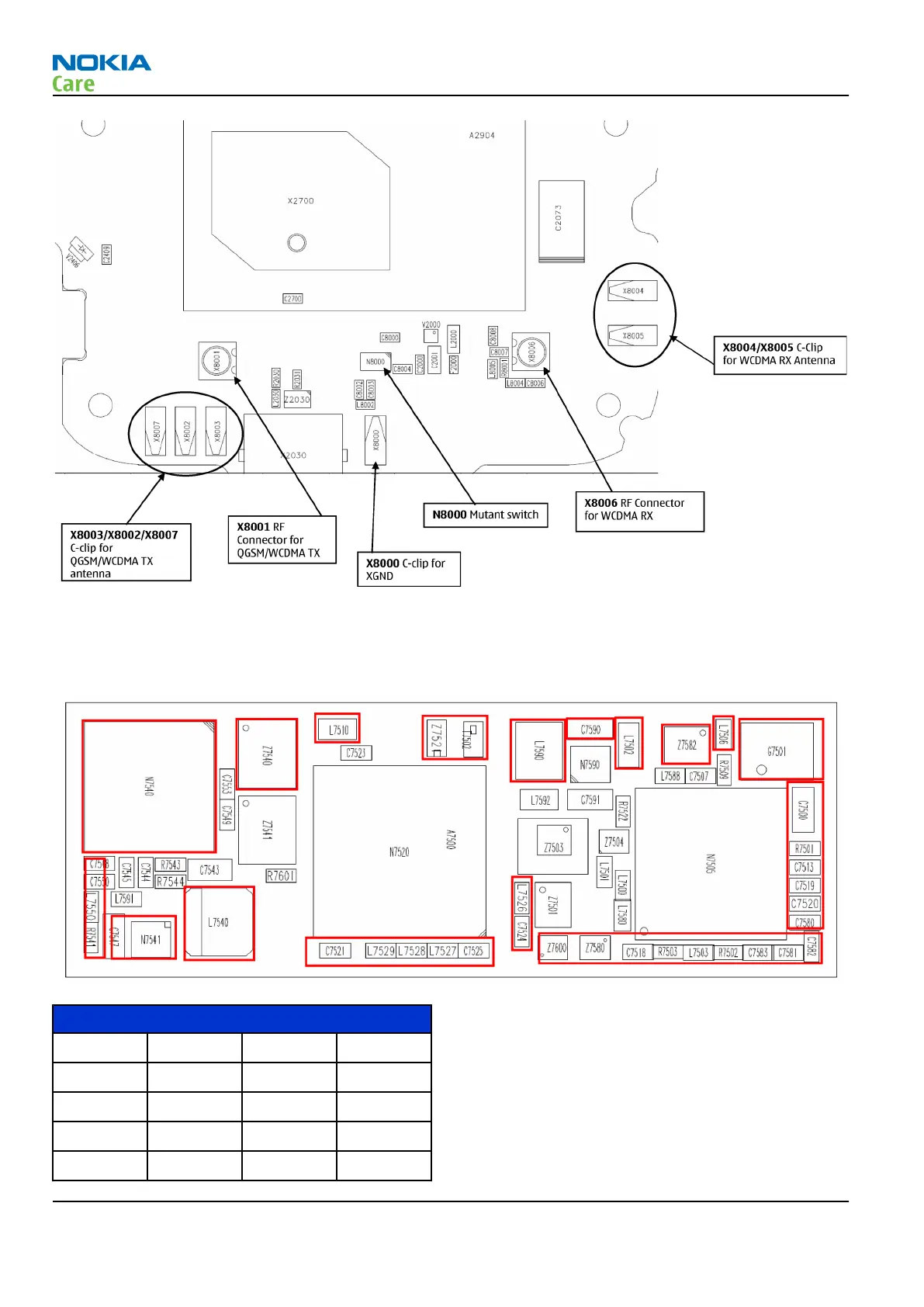

Figure 31 RF key components - bottom
Non-replaceable RF components
The following RF components cannot be replaced because of their location on the PWB:
Non-replaceable RF components
N7540 L7528 L7506 C7583
C7548 L7527 G7501 R7502
C7550 C7525 C7500 L7503
L7550 L7510 R7501 R7503
R7541 Z7521 C7513 C7518
RM-179; RM-223
RF troubleshooting
