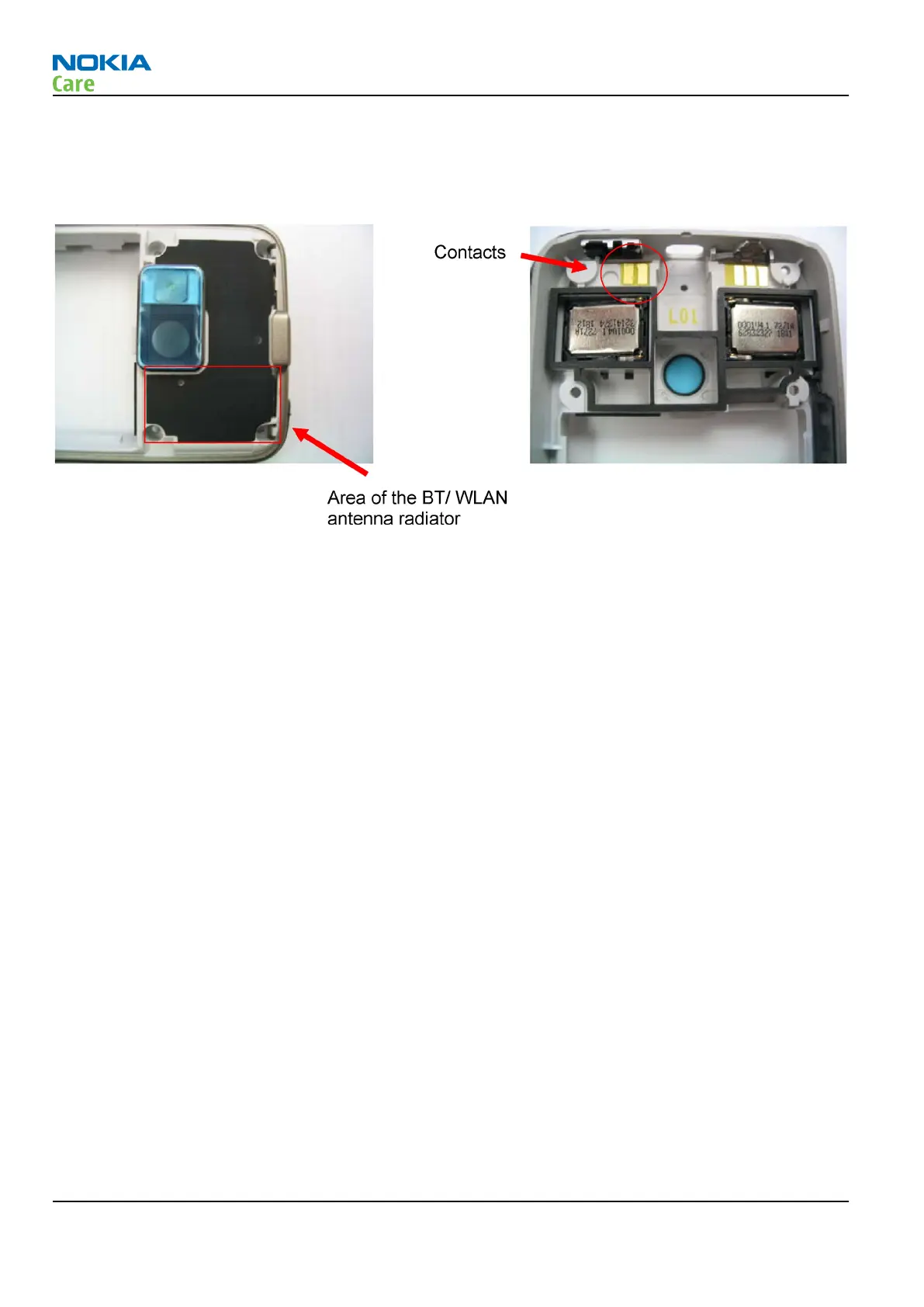

BT/WLAN antenna functionality
The BT/WLAN antenna is functioning normally when the feeds and the GND have proper connection to the
PWB. The radiator is made from a flexid PWB which has to be visually intact.
WCDMA transmitter troubleshooting
Steps
1. Set the phone to local mode.
2. In Phoenix, select Testing→WCDMA→TX control .
3. Use the following settings in the TX control window:
RM-179; RM-223
RF troubleshooting
Page 4 –26 COMPANY CONFIDENTIAL Issue 1
