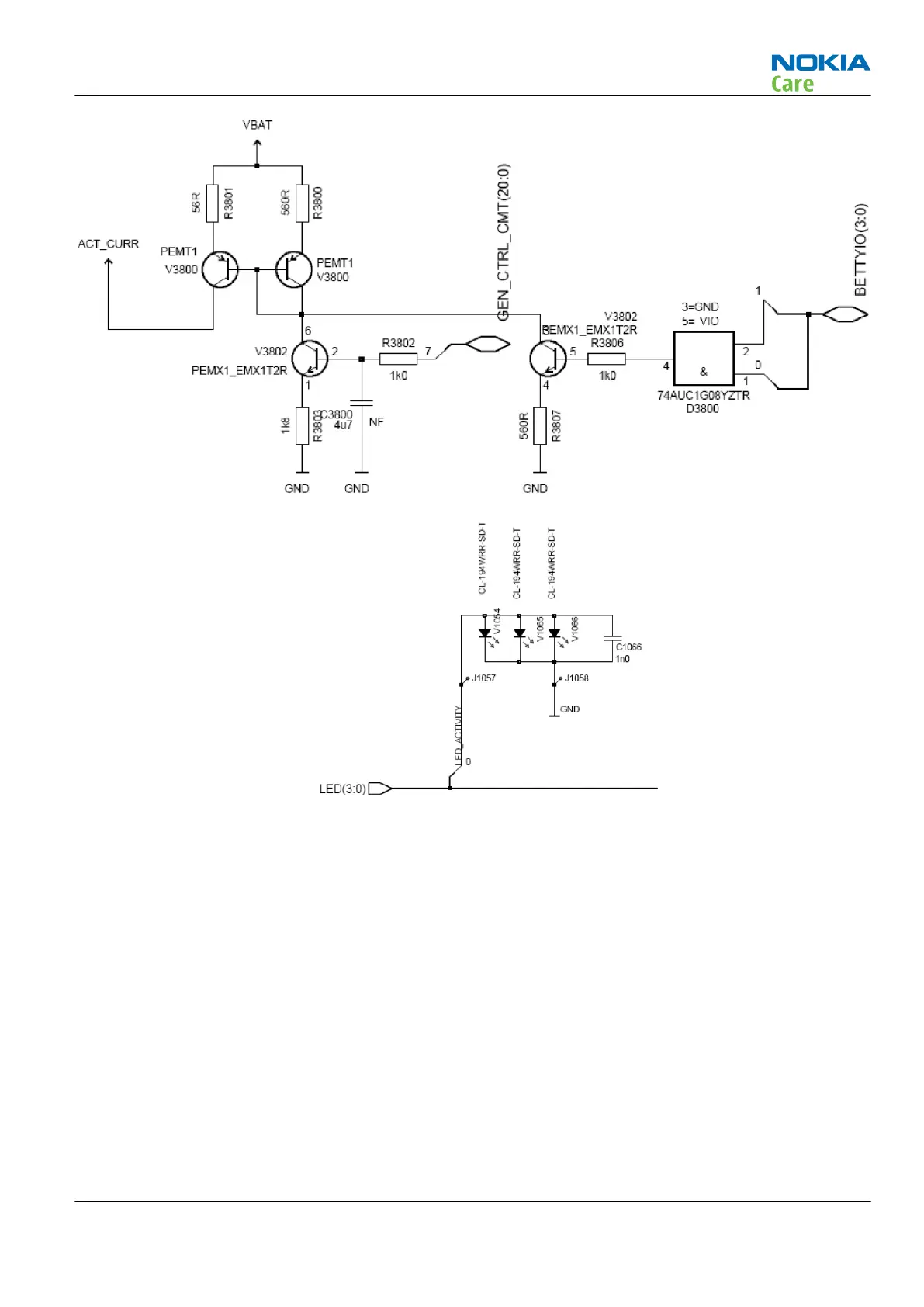

Figure 71 High side driver schematic
Hall sensor
The hall sensor is for the open/closed slider detection. The sensor that is mounted on the engine PWB works
together with a magnet on the slide FPC module.
RM-179; RM-223
System Module and User Interface
Issue 1 COMPANY CONFIDENTIAL Page 6 –31
Copyright © 2007 Nokia. All rights reserved.
