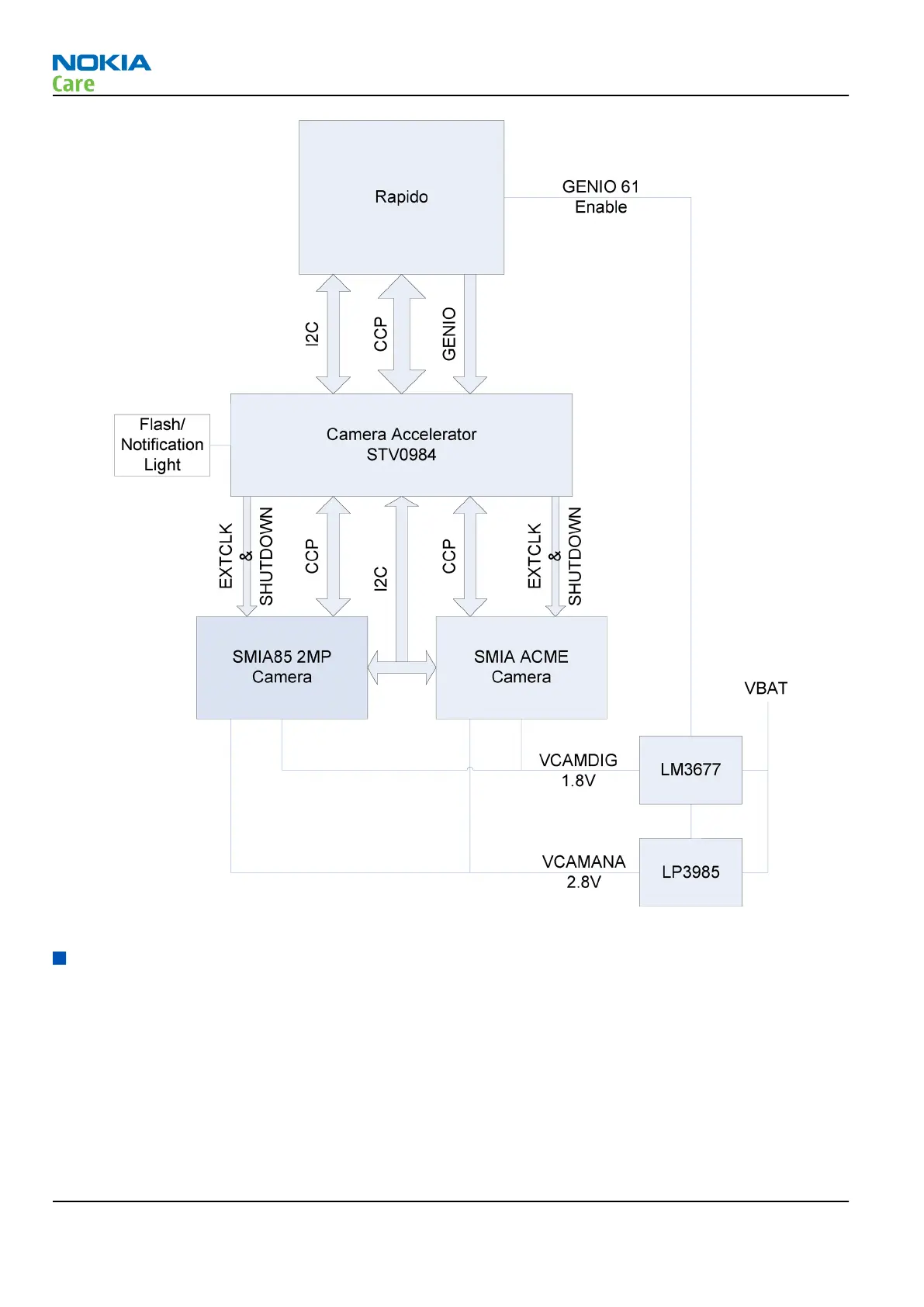

Figure 63 Camera overview
User interface
Display module
This phone has one display:
• Active TFT QVGA display supports up to 16,777,216 colors (320 x 240 pixels, 2.2 inches)
The display is connected to Rapido MeSSI interface. Signal filtering is done via LCD-ASIP components placed
on engine PWB. The MeSSI interface is operated with 8.77 MHz.
RM-179; RM-223
System Module and User Interface
Page 6 –24 COMPANY CONFIDENTIAL Issue 1
