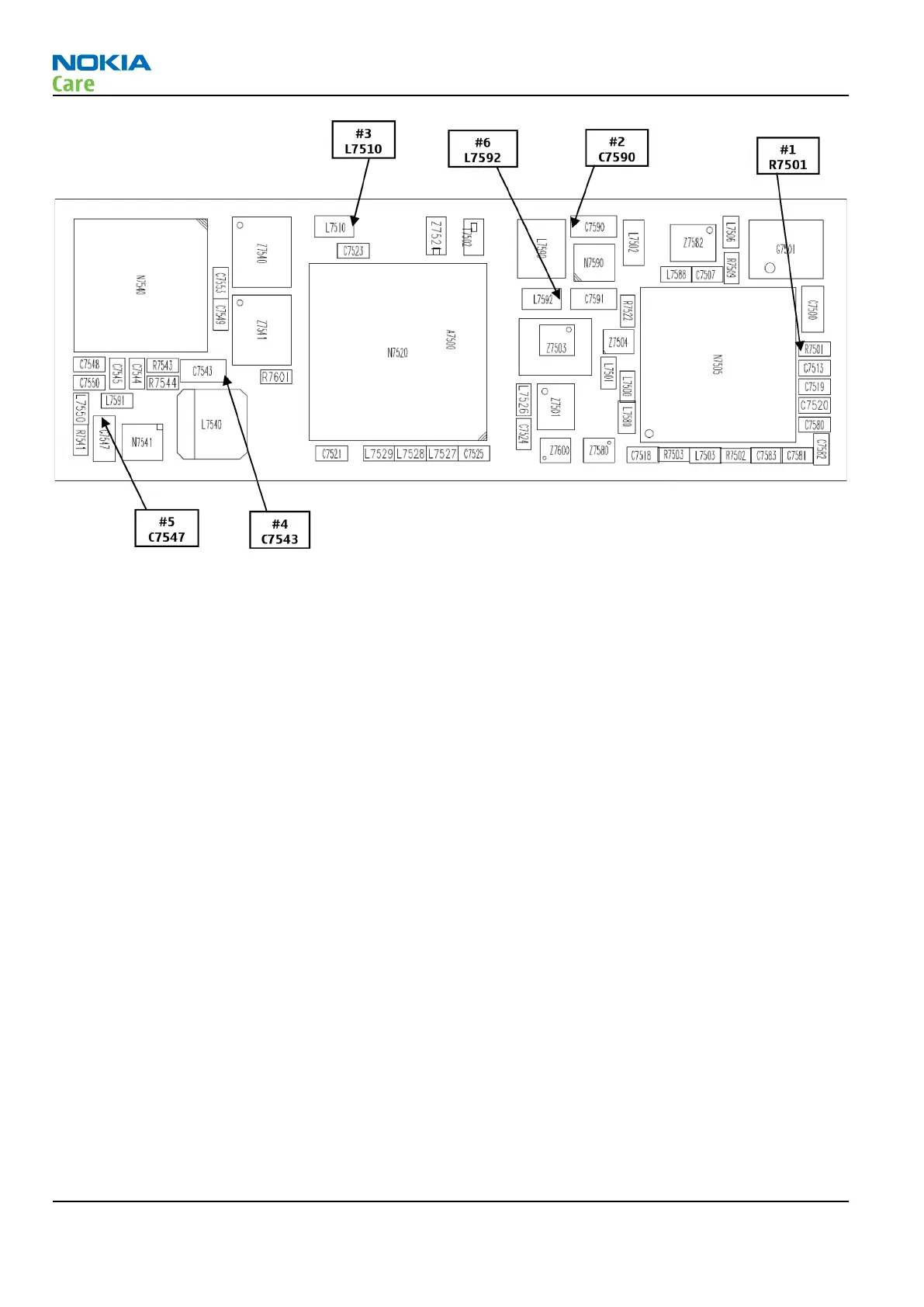

Figure 32 General voltage checking test points
Phoenix self tests
Context
Always start the troubleshooting procedure by running the Phoenix self tests. If a test fails, please follow the
diagram below.
If the phone is dead and you cannot perform the self tests, go to
Dead or jammed device troubleshooting.
in the baseband troubleshooting section.
RM-179; RM-223
RF troubleshooting
